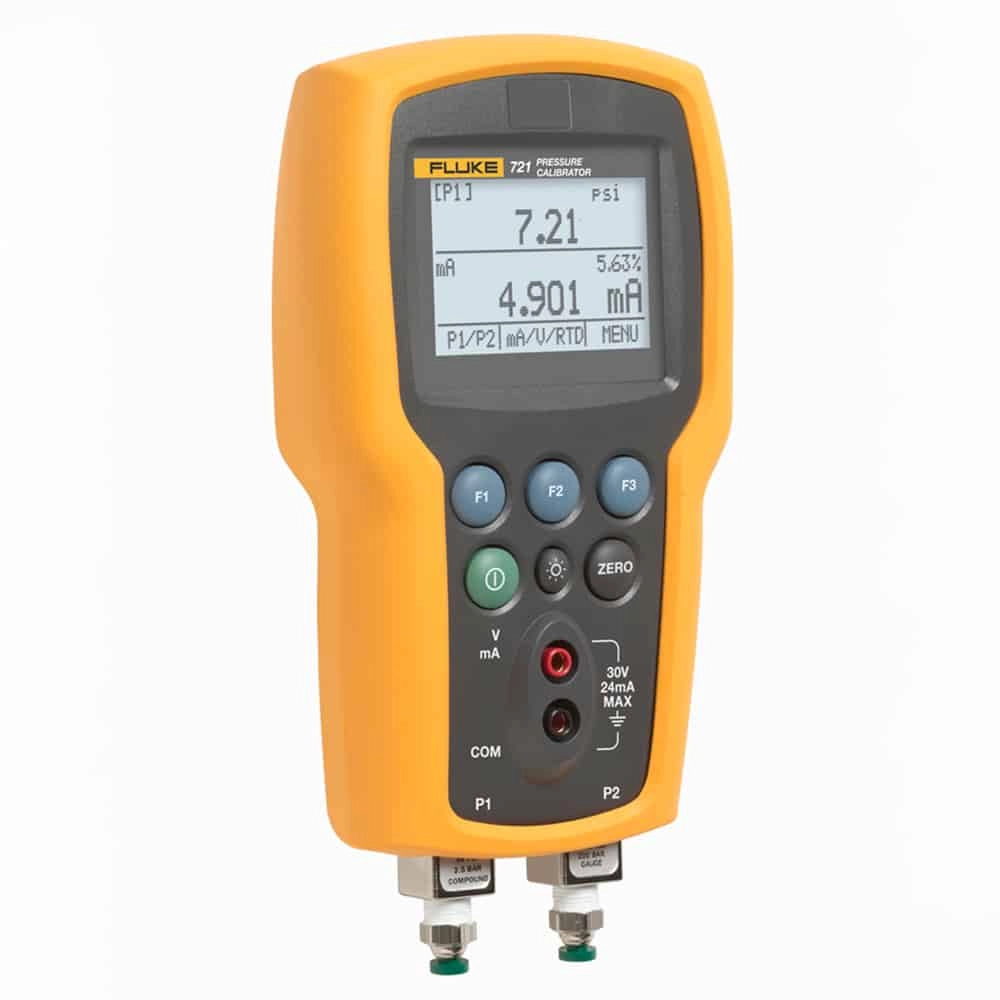

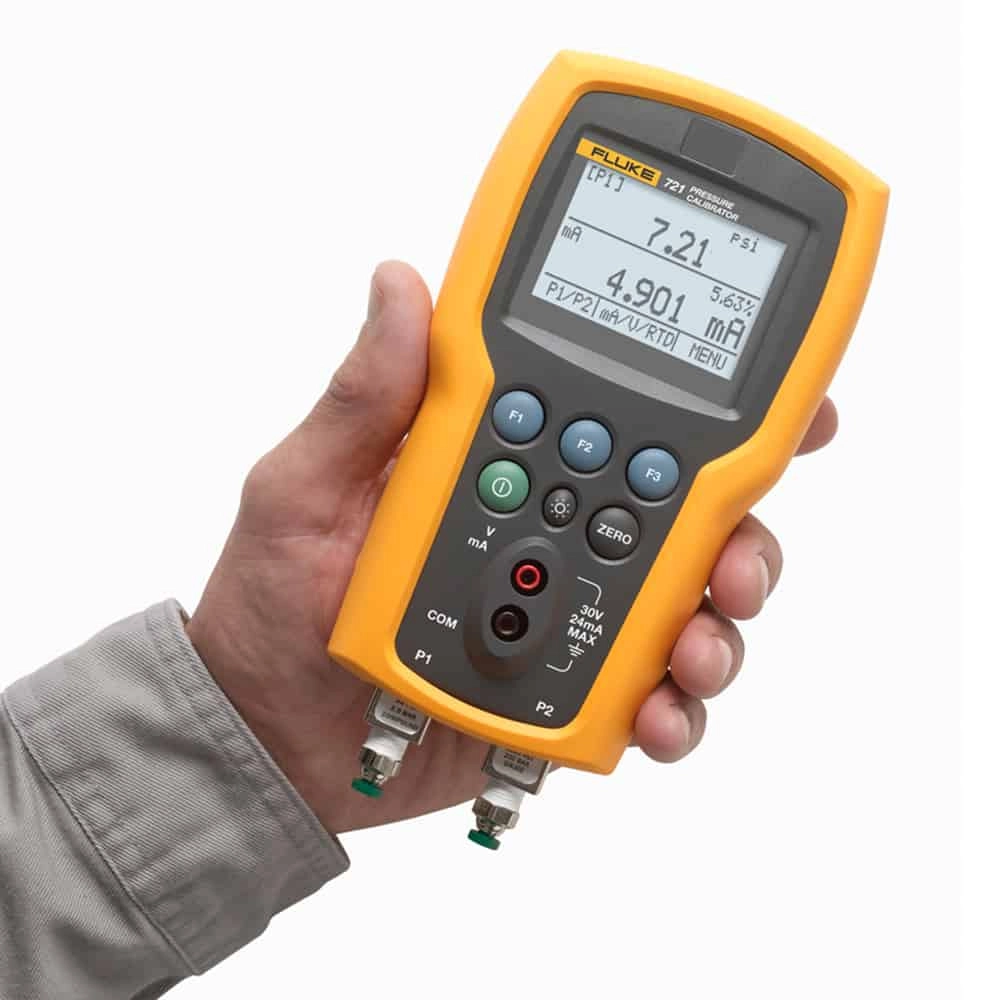

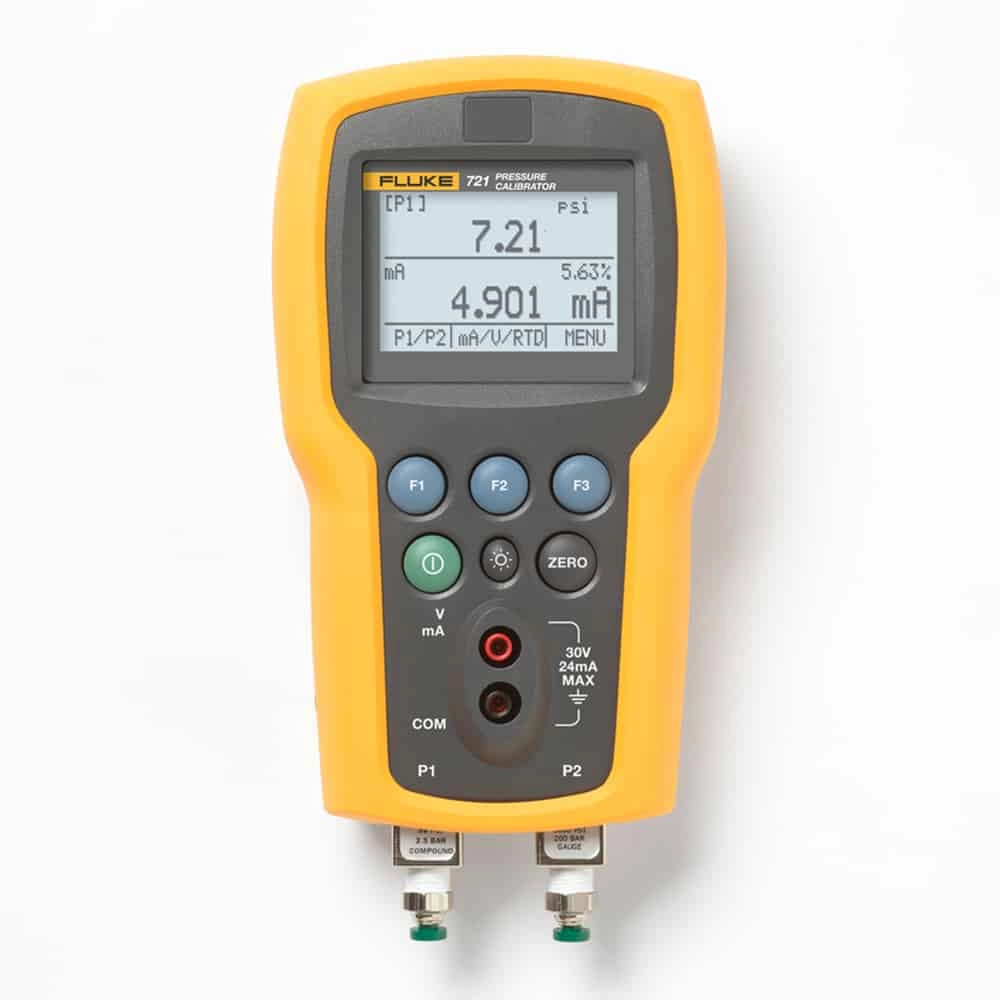

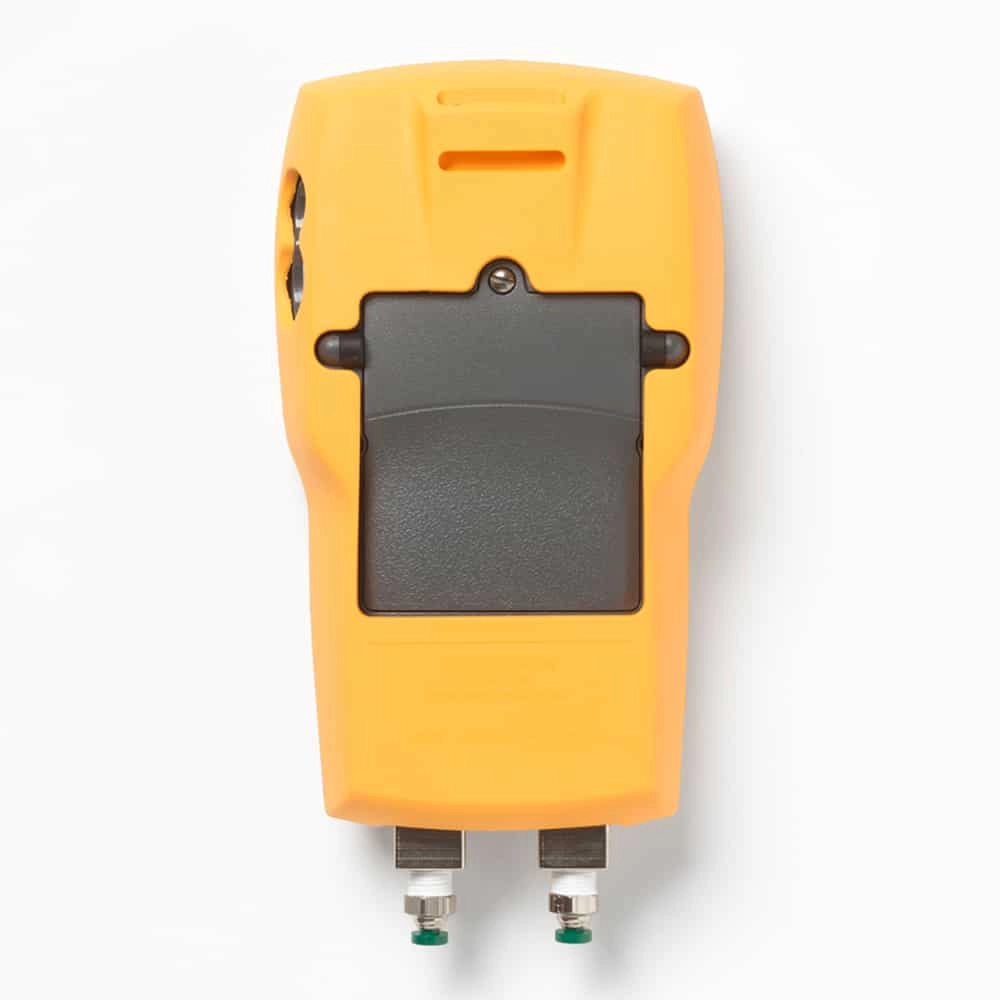

Fluke 721-1601 Dual Sensor Pressure Calibrator, -14 to 16 PSI (Low), -12 to 100 PSI (High)

Features

• Precision Pressure Calibrator with dual isolated sensors for gas custody transfer applications. Ranges: 16 psi (low) 100 psi (high).
• Dual isolated pressure sensors
• Dual Sensor Pressure Calibrator; 16 PSIG; 100 PSIG
• Ideal for gas flow calibration (custody transfer) applications
• Measures up to 30 V DC, checks 24 V loop power supplies
• Extends pressure measurement range with connection to external 750P
• Provides a large backlit graphic display that can show up to three inputs simultaneously
• Stores five instrument setups for recall

Technical Information

• Resolution0.001 PSI (Low), 0.01 PSI (High)
• Accuracy0.025% of full scale
• Instrument setup recallLast used on power-up
• EnvironmentalOperating temperature -10 °C to +50 °C
• Altitude2,000 meters
• Ingress protectionIP-40
• Power requirements6.0 v dc
• Battery life>35 hours, typical usage
• Dimentions (HxWxD)7.9" X 4.3" X 2.3" (20 cm X 11 cm X 5.8 cm)
• Weight03539 kg (1 lb 3 oz)

Items Included

• Range: -14 to 16 PSI (Low), -12 to 100 PSI (High)

Downloads

DatasheetDatasheet
