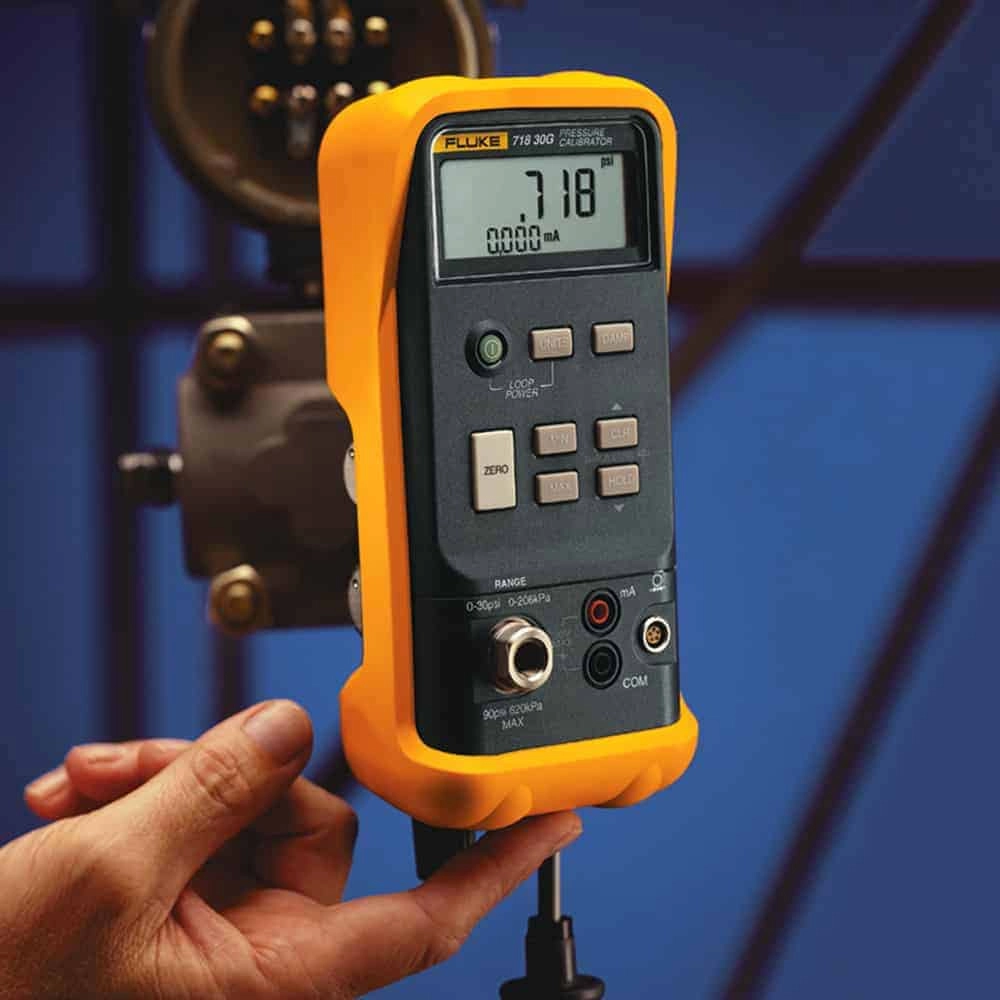

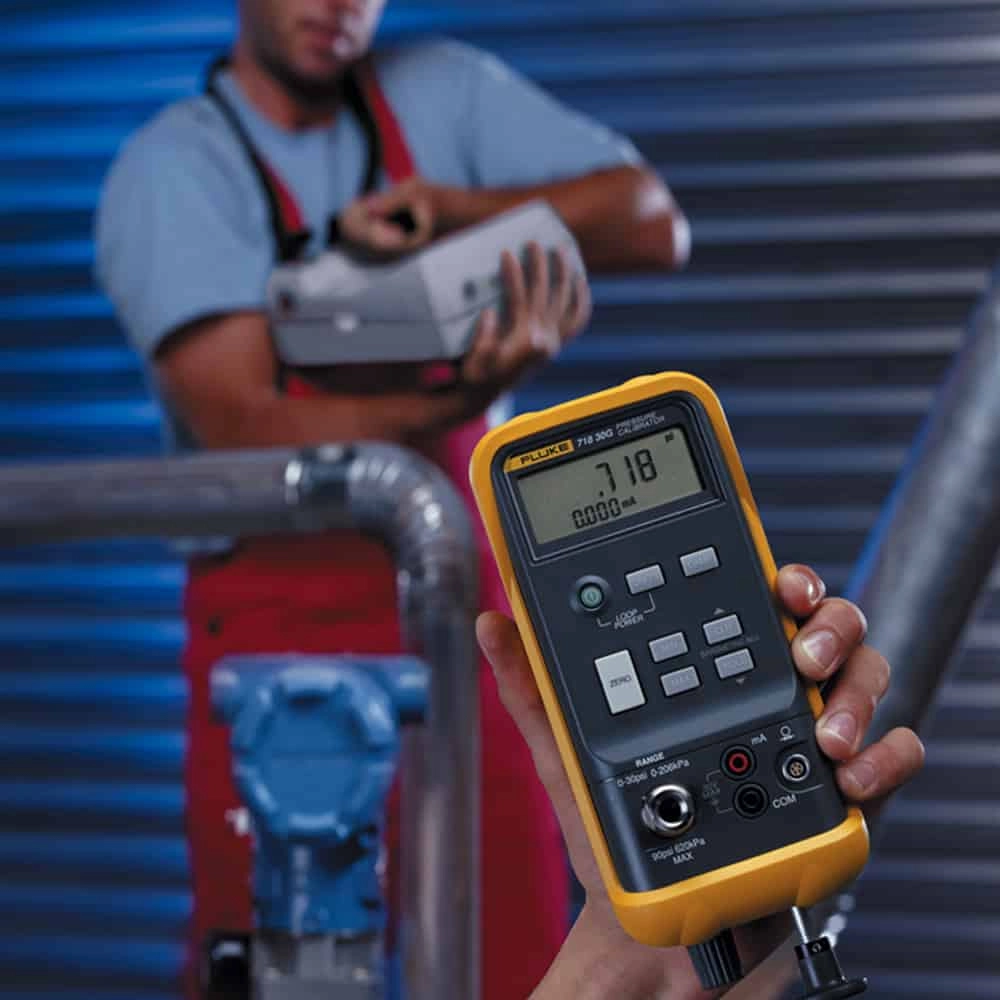

Fluke 718 30G Pressure Calibrator, -12 to 30 PSI, 850 mBar To 2 Bar

Features

• Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device Integrated pump is easily cleaned when accidently exposed to fluids that reduces cost of ownership and repairs and enables servicing the pump in the field Error % calculation for quicker pass/fail decision making in the field Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage Min/Max/Hold to capture changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
• Built-in pressure / vacuum hand pump; with vernier and bleed valve
• New switch test function captures set; reset and dead band.
• Min/Max/Hold to capture changing measurements
• Switch test feature for quicker and more accurate pressure switch testing
• New 1 and 300 PSI pressure ranges mean fewer extra tools required
• 1, 30, 100 & 300 PSI ranges now available

Technical Information

• Range-12 psi to 30 psi, (-850 mbar to 2 bar, -85 to 206.84 kPa)
• Resolution0.001 psi, 0.1 mbar, 0.01 kPa
• Accuracy0.05% of full scale
• Over pressure5x Full Scale
• Loop Power24V DC
• Maximum voltage30 volts (non-operating)
• Temperature-40°C to 60°C
• Operating temperature-10°C to 55°C
• Relative humidity95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)
• VibrationRandom, 2 g, 5 Hz – 500 Hz
• Size216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in)

Items Included

• Protective Yellow Holster with test lead storage
• Instructions Sheet (14 languages)
• Single 9V alkaline battery
• Test Leads and Alligator Clips
• NIST- traceable calibration report and data

Downloads

Datasheet
