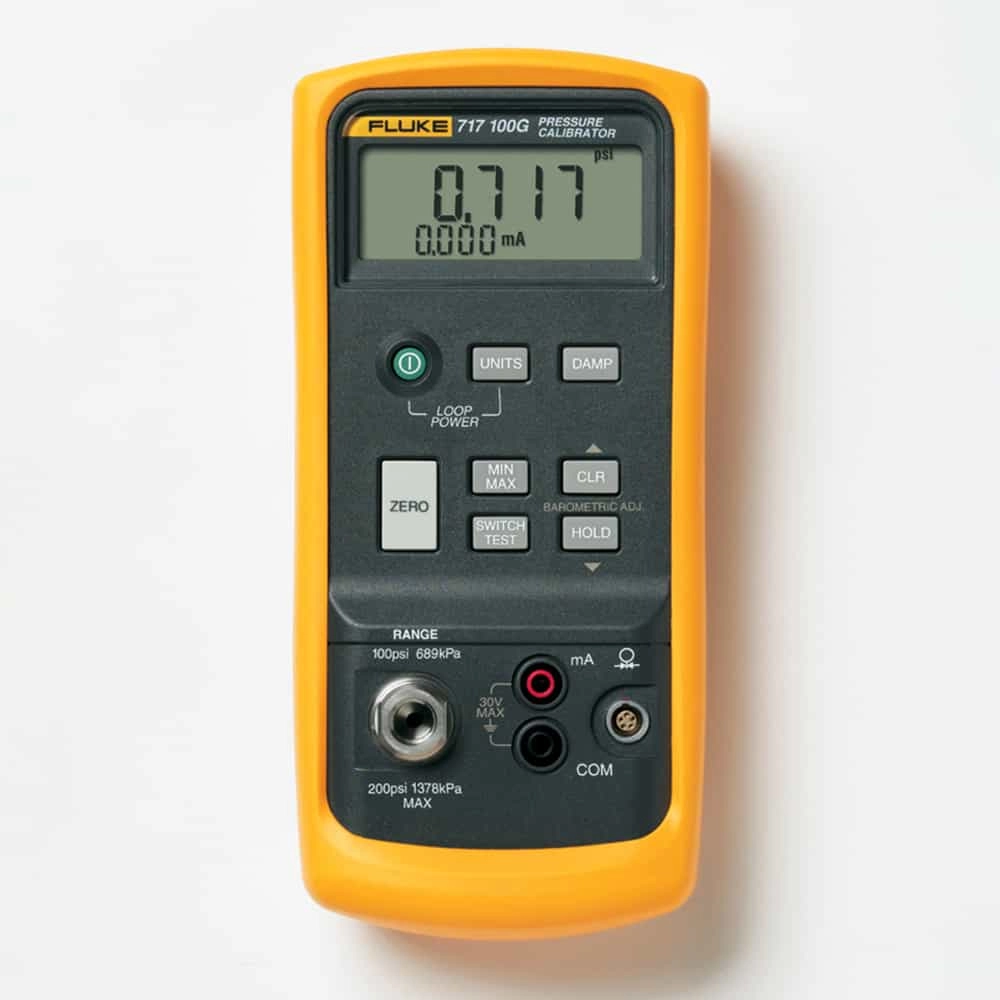

Fluke 717 100G Pressure Calibrator, -12 To 100 PSI, -850 mBar to 7 Bar

Features

• Measure pressure and vacuum to 0.05% of full scale with the internal 100 psig sensor (100G Model)
• 1/8 NPT pressure fitting
• Compatible with non-corrosive gasses and liquids
• Measure pressure -85 to 689.49 kPa using one of the Fluke 750 Series Pressure Modules
• Compatible with non-corrosive Gases and liquids
• Zero, min, max, and hold functions
• Calibrate P/I instruments with simultaneous pressure and current measurement
• Error% calculation of mA measurements for quick pass-fail decisions
• Long lasting battery life

Technical Information

• Range-12 to 100 PSI, (-850 mbar to 7 bar, -83 to 689.48 kPa)
• Resolution0.01 psi, 0.1 mbar, 0.01 kPa
• Over Pressure2 X full scale
• Loop Power Range24 V dc
• DisplayClear 5 digit LCD
• Operating Temperature-10 to 55 °C
• Operating Altitude3,000 M max
• Size201 mm L x 98 mm W x 52 mm (7.93in. L x 3.86in. W X 2.06in.)
• Weight22 oz, approximately 600G with holster

Items Included

• Protective Yellow Holster with test lead storage
• Instructions Sheet (14 languages)
• Single 9V alkaline battery
• Test Leads and Alligator Clips
• NIST- traceable calibration report and data

Downloads

Datasheet
