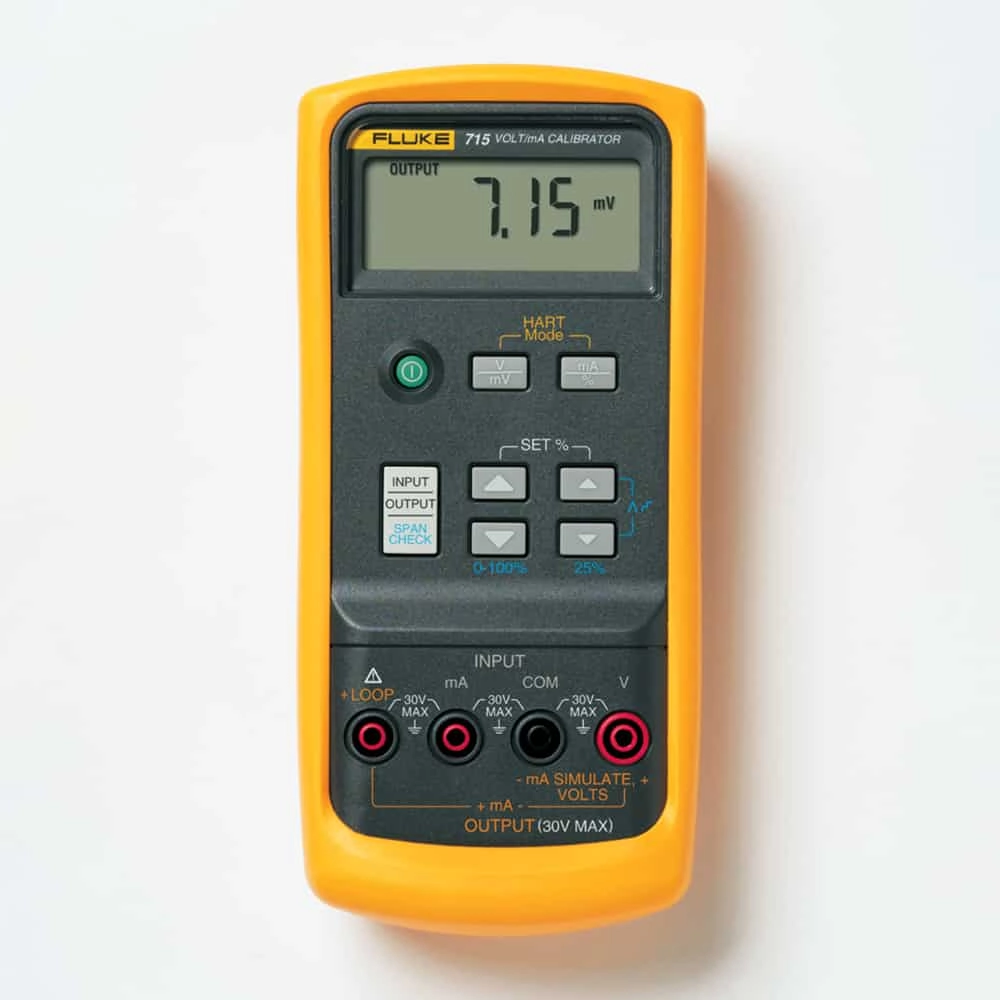

Fluke 715 Loop Calibrator, 0 to 24mA, 0 to 200mV/20V

Features

• Measure loop current (0-20 mA; 4-20 mA) signals with very high accuracy of 0.015% and 1 mA resolution
• Measure voltage output process signals from PLCs; transmitters
• Source or simulate 24 mA loop current
• Source voltage to 100 mV or 10V
• Provides step and linear ramp output function
• Features configurable zero and span settings
• Provides 24 V loop supply with simultaneous current measurement
• Features enhanced voltage and current measure and source accuracy
• Includes a 250-ohm HART resistor with loop power

Technical Information

• Voltage Measurement0 to 200 mV / 20V
• Current Measurement0 to 24 mA
• Loop power24 V DC
• Operating temperature-10°C to 55°C
• Storage temperature-40°C to 60°C
• Humidity (without condensation)95% (10°C to 30°C)
• Operating altitude3,000 m max
• Size187 x 87 x 32 mm (7.93 x 3.86 x 2.06 in)

Items Included

• Protective yellow holster with test lead storage
• Instructions sheet (14 languages)
• Single 9V alkaline battery
• Test leads and alligator clips
• NIST- traceable calibration report and data
