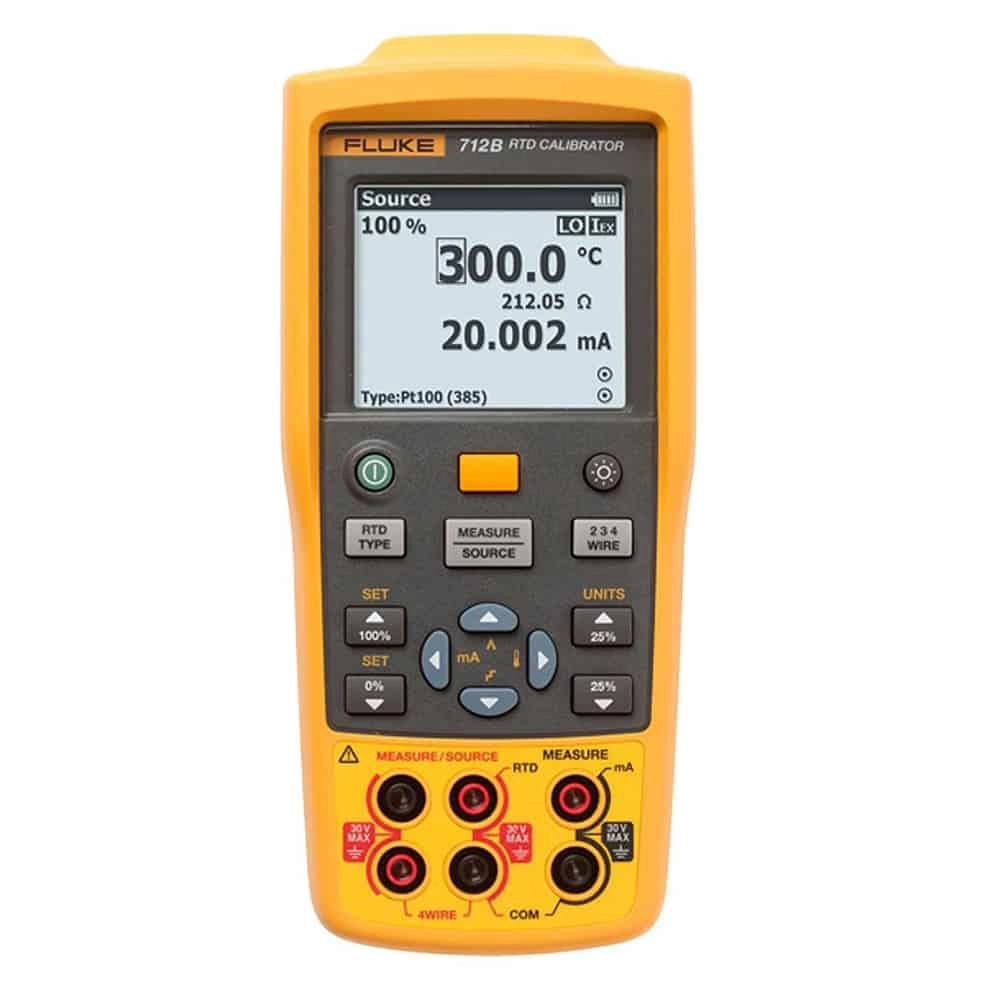

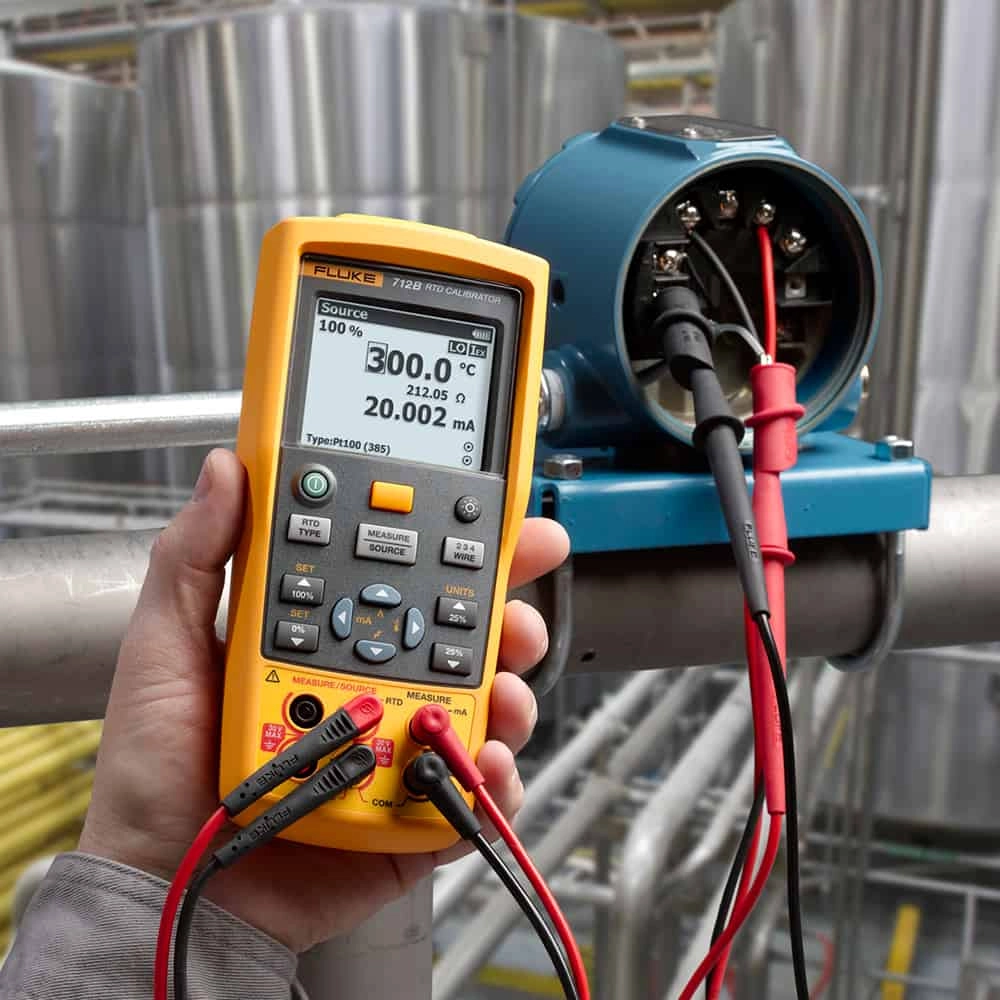

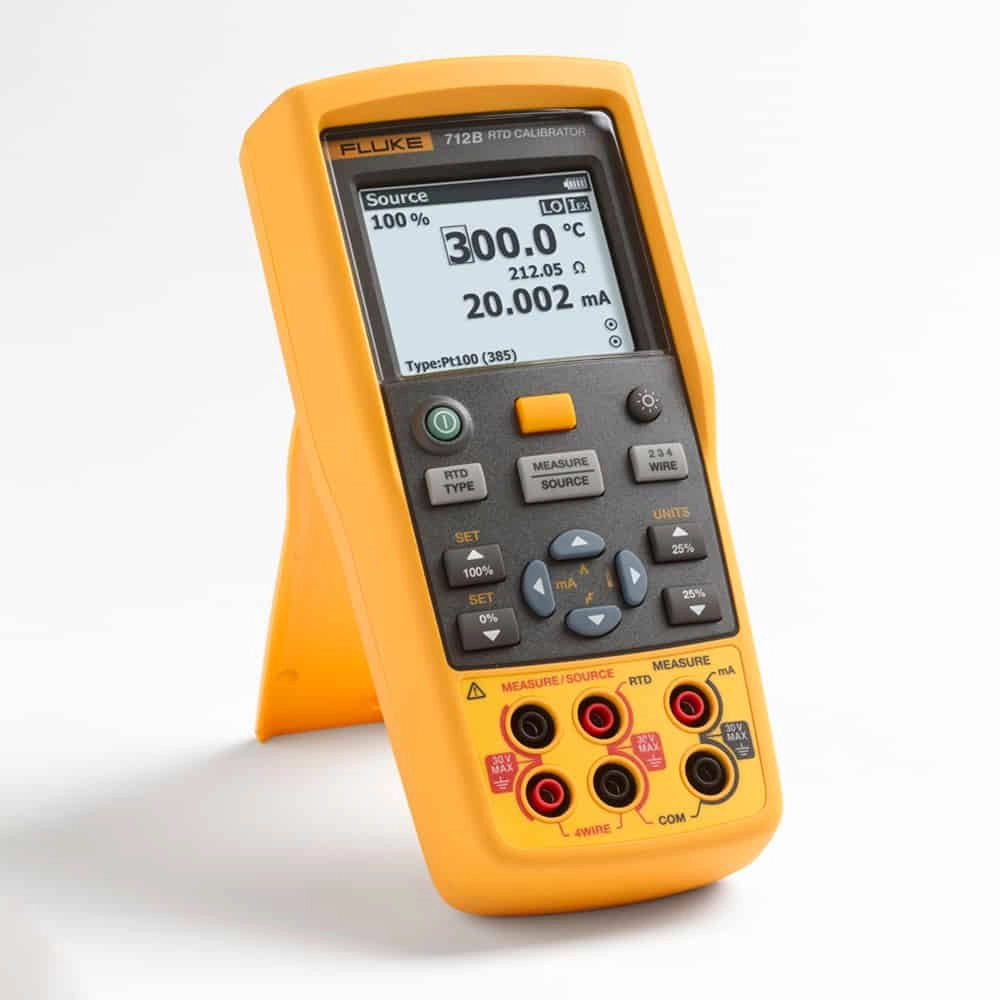

Fluke 712B RTD Temperature Calibrator, 13 RTD Types

Features

• The 712B can measure and simulate (13) different RTD types and resistance
• Measure 4 to 20 mA signals while simultaneously sourcing a temperature signal
• Hanging tool designed in and included with every unit
• Configurable 0% and 100% source settings for quick 25% linearity checks
• Comes with a magnetic hanging tool designed in for convenient hands-free operation
• Dual inputs and backlit display for easy interpretation of measurements
• Remembers power down settings to easily restart tests when powered up
• Provides linear ramp and 25% step auto ramp based on 0% and 100% settings
• Provides one-year and two-year specifications and traceable certification of calibration

Technical Information

• Current Measurement0 to 24mA
• Resistance Measurement0 to 4000Ω
• Maximum voltage applied between any terminal and earth ground or between any two terminals30 V
• Operating temperature-10°C to 50°C
• Storage temperature-30°C to 60°C
• Relative humidity (% RH operating without condensation)Non condensing 90% (10°C to 30°C) 75% (30°C to 40°C) 45% (40°C to 50°C) (Without condensation)
• Vibration requirementsMIL-T-28800E, Class 2

Items Included

• Magnetic hanging tool Batteries
• Manual
• Traceable calibration certificate
• Test Lead
