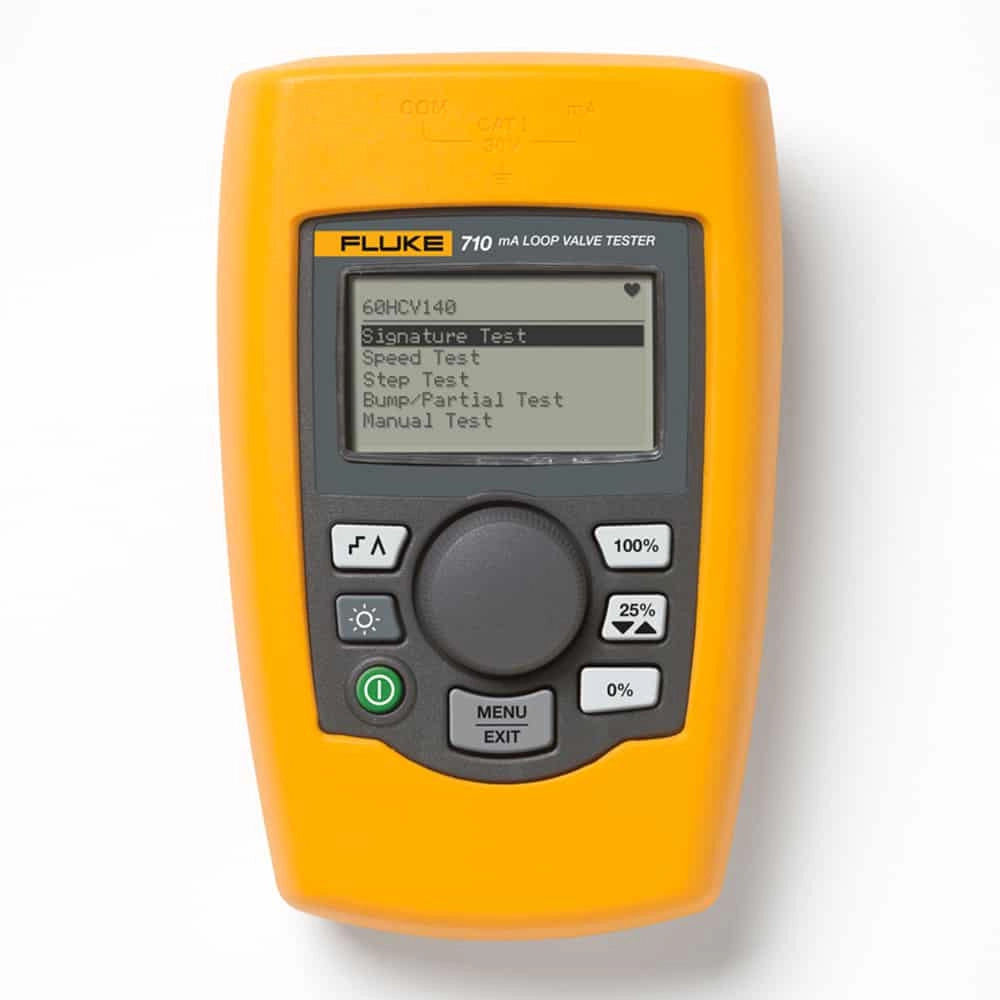

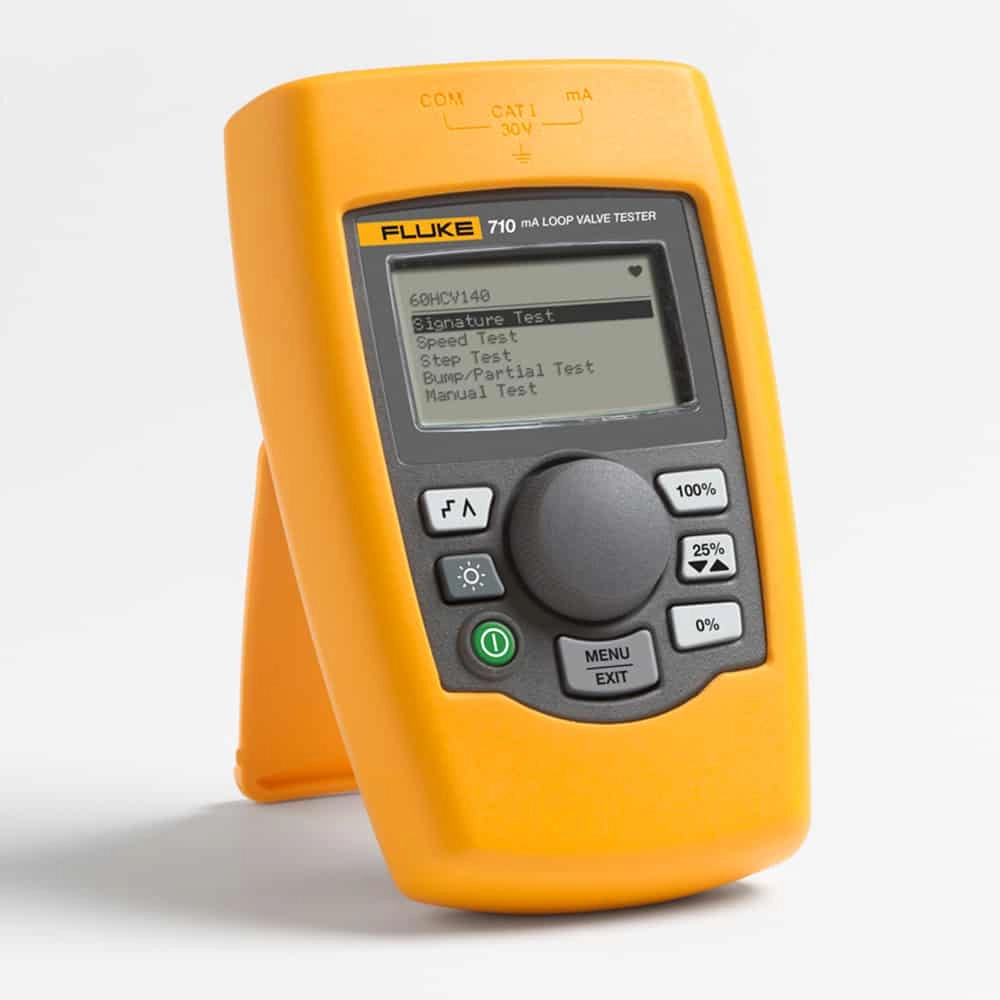

Fluke 710 Milliamp Loop Valve Tester, 0 to 24mA, 0 to 30V
Model # 710Key Features
?
Question about this product?
Features
- Key valve testing functions include pre-configured valve signature test, speed test, step test, manual test, and bump/partial stroke test
- Key mA loop calibrator functions include mA source, mA simulate, mA read, mA read/loop power, and volts read
- ValveTrackª Software enables upload to a PC for further in-depth analysis of valve measurements that are logged and recorded to memory
- Manual testing; manually change the mA signal and view the HART position and pressure variable information
- Full range ramping of the mA signal from 4 to 20 to 4 mA while recording the 0-100-0% position, or the pressures applied that move the valve from 0-100-0%
- Stepping the mA signal on the input to the valve in steps and evaluating the valves response to the mA input changes
- Speed tests to determine how fast the valve can open or close
- Bump and partial stroke tests that help test valves over a portion of their range so they can be tested in a live process
Technical Information
- FunctionsmA source, mA simulate, mA read, mA read/loop power, and volts read.
- Current MeasurementmA (0 to 24 mA)
- Voltage Measurement0 to 30 V DC
- Resolution1 µA on mA ranges and 1 mV on voltage range
- Accuracy0.01% ± 2 counts
- Operating temperature range-10°C to 55°C (14°F to 131°F)
- Humidity range10 to 95% non-condensing
- Stability20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
- Display128 x 64 pixels, LCD Graphic w/backlight, .34 high digits
- Dimensions (L x W x D)15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
Items Included
- Stackable test lead set
- Extended tooth alligator clip set
- TP220 test probes
- AC280 SureGrip™ hook clips
- Lemo to USB upload/download cable
- ValveTrack™ software (free download)
- Softcase
- Six AAA batteries (installed)
- 709/709H/710 Product manual CD-ROM
- 709/709H/710 Quick reference guide
- 709/709H/710 Safety information
