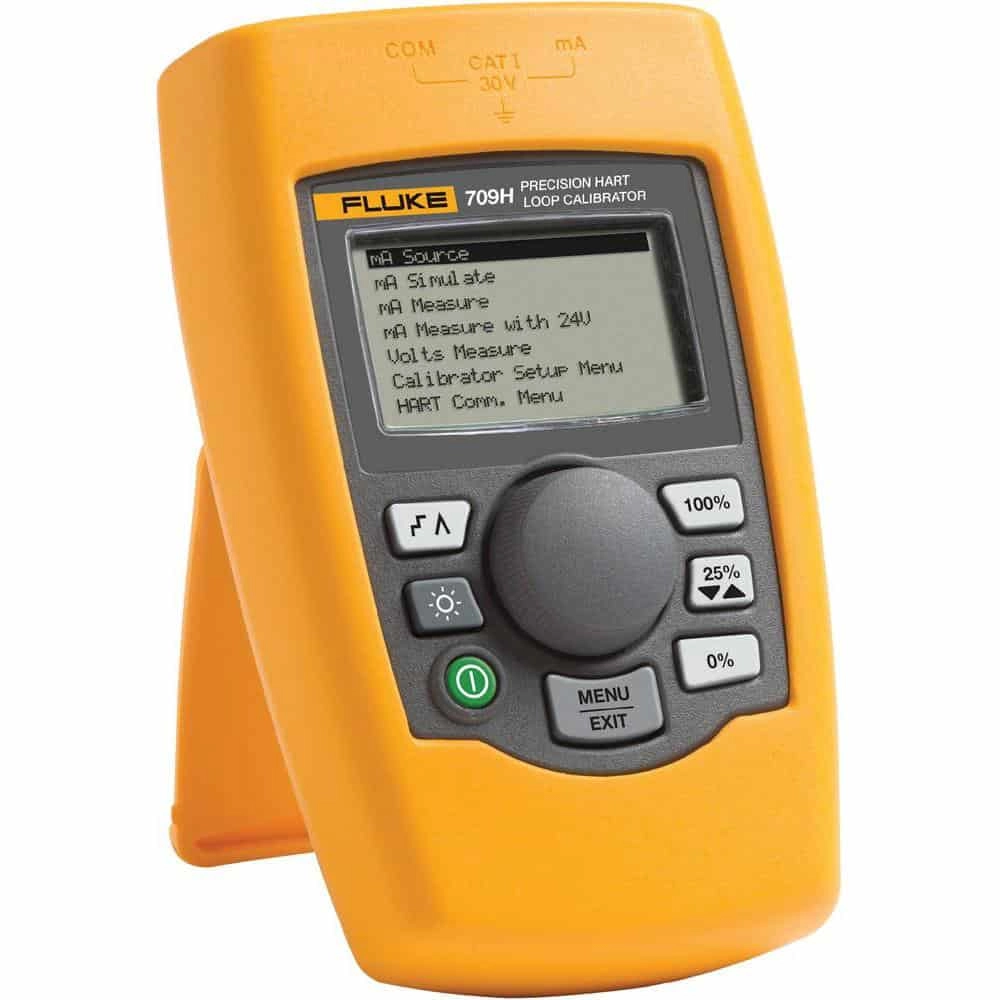

Fluke 709H Precision mA Loop Calibrator with HART Communications, 0 to 24mA

Features

• Best-in-class accuracy at 0.01% reading
• Small rugged design operates on (6) standard AAA batteries
• Intuitive user interface with Quick-Set knob for fast setup; easy use
• Built in selectable 250 resistor for HART communication
• Fast transfer of calibration data:The optional 709H/Track software/cable can document the parameters of all the HART transmitters in your plant, in either (.csv) or (.txt) format
• Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges
• Quickly transfers calibration data for documentation in either (.csv) or (.txt) format with optional 709H/Track software/cable
• Offers selectable capture interval from 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions.
• Requires only simple two wire connection for all measurements

Technical Information

• FunctionsmA source, mA simulate, mA read, mA read/loop power, and volts read.
• Current Measurement0 to 24 mA
• Voltage Measurement0 to 30V
• Resolution1 µA on mA ranges and 1 mV on voltage range
• Accuracy0.01% ± 2 counts, all ranges (@23° ± 5°C)
• Operating temperature-10°C to 55°C (14°F to 131°F)
• Stability20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
• Display128 x 64 pixels, LCD Graphic w/backlight, .34 high digits
• Dimensions15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
• Loop compliance voltage24 V DC @ 20mA

Items Included

• 754-8016 Alligator Clip Set
• 75X-8014 Stackable Lead Set
• TP220-4201 Test Probes
• AC280-5001 SureGrip Hook Clips
• Soft Case
• Six AAA Batteries (Installed)
• Product Manual CD-ROM
• Quick Reference Guide
• Safety Information

Downloads

DatasheetDatasheet
