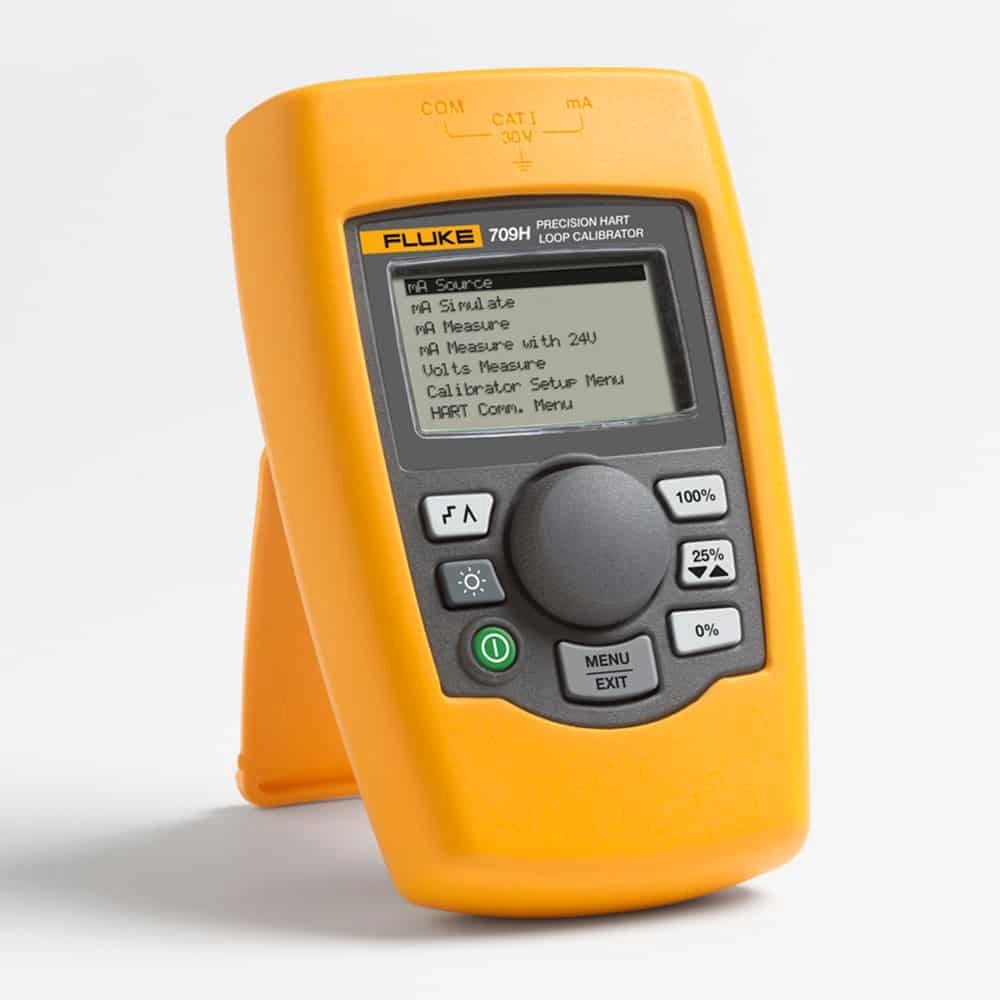

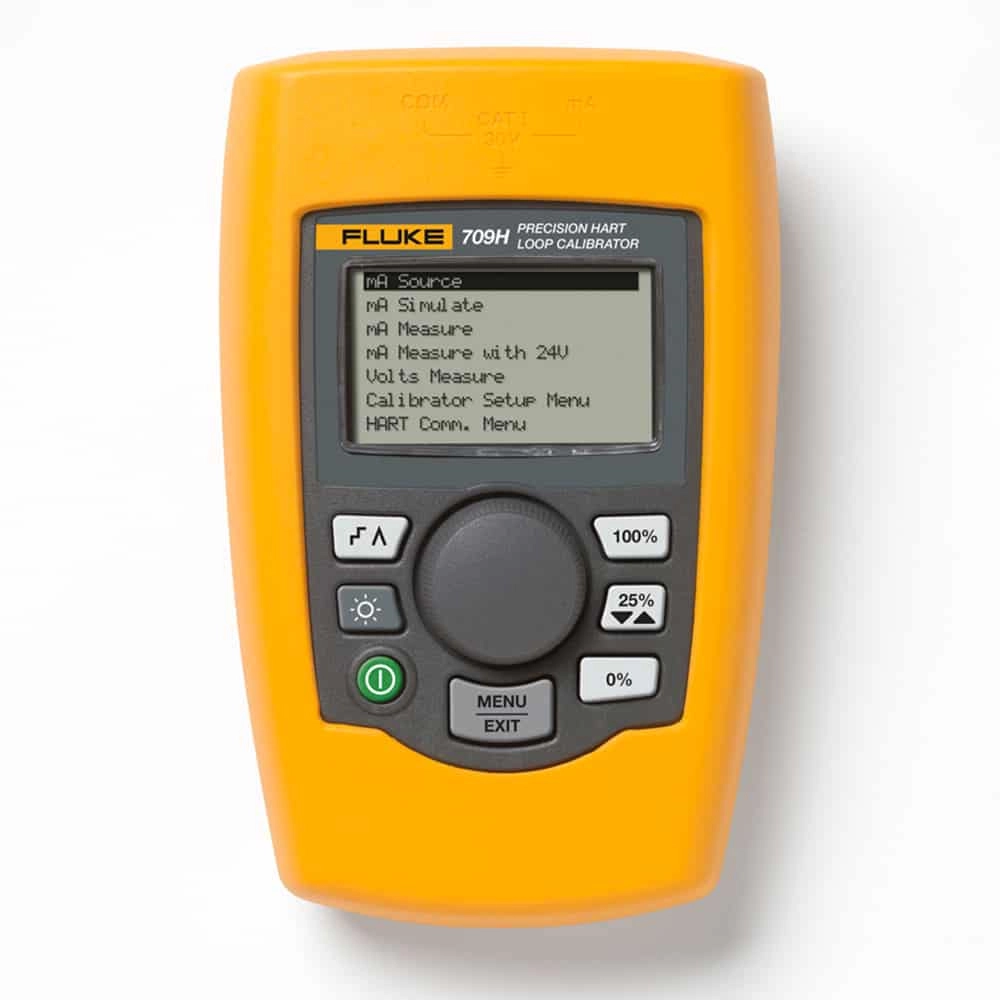

Fluke 709 Precision Loop Calibrator, 0 to 24mA, 0 to 30V

Features

• Best-in-class accuracy at 0.01% reading
• Small rugged design operates on (6) standard AAA batteries
• Intuitive user interface with Quick-Set knob for fast setup; easy use
• Built in selectable 250 resistor for HART communication
• Features 24 V DC loop power with mA Measure Mode (-25% to 125%)
• Requires only simple two wire connection for all measurements
• Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges
• Features a compact rugged design and runs on 6 standard AAA batteries
• Provides Auto Shutdown to conserve battery life (adjustable up to 30 minutes)

Technical Information

• FunctionsmA source, mA simulate, mA read, mA read/loop power, and volts read.
• Voltage Measurement0 to 30 V DC
• Current Measurement0 to 24mA
• Resolution1 µA on mA ranges and 1 mV on voltage range
• Accuracy0.01% ± 2 counts, all ranges (@23° ± 5°C)
• Operating temperature-10°C to 55°C (14°F to 131°F)
• Humidity range10 to 95% non-condensing
• Stability20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
• Display128 x 64 pixels, LCD graphic w/backlight, .34 high digits
• Dimensions15 x 9 x 3 cm (6 x 3.6 x 1.3 in)

Items Included

• AC175 Alligator Clip Set
• TL75 Test Leads
• Soft Case
• Six AAA Batteries (Installed)
• Product Manual CD-ROM
• Quick Reference Guide
• Safety Information
