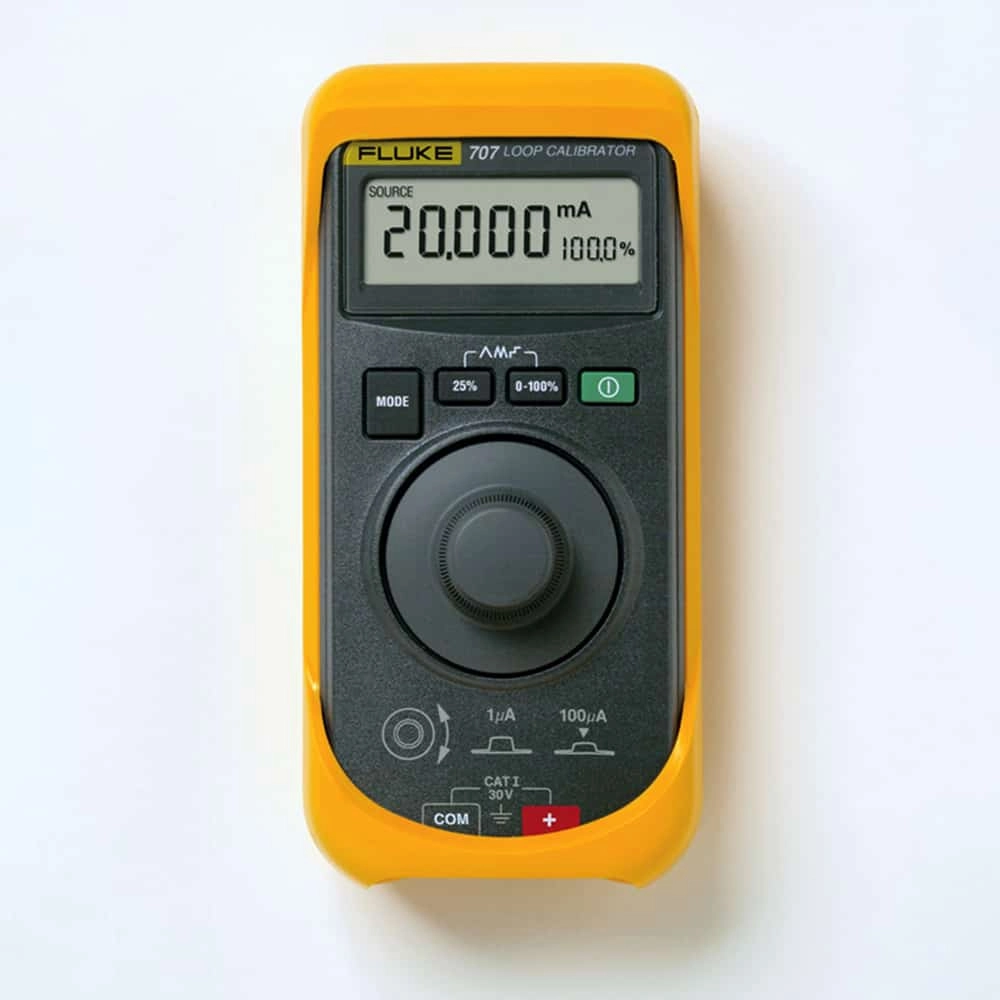

Fluke 707 Loop Calibrator With Quick Click Knob, 28V, 24mA

Features

• Large display and simple; quick-click interface for easy one-handed operation.

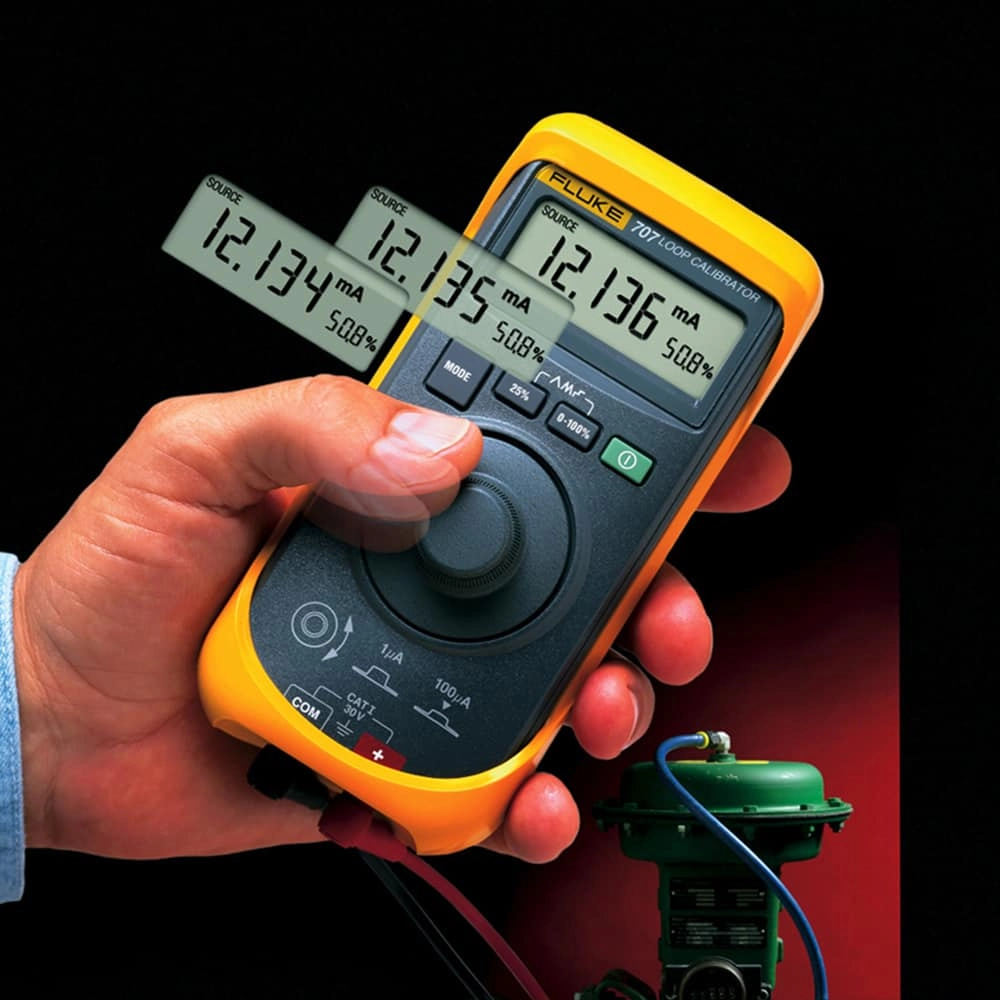

• Simultaneous mA and % readout for quick; easy interpretation of readings.
• mA accuracy of 0.015%; superior to other loop calibrators in this price range.
• 1 µA resolution for mA source; simulate and measure.
• Includes HART® compatible resistance connected in series with the loop supply for compatibility with HART communicators
• Features push button 25% steps for fast, easy linearity checks
• Includes 0-100% "span check" for fast confirmation of zero and span.
• Provides selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests
• Includes a 24 volt internal loop supply, so you can power and read a transmitter at the same time without a DMM

Technical Information

• Current Measurement0 to 24 mA
• Accuracy0.015% Rdg + 2 LSD
• Loop powerWhile measuring mA, 24 V
• Voltage Measurement0 to 28 V DC
• Resolution1 mV
• Accuracy0.015% Rdg + 2 LSD
• Operating temperature-10°C to 55°C
• Humidity (without condensation)0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
• Temperature coefficient-10°C to 18°C, 28°C to 55°C, ±.005% of range per °C
• Size152 x 70 x 41 mm
• Weight224 g (340 g including holster)

Items Included

• AC70A Alligator Clips
• C10 protective yellow holster with Flex-Standª
• Instruction sheet
• TL75 safety-designed test lead set
• NIST- traceable calibration report and data
