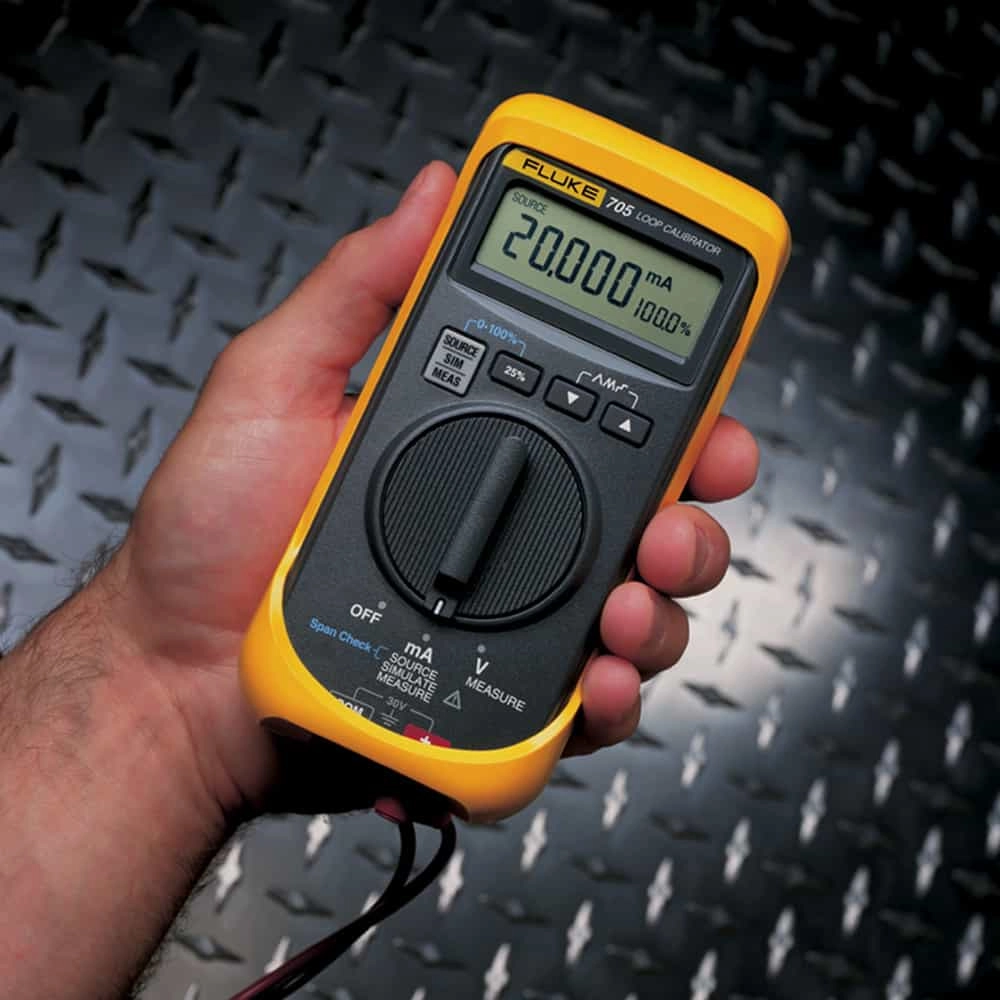

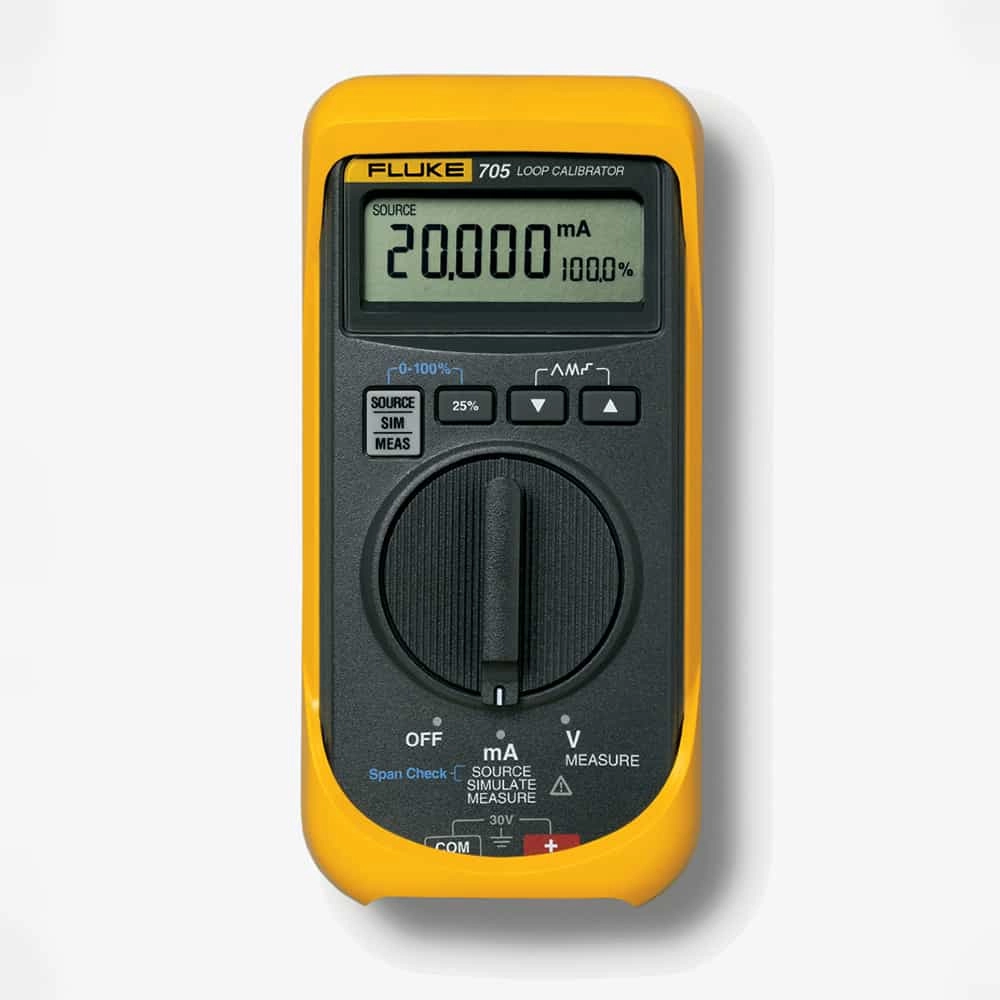

Fluke 705 Loop Calibrator, 28V, 24mA

Features

• A large display and simple; pushbutton interface for ease of use.
• Simultaneous mA and % readout for quick; easy interpretation of readings.
• mA accuracy of 0.02%
• Push button 25% steps for fast; easy linearity checks. Save time over traditional knob type controls.
• mA sourcing, simulation and measurement
• 0.02% accuracy and 0.001 mA resolution
• Simultaneous mA and % of span display
• Selectable step or ramp outputs
• 24 V Loop supply with mA measure

Technical Information

• Current Measurement0 to 24 mA
• Loop powerWhile measuring mA, 24 V
• Voltage Measurement0 to 28 V DC Resolution; 1 mV Accuracy; 0.025% Rdg + 2 LSD
• Operating temperature-10°C to 55°C
• Storage temperature-40°C to 60°C
• Humidity (without condensation)0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)
• Temperature coefficient-10°C to 18°C, 28°C to 55°C, ±.005% of range per°C

Items Included

• AC70A Alligator Clips
• C10 protective yellow holster with Flex-Stand™
• Instruction sheet
• TL75 safety-designed test lead set
• NIST- traceable calibration report and data
