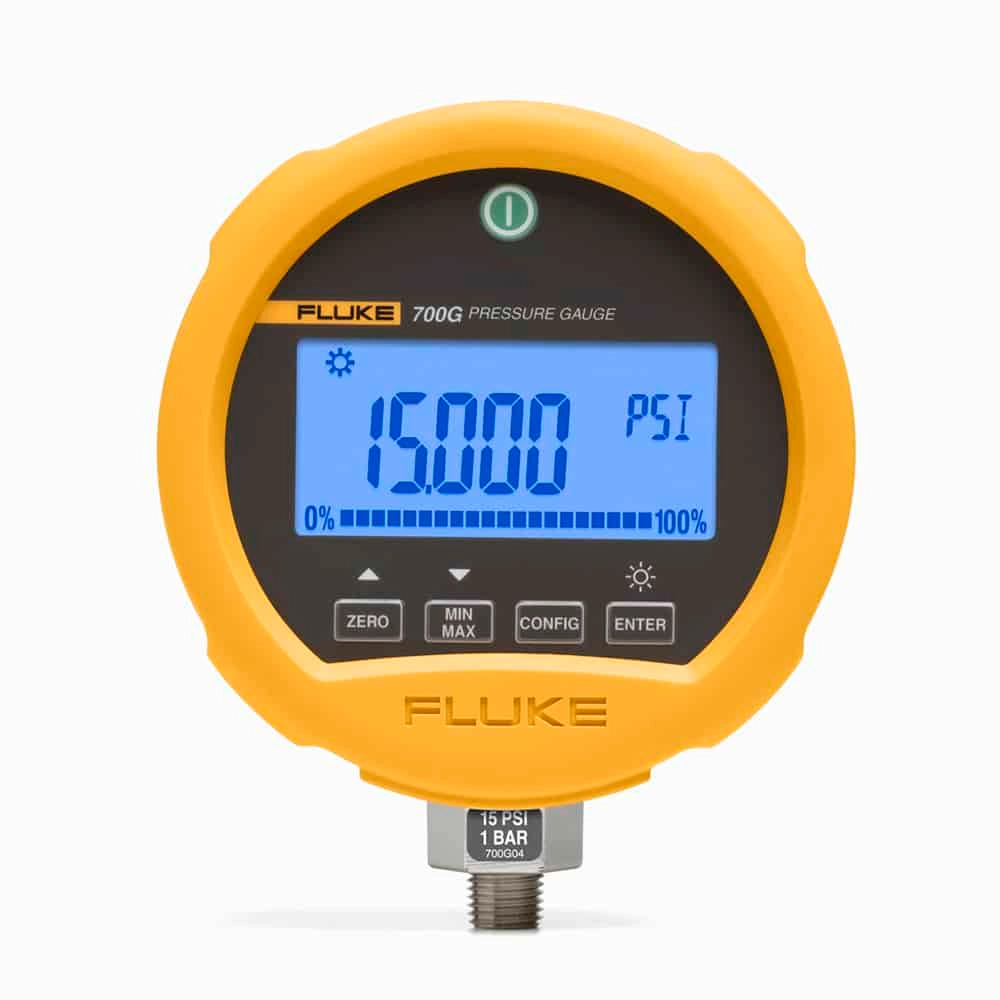

Fluke 700RG30 Pressure Gauge Calibrator, -14 To 5000 PSI

Features

• Precision pressure measurement from ±10 inH2O/20 mbar to 10;000 psi/690 bar
• Absolute pressure measurement ranges 15; 30; 100; 300 psia
• Accuracy to 0.04 % of full scale
• Ability to easily connect to existing pumps
• Reference class gauge accuracies to 0.04% of reading
• Easy to use, rugged construction for reliable performance
• CSA; Class 1, Div 2, Groups A-D rating
• ATEX rating: II 3 G Ex nA IIB T6

Technical Information

• Range-14 to 5000 psi (-0.97 to 340 bar)
• Resolution0.1 psi (0.01 bar)
• AccuracyPositive pressure: ± 0.04 % of reading, +0.01% of range, Vacuum ±0.1% of range
• Burst Pressure15,000 psi (1035 bar)
• Pressure Connection¼" NPT male
• Display5½ digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
• Power3 x AA alkaline batteries
• Battery Life1500 hours without backlight (continuous on), 2000 hours at slow sample rate
• Dimensions5 x 4.5 x 1.5" (12.7 x 11.4 x 3.7 cm)

Items Included

• 1 – 1/4 in. NPT-to-1/4 in. ISO Adapter
• 1 – NIST Certificate of Calibration
• 1 – User Manual

Downloads

Datasheet
