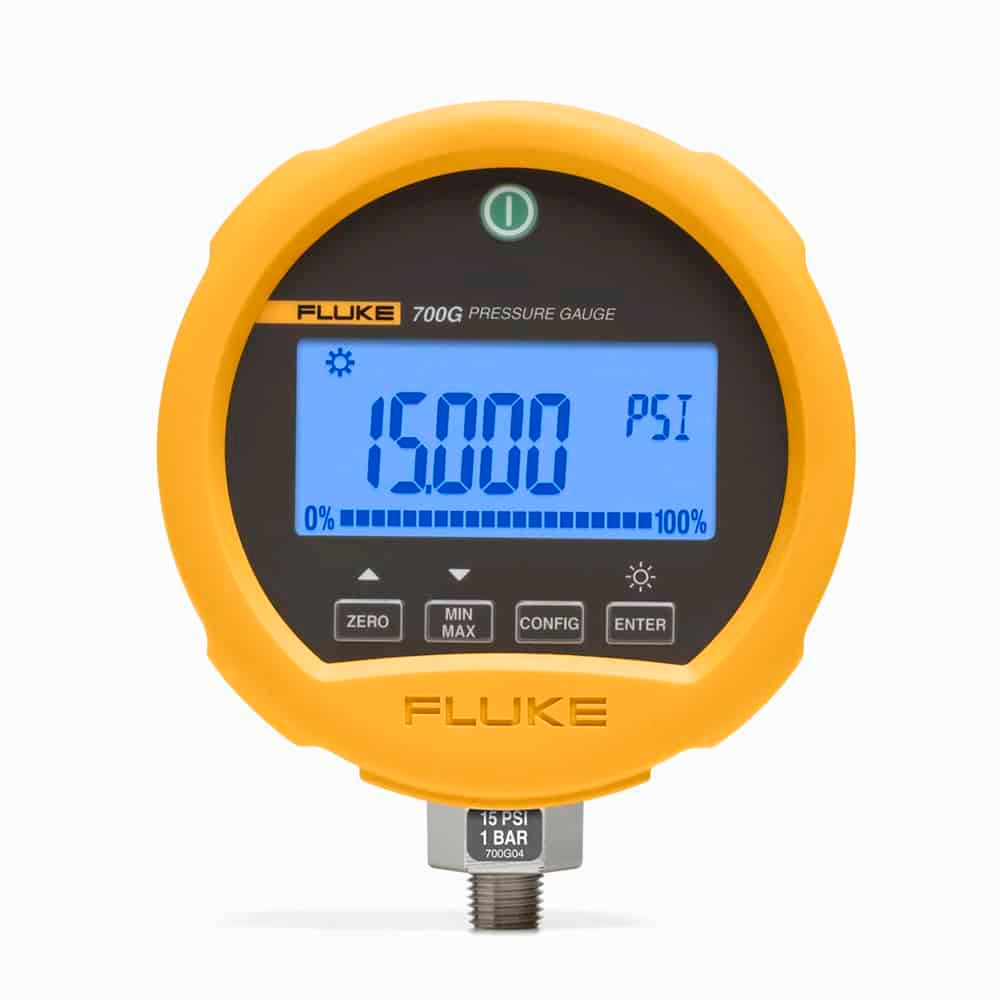

Fluke 700RG07 Pressure Gauge Calibrator, 12 to 500 PSI

Features

• Accuracy to 0.04% of full scale
• Certified intrinsically safe as per CSA Class 1, Div 2, Groups A-D rating and ATEX II 3 G Ex nA IIB T6 rating
• 5-1/2 digit, 16.5mm (0.65") high display with 20-segment bar graph 0-100% and backlight
• Displays measured pressure in 18 different engineering units ranging from psi to bar, kPa and many others, allowing you to customize the gauge to measure your individual or localized measurement needs and requirements
• Precision pressure measurement from ±10 inH2O to 10,000 psi (20 to 690 bar)
• Absolute pressure measurement ranges 15, 30, 100, 300 psia
• Reference class gauge accuracies to 0.04% of reading
• Easy to use, rugged construction for reliable performance

Technical Information

• Range-12 to 500 psi (-0.83 to 34 bar)
• Resolution0.01 psi (0.001 bar)
• AccuracyPositive pressure: ± 0.04 % of reading, +0.01% of range, Vacuum ±0.1% of range
• Burst Pressure2000 psi (138 bar)
• Pressure Connection¼" NPT male
• Display5½ digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
• Power3 x AA alkaline batteries
• Battery Life1500 hours without backlight (continuous on), 2000 hours at slow sample rate
• Dimensions5 x 4.5 x 1.5" (12.7 x 11.4 x 3.7 cm)

Items Included

• 1 – 1/4 in. NPT-to-1/4 in. ISO Adapter
• 1 – NIST Certificate of Calibration
• 1 – User Manual
