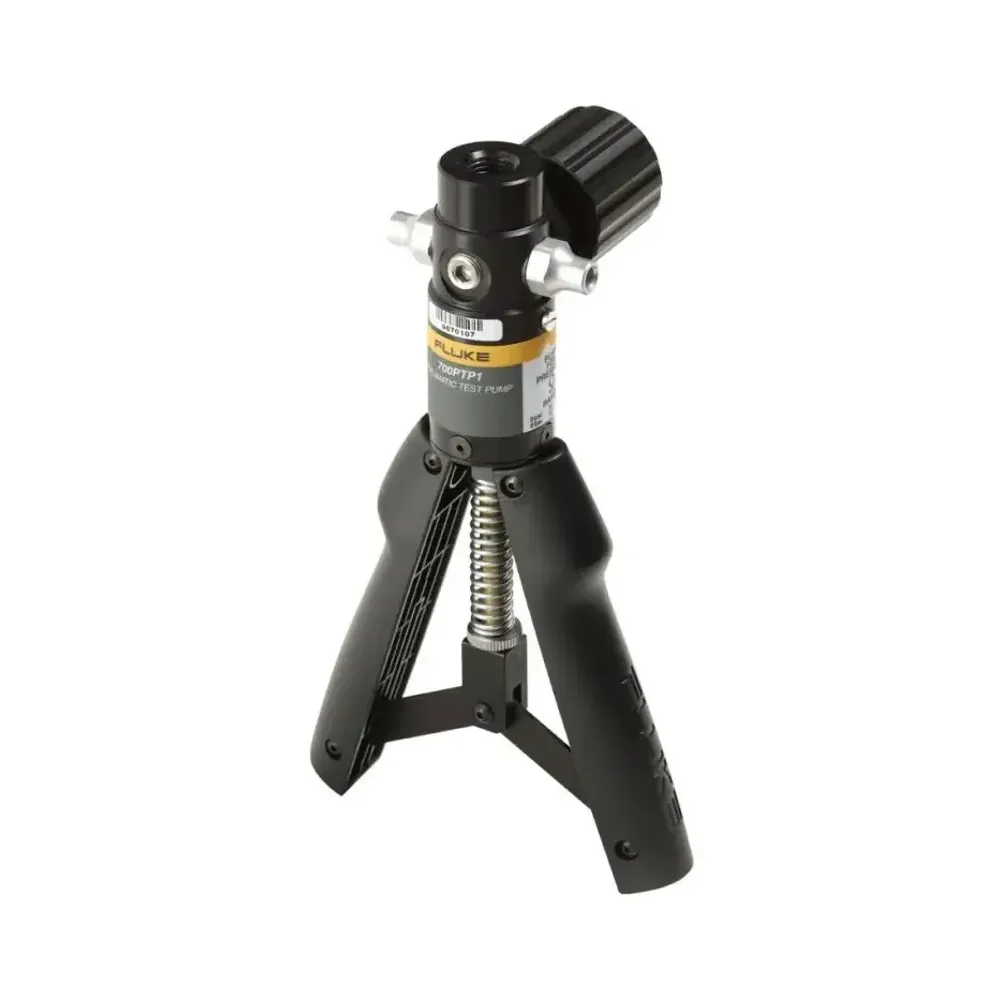

Fluke 700PTP-1 Pneumatic Test Pump, 600 PSI

Features

• Pump can be easily cleaned without disassembly
• The vernier can be used as a stand-alone low pressure calibration source
• Two pressure ports allowing simultaneous connection:
• ¼ in NPT female fitting for the reference gauge or pressure module
• ¼" NPT female fitting for the unit under test
• Adjustable stroke length can be set to limit the pressure per stroke
• 1st Pressure Port - 3/8-BSP (ISO228) female parallel thread fitting for the reference gauge or pressure module
• 2nd Pressure Port - 1/8-BSP (ISO228) female parallel thread fitting for the unit under test

Technical Information

• Size (L x W x D)8.7 x 4.8 x 3.5 in (220 x 122 x 89 mm)
• Weight1.03 lb (467 g)
• Wetted Materialsaluminum, silicon, neoprene, stainless steel, Buna-N

Items Included

• ¼ in NPT male to ¼ in BSP female 1 meter of hose
• (2) in NPT male quick connects in NPT female to ¼ in BSP female Seal Kit Instruction sheet
