Fluke 700HTPK Hydraulic Test Pressure Kit, 10,000 PSI, 690 Bar

Features

• Generates pressure up to 10;000 psi
• Connects directly to the 700G series pressure test gauges
• Use kit with 700PXX pressure modules and 717 calibrators
• Includes hose kit and adapters for connecting to the pressure device to be tested
• Easy to use, rugged and reliable construction, capable of generating hydraulic pressure up to 10,000 psi/690 bar
• Combine with one of the Fluke 700G Precision Pressure Gauges for a complete pressure testing and calibration solution
• In addition, combine with the Fluke 700G/TRACK Software to upload over 8,000 pressure measurements logged in the field to a PC

Technical Information

• Range0 TO 10,000 PSI/690 BAR
• Dimensions (HxWxD)12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)
• Pressure connection1/4 in NPT Male
• HousingCast ZNAL
• Display5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 %
• PowerThree AA alkaline batteries
• Battery life1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate
• Weight0.56 kg (1.22 lb) with holster

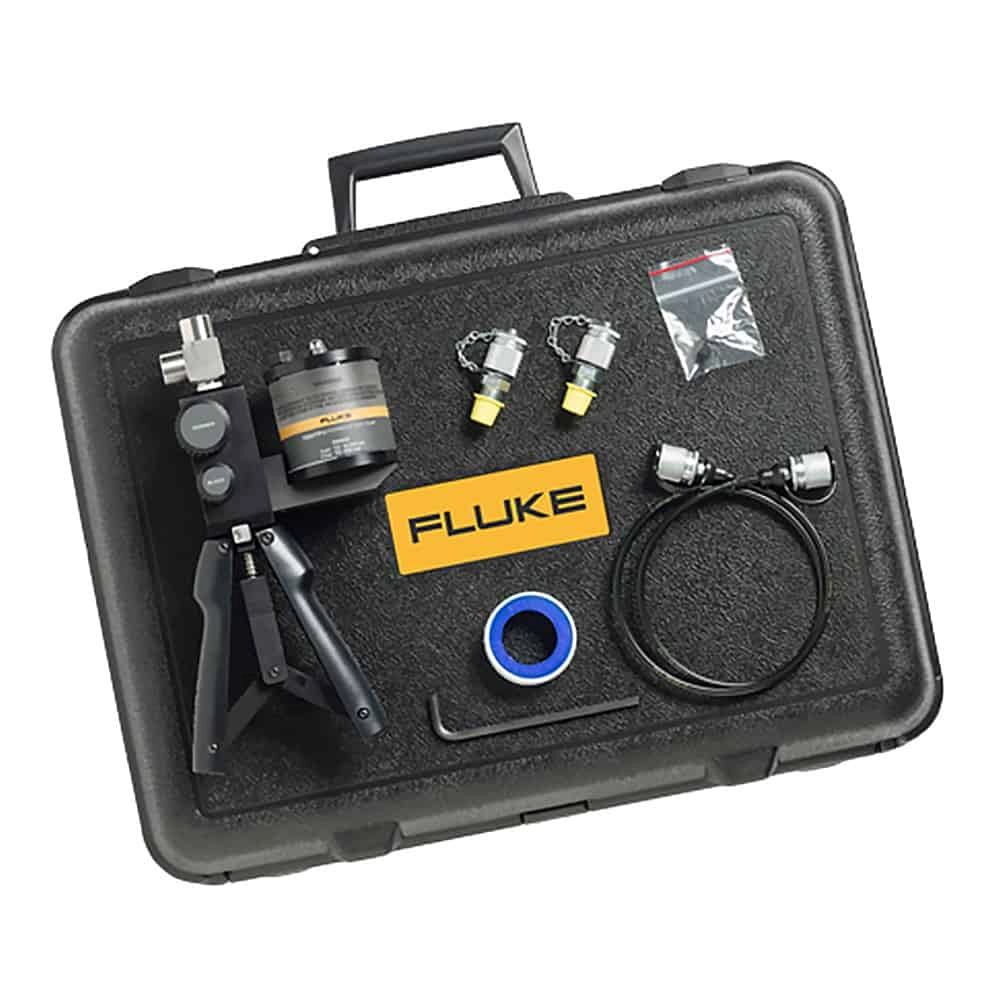

Items Included

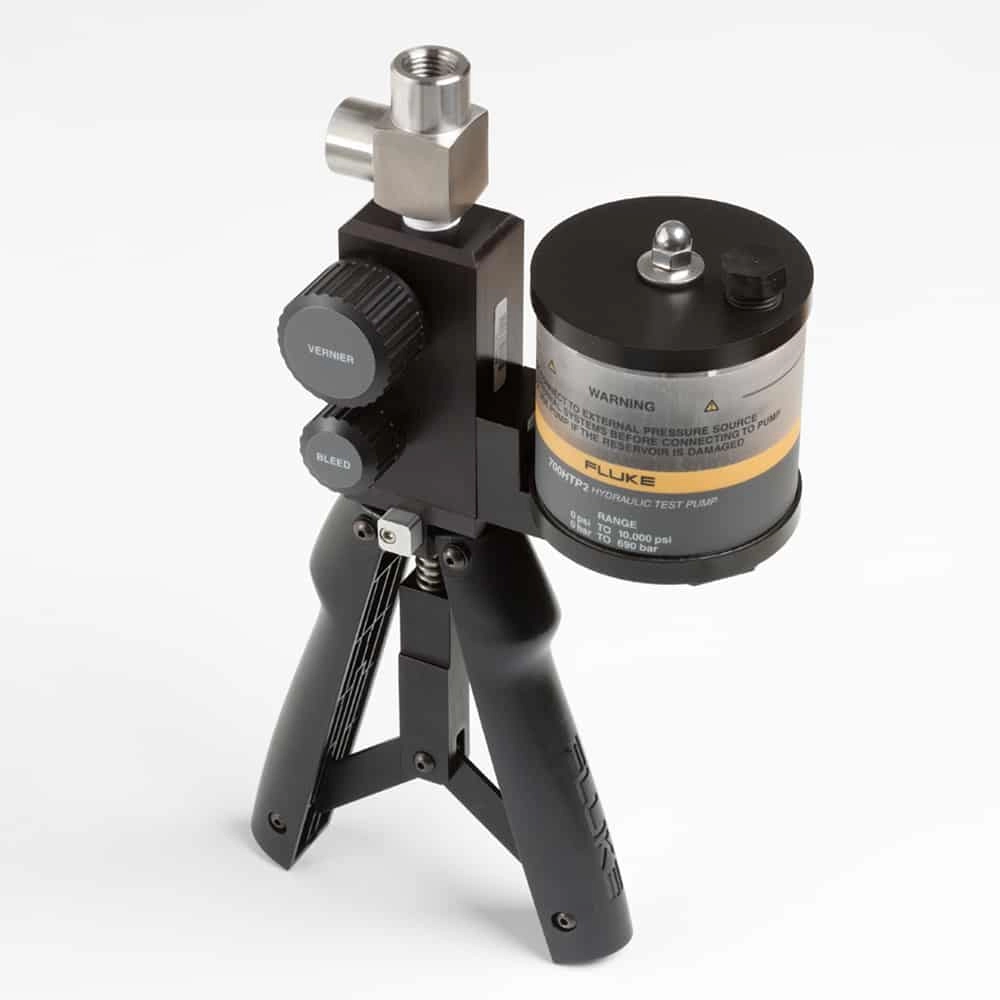

• Fluke 700HTPK Hydraulic Test Pump Kit with Hydraulic Hand Pump
• PTP-2 Hand Pump Hoses Adapters for Connecting to the Pressure Device
• Hard Case Manual on CD-Rom
