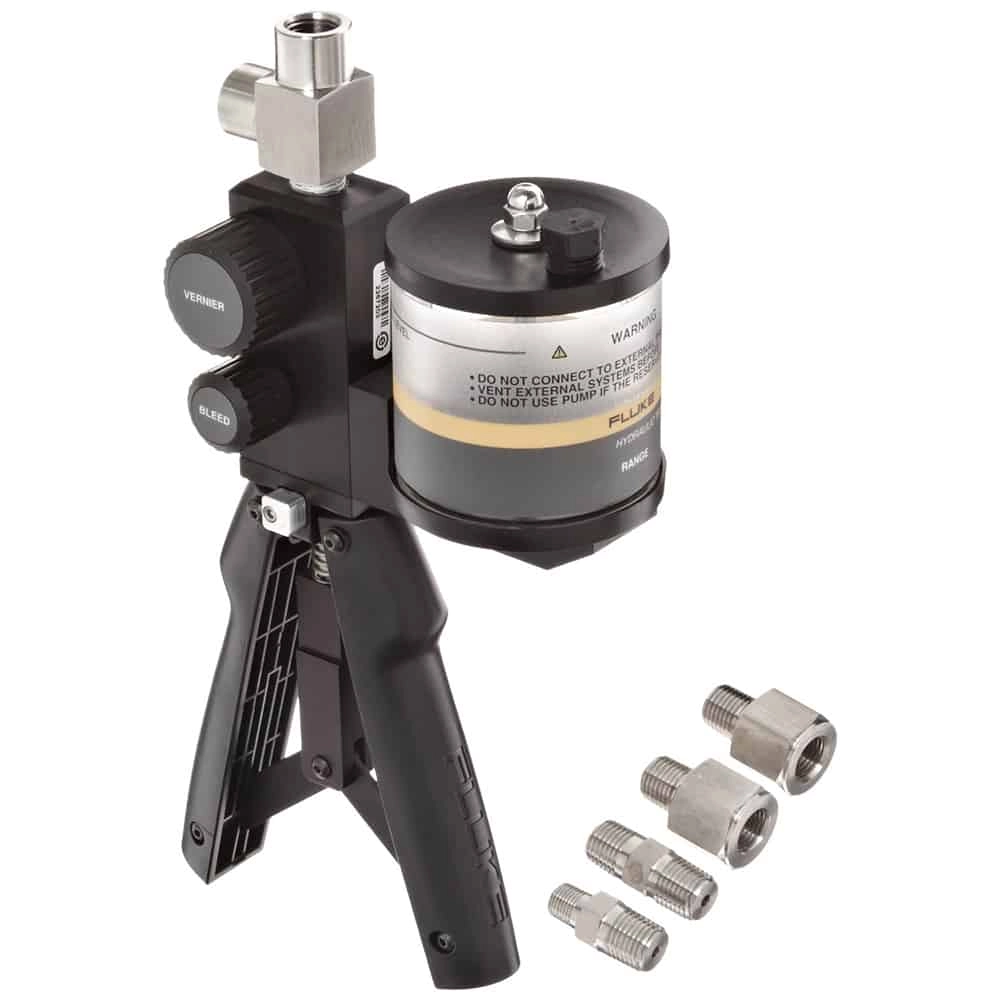

Fluke 700HTP-2 Hydraulic Test Pump, 10,000 PSI, 690 Bar

Features

• Variable size stroke adjustment; allows the user to vary the volume and pressure per stroke
• Integral pressure adjustment vernier knob for fine pressure adjustment
• Directly connection to pressure modules consolidates two separate pieces into one when performing pressure calibration and testing
• Two ¼ inch NPT pressure ports, one for reference (pressure module or gauge), one for UUT
• Compatible with optional Fluke-700PRV pressure relief valve designed to protect pressure modules from overpressure damage
• Improved priming
• Improved stroke limiting mechanism

Technical Information

• Max. Pressure10,000 PSI (690 Bar)
• Hydraulic MediaDistilled water, mineral based hydraulic oil, or up to hydraulic oil 100 (30 W)
• Size (L x W x D)9.5 x 6.1 x 2.6 in (241 x 155 x 66 mm)
• Weight1.29 lb (0.58 kg)
• Wetted Materials303 stainless steel, aluminum, polyurethane, PTFE, nitrile, and nylon

Items Included

• 700HTP-2 Hydraulic Test Pump with a 1/4inch NPT tee installed
• Two 1/4-inch NPT male to 1/4-inch BSP female adapters
• One 1/4-inch NPT male to 1/4-inch NPT male fitting
• One 1/4-inch NPT male to 1/8-inch NPT male fitting
• Instruction Sheet
