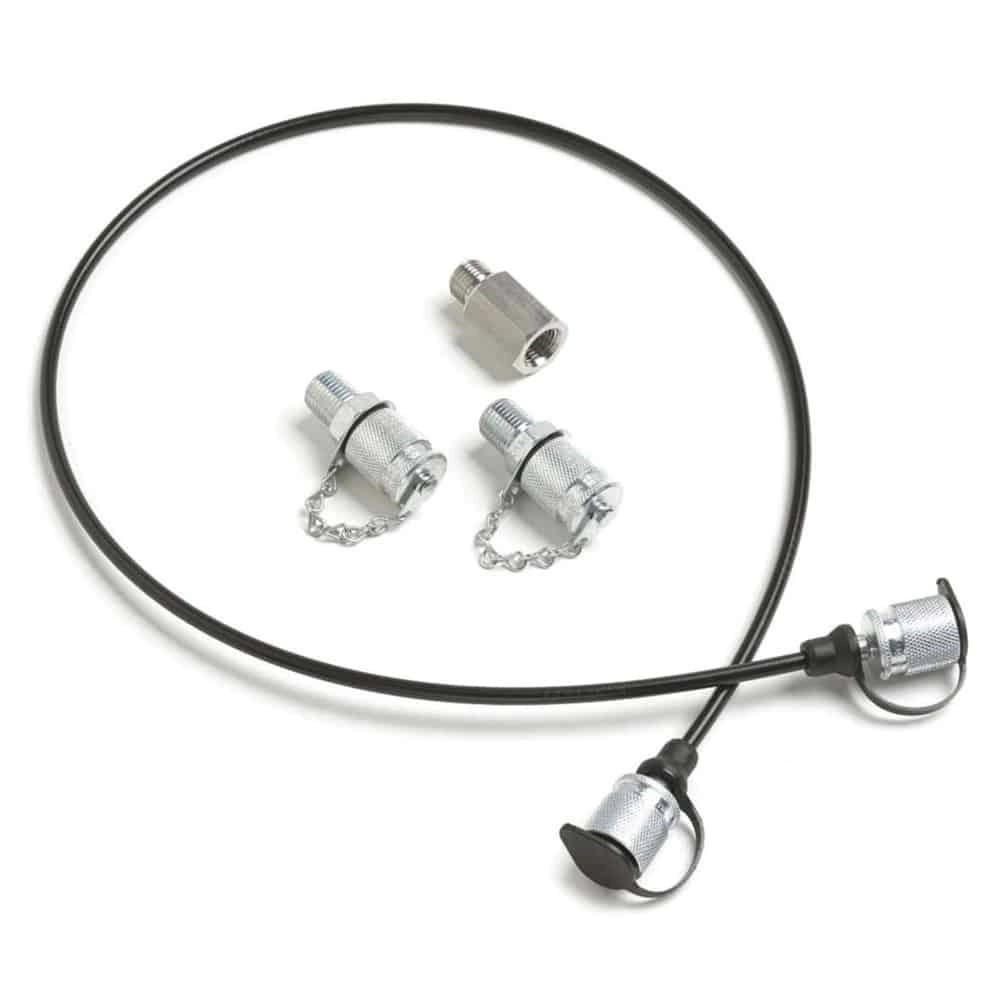

Fluke 700HTH-1 Hydraulic Test Hose, 10,000 PSI, 700 Bar

Features

• Includes plugs and caps to eliminate fluid loss in hose; eliminates the need to re-prime the hose
• Self-sealing fittings with easy finger tight connections
• Low volumetric expansion and a negligible pressure drop at rated pressures
• Features stainless steel and nylon construction.
• Hose and fittings connect directly to the Fluke 700HTP-1 test pressure port

Technical Information

• Max Pressure690 bar/10,000 psi
• Min. Bend Radius60mm
• Working temperature40 ºC to + 120 ºC
• Constructionnylon, stainless steel, zinc, plated steel, and nitrile
• Outer diameter6.0 mm
• Fluidswater, mineral-based hydraulic oil

Items Included

• Hose with (2) 1/4" NPT female output connections
• (2) adapters that to convert ¼: NPT female to 1/4" NPT male (include sealing caps)
• 1/4 in NPT female to 1/4 in BSP male adapter
• Instruction sheet

Downloads

Datasheet
