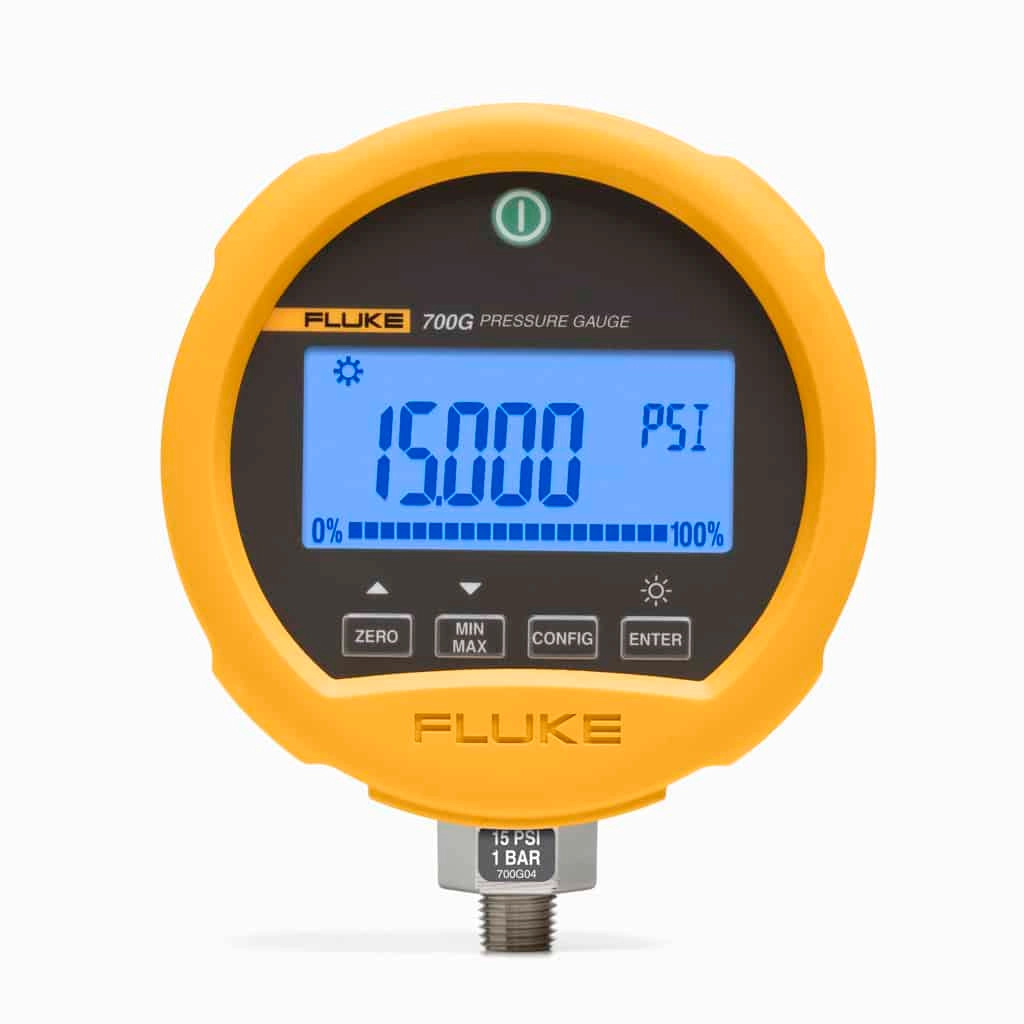

Fluke 700G04 Pressure Gauge, -14 to 15 PSI, 1 Bar

Features

• Bright backlit display for easy viewing of pressure measurements
• Rugged; durable design with protective holster
• Log up to 8493 pressure measurements to memory (requires 700G/TRACK software)
• Combined with either the 700PTPK pneumatic pump kit or the 700HTPK hydraulic pump kit for a complete measurement and testing solution
• Rugged design with intrinsically safe certification
• Standard accuracy to 0.05% of full scale
• Allows you to work safely in classified areas known to include explosive gasses
• Easily view in most environments with bright backlit display
• Make precise pressure measurements from ±10 inH2O/20 mbar to 10,000 psi/690 bar

Technical Information

• Range-14 to 15 psi, -0.97 to 1 bar
• Resolution0.001 psi, 0.0001 bar
• AccuracyPositive pressure ± 0.05 % FS Vacuum ± 0.1 % FS
• Burst pressure60 psi, 4 bar
• Dimensions (HxWxD)12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in)
• Pressure connection1/4 in NPT Male, ( 1/4 in NPT to 1/4 ISO adapter provided)
• Weight0.56 kg, 1.22 lbs with holster
• Display5-1/2 digits, 16.53 mm (0.65 in) high 20 –segment ar graph, 0 to 100 %
• Battery life1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate

Items Included

• Fluke 700G04 Pressure Test Gauge, ±15 psig

Downloads

Datasheet
