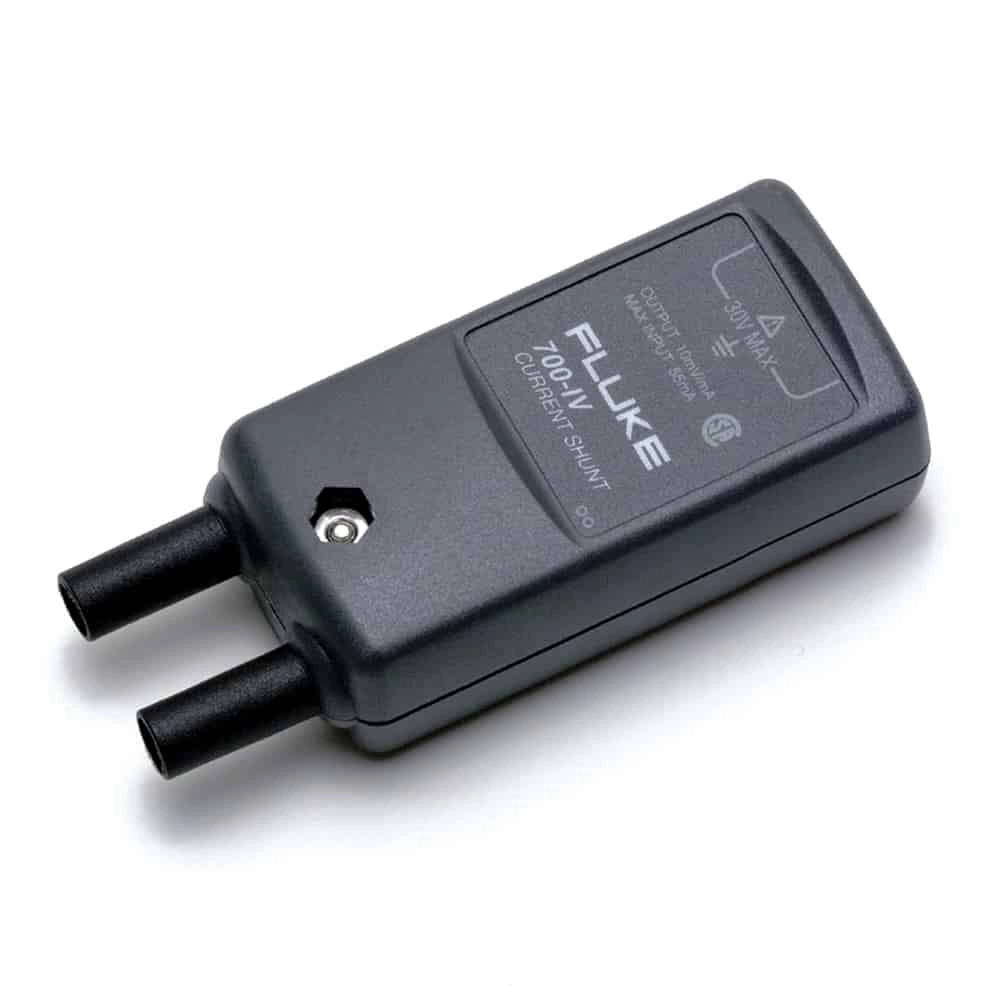

Fluke 700-IV Current Shunt, 0 to 55 mA DC

Features

• The Fluke 700-IV Current Shunt is used with the 741 or 743 Documenting Process Calibrator to measure and source current simultaneously.

Technical Information

• Input current range0 to 55 mA DC
• Conversion factor1 mA in converts to 10 mV out
• Accuracy±0.025% of input
• Calibration interval1 year
• Input resistance250Ω Nominal
• Output resistance10Ω Nominal
• Maximum voltage input30V DC

Items Included

• Fluke 700-IV Current Shunt

Downloads

Datasheet
