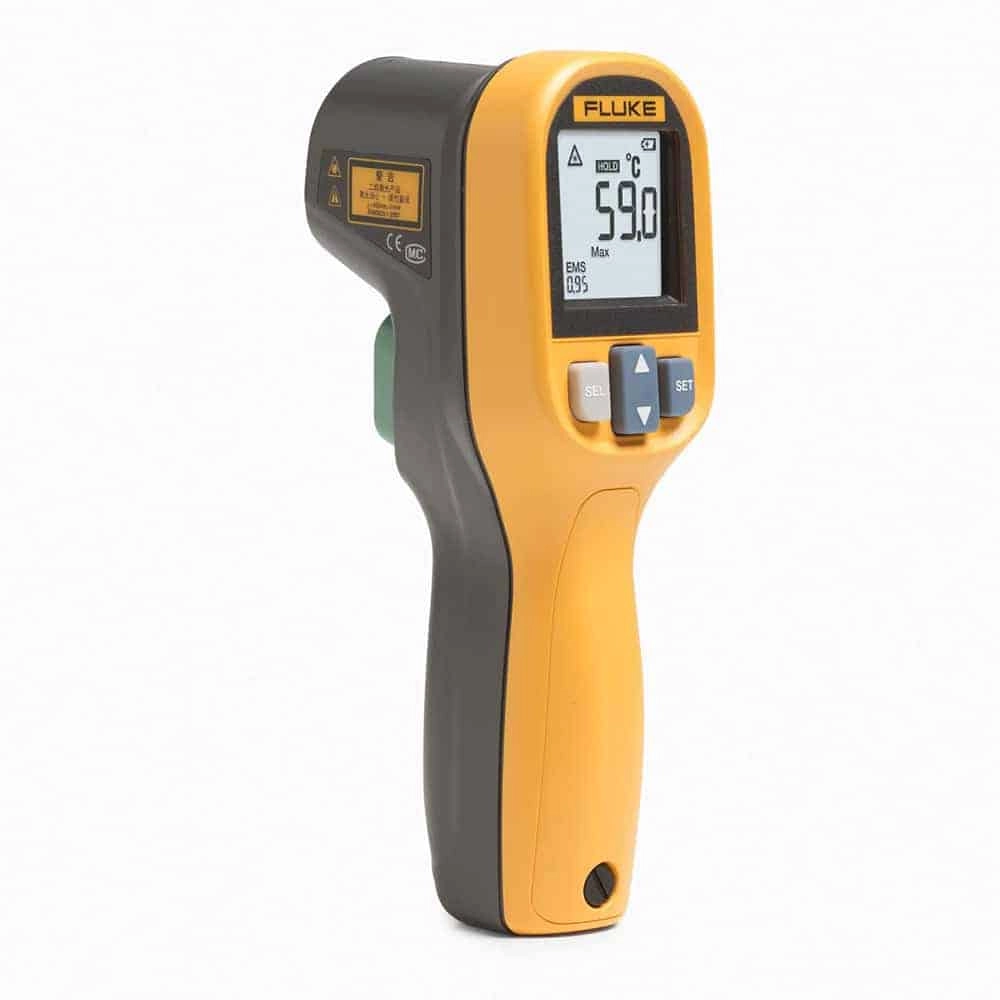

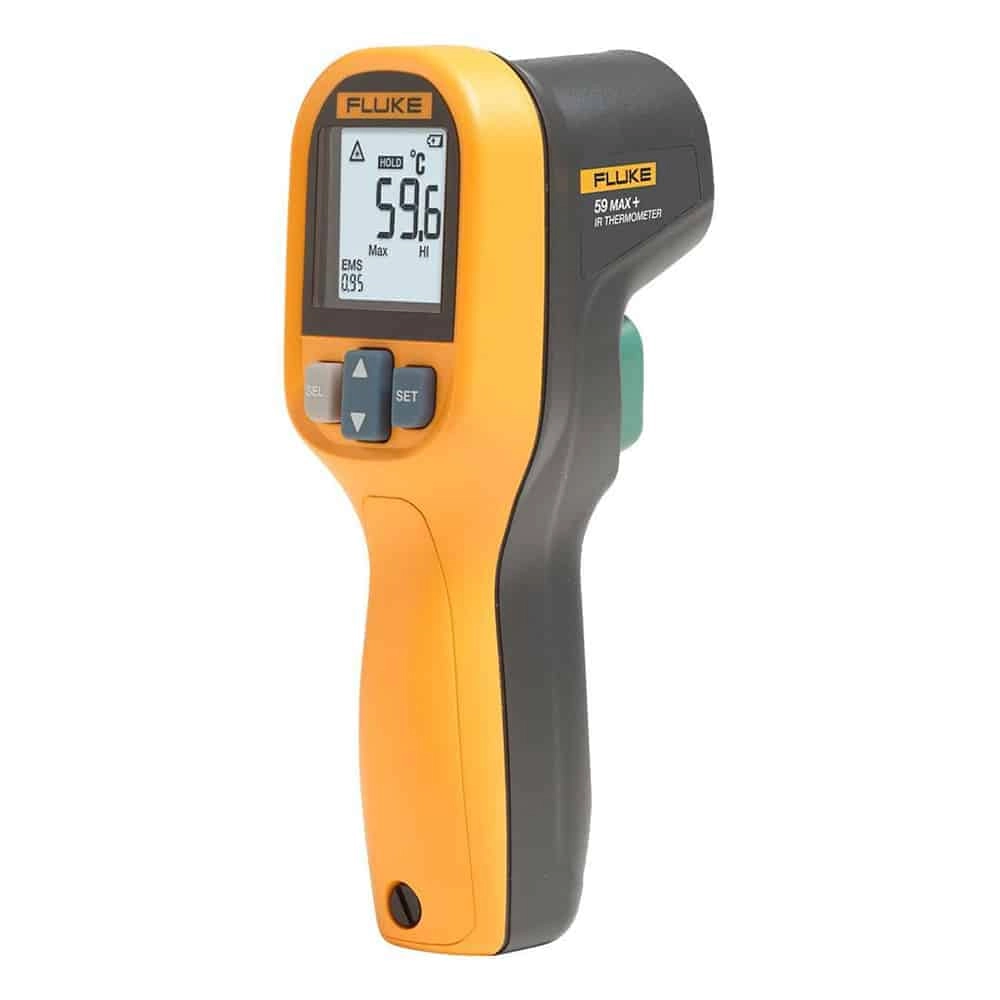

Fluke 59 Max+ Laser Infrared Thermometer, 10:1, -30°C To 500°C

Features

• Precise laser technology for more accurate and repeatable measurements
• Large; easy-to-read backlit LCD display for easy viewing
• Small and lightweight design fits easily fits into your tool box
• 10:1 distance to spot ratio
• Selectable MAX, MIN, DIF and AVG functions
• Hi and Lo alarms for rapid display of measurements outside the limits
• One meter drop tested

Technical Information

• Temperature Range-30°C to 500°C (-22°F to 932°F)
• Temperature Range-30°C to 500°C (-22°F to 932°F)
• Accuracy (Calibration geometry with ambient temperature 23°C ±2°C)0°C: ±1.5°C or ±1.5% of reading, whichever is greater -10°C to < 0°C: ±2.0°C
• Accuracy (Calibration geometry with ambient temperature 23°C ±2°C)0°C: ±1.5°C or ±1.5% of reading, whichever is greater -10°C to < 0°C: ±2.0°C
• Response Time (95%)< 500 ms (95% of reading)
• Response Time (95%)< 500 ms (95% of reading)
• Spectral Response8 mm to 14 mm
• Emissivity0.10 to 1.00
• Distance to Spot Ratio10:1 (calculated at 90% energy)
• Display Resolution0.1°C (0.2°F)
• Repeatability (% of reading)±0.8% of reading or ±1.0°C (±2.0°F), whichever is greater
• Size156 x 80 x 50 mm (6.14 x 3.15 x 2 in)
• Operating Temperature0°C to 50°C (32°F to 122°F)
• Storage Temperature-20°C to +60°C (-4°F to 140°F), (without battery)
• Operating Altitude2000 meters above mean sea level

Items Included

• Fluke 59 MAX+ Infrared Thermometer
• Infrared Thermometer
• 10:1 distance-to-spot ratio
• Single laser targeting
• Quick Reference Guide
