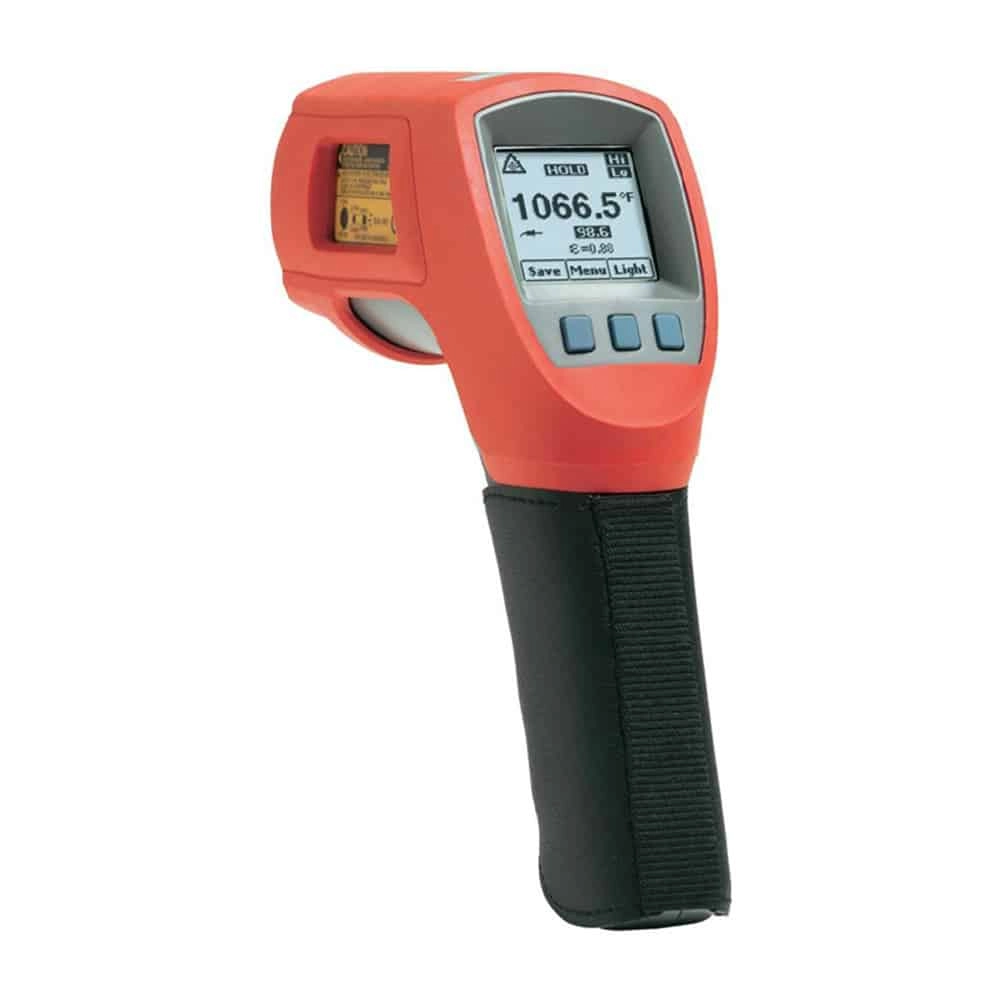

Fluke 568Ex Intrinsically Safe Infrared Thermometer, -40°C to 800°C

Features

• Meets intrinsically safe certifications in Class I Div 1 and Div 2 or Zone 1 and 2 hazardous environments from recognized safety agencies around the world
• Measure -40 °C to 800 °C /-40 °F to 1472 °F
• Conductive Case for carrying the IR thermometer safely into hazardous area
• Easily adapts to lighting conditions with a two-level backlight
• Captures up to 99 points of data for quick downloading to a PC through the USB connection
• Works with mini-connector K-type thermocouples
• Allows you to confidently measure a wide variety of surfaces with adjustable emissivity and built-in materials table
• Allows easy access to advanced features with soft-key buttons and graphical display

Technical Information

• Infrared temperature range-40°C to 800°C (-40°F to 1472°F)
• Infrared temperature range-40°C to 800°C (-40°F to 1472°F)
• Infrared accuracy< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F)
• Infrared accuracy< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F)
• Display resolution0.1°C / 0.1°F
• Display resolution0.1°C / 0.1°F
• Infrared spectral response8 µm to 14 µm
• Infrared response time< 500 ms
• Thermocouple type-K temperature range-270°C to 1372°C (-454°F to 2501°F)
• Thermocouple type-k input accuracy< -40°C: ±(1°C + 0.2°/1°C)
• Distance to Spot Ratio50:1
• Minimum spot size19 mm (0.75 in)
• Operating temperature0°C to 50°C (32°F to 122°F)
• Storage temperature-20°C to 60°C (-40°F to 140°F)

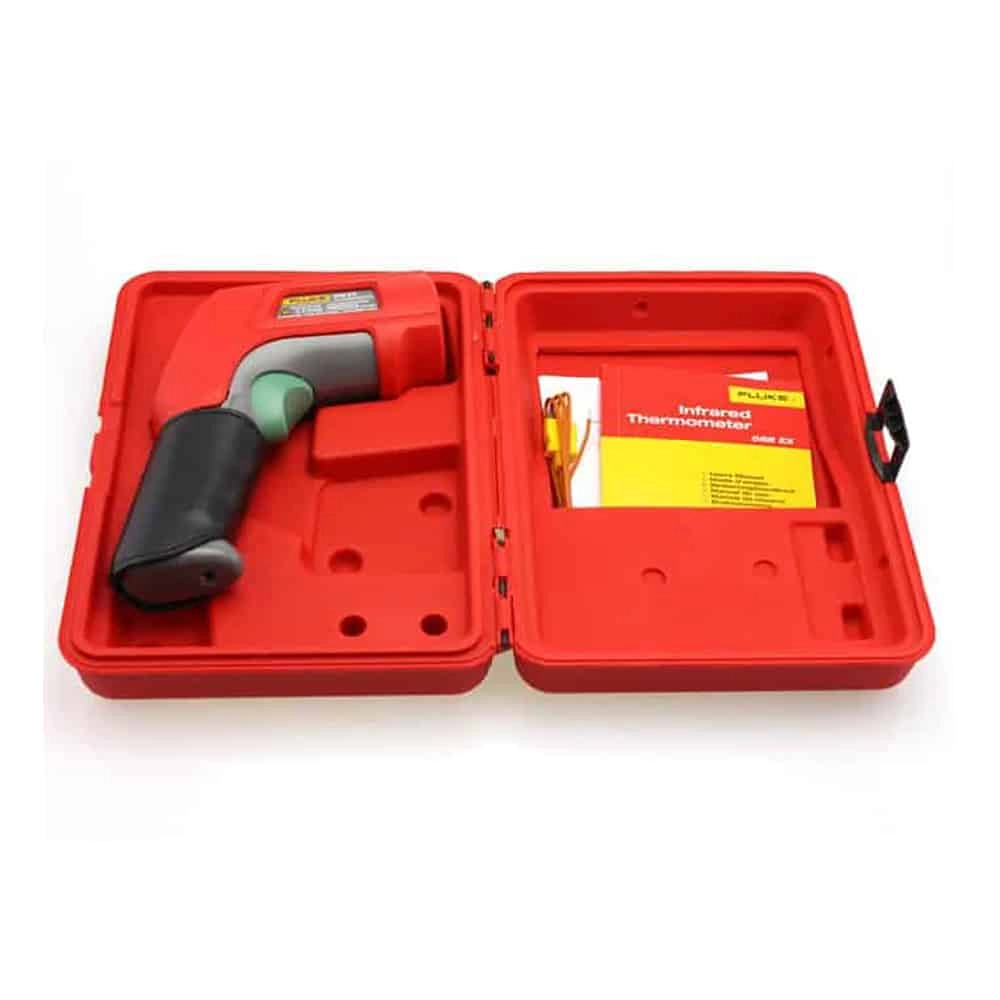

Items Included

• K-type thermocouple bead probe
• Conductive IS hard carrying case
• User's manual

Downloads

Datasheet
