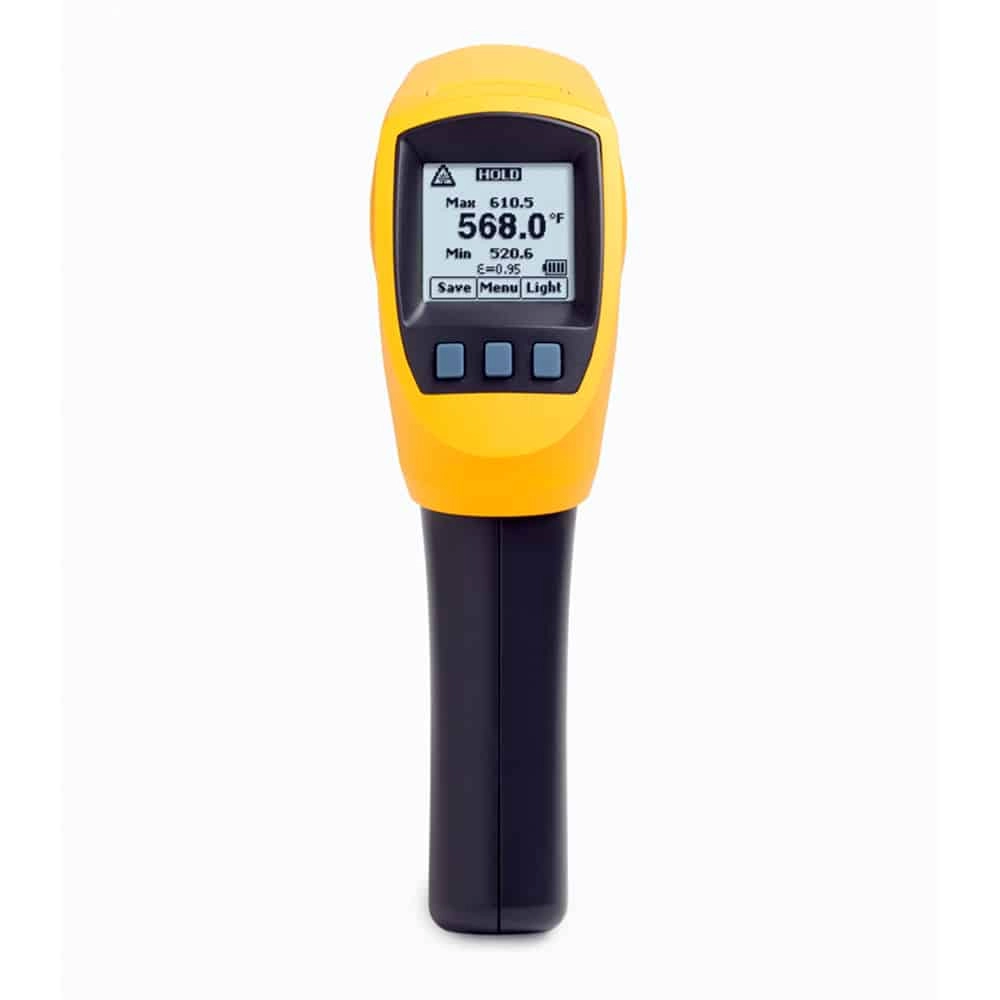

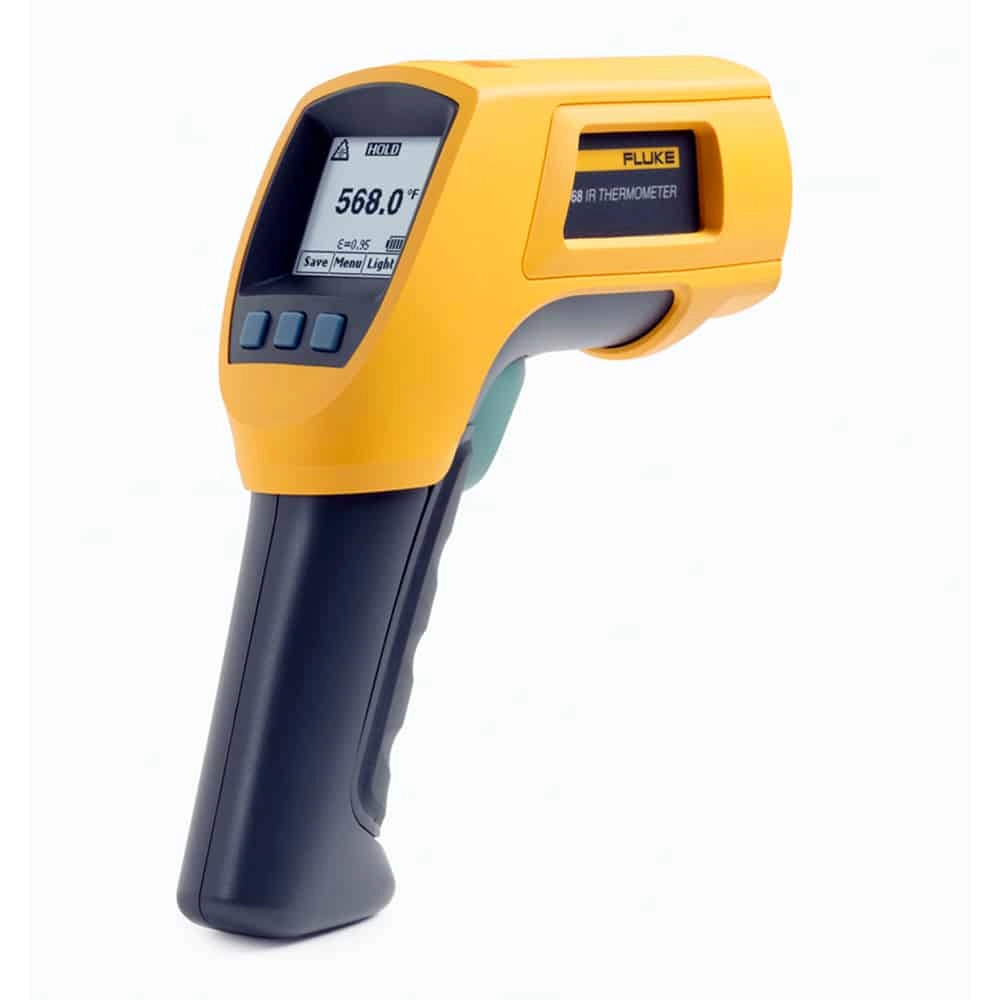

Fluke 568 2-in-1 Contact And Non-Contact Thermometer, 50:01, -40 to 800°C

Features

• Measures temperatures from -40°C to 800°C (-40°F to 1472°F) accurate to +1.0°C or +1.0% of reading (whichever is greater)
• Features rugged, ergonomic design that stands up to tough industrial, electrical, and mechanical environments.
• Offers a distance-to-spot ratio of 50:1
• Works with most K-type thermocouples
• Allows easy access to advanced features with soft-key buttons and graphical display
• Captures up to 99 points of data for quick downloading to a PC through the USB connection
• Quickly identifies problems with MIN, MAX, AVG, and DIF functions
• Easily adapts to lighting conditions with a two-level backlight

Technical Information

• Infrared temperature range-40°C to 800°C (-40°F to 1472°F)
• Infrared temperature range-40°C to 800°C (-40°F to 1472°F)
• Infrared accuracy< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
• Infrared accuracy< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
• Display resolution0.1°C / 0.1°F
• Display resolution0.1°C / 0.1°F
• Infrared spectral response8 µm to 14 µm
• Thermocouple Type-K input temperature range-270°C to 1372°C (-454°F to 2501°F)
• Distance to Spot Ratio50:01
• Laser sightingSingle-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm
• Emissivity adjustmentBy built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
• Thermocouple Type-K input accuracy-270°C to -40°C ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) -40°C to 1372°C: ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater
• DisplayDot matrix 98 x 96 pixels with function menus
• Operating temperature0°C to 50°C (32°F to 122°F)
• Bead thermocouple Type-K range-40°C to 260°C (-40°F to 500°F)

Items Included

• Thermocouple K bead probe
• Durable hard case
• 2 AA batteries
• Getting Started guide in 6 languages
• USB cable
• FlukeView® Forms software on CD
• User’s Manual on CD in 6 languages (English, Spanish, French, German, Portuguese, and Simplified Chinese)
• 2-year warranty

Downloads

Datasheet
