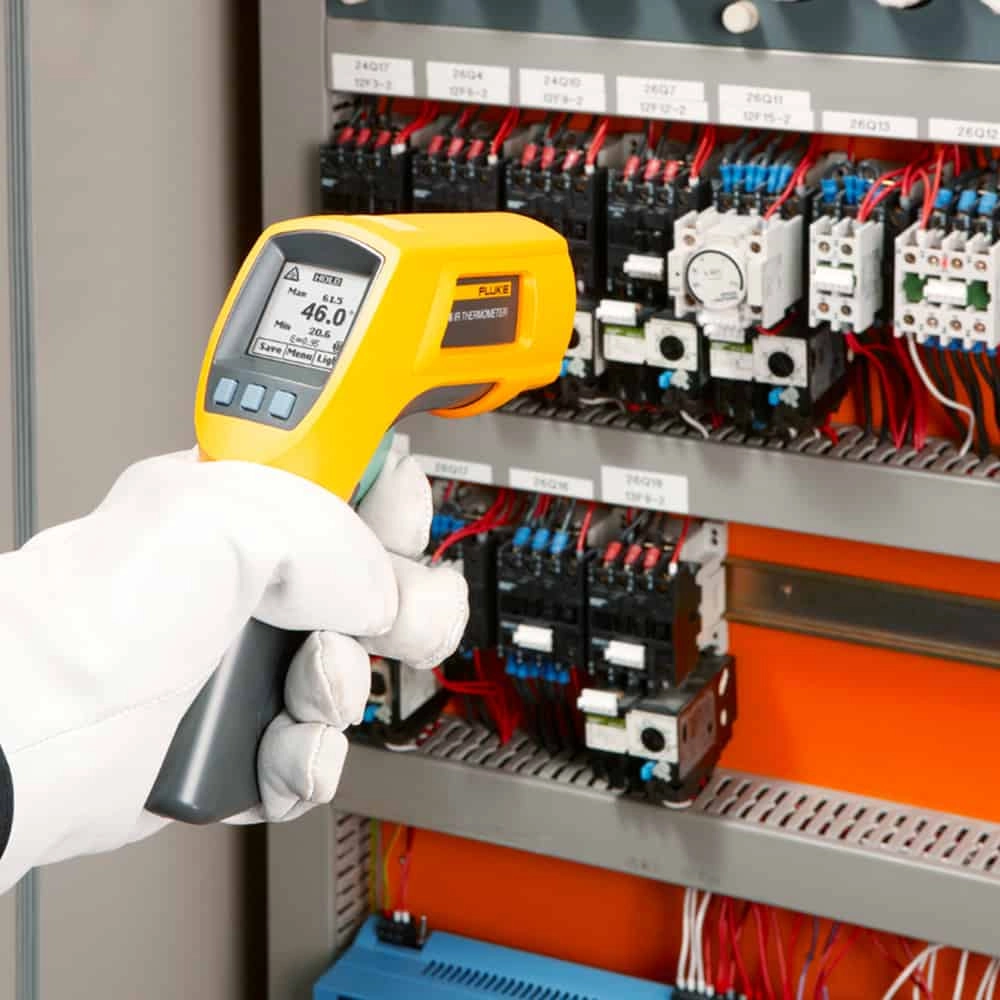

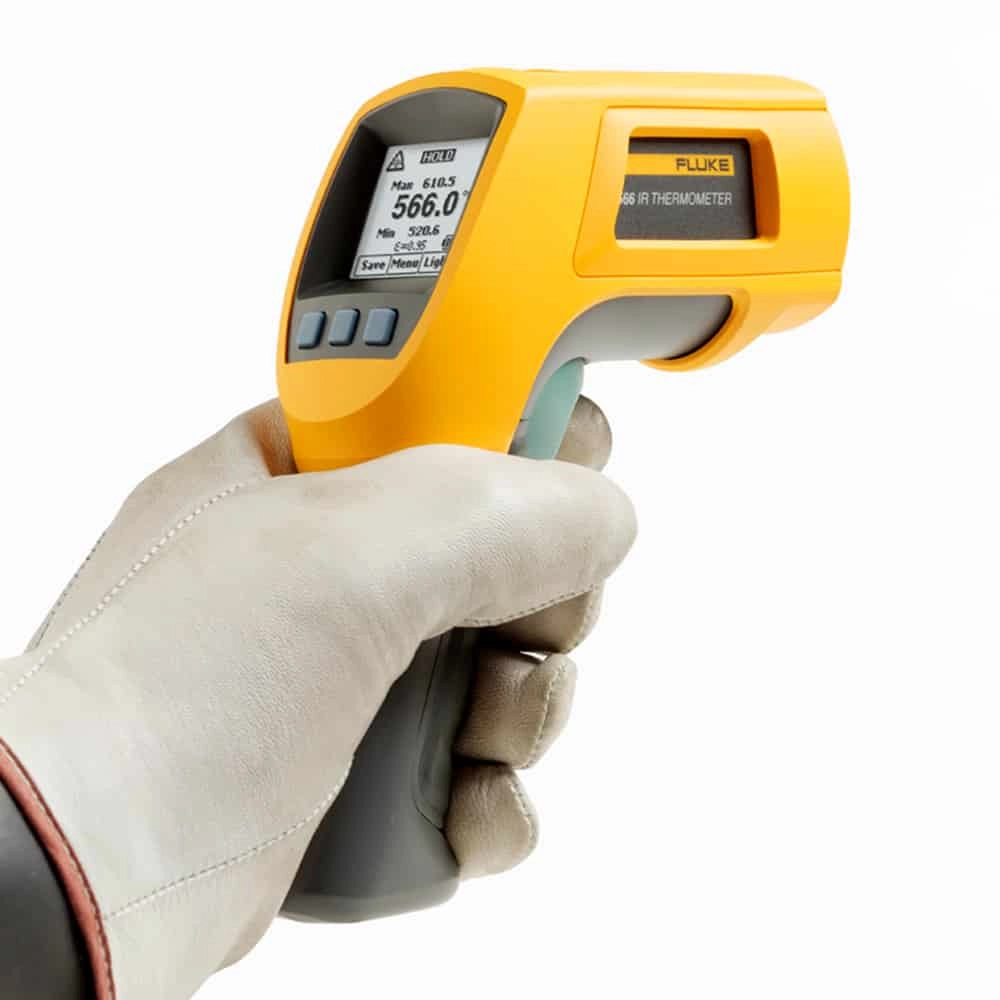

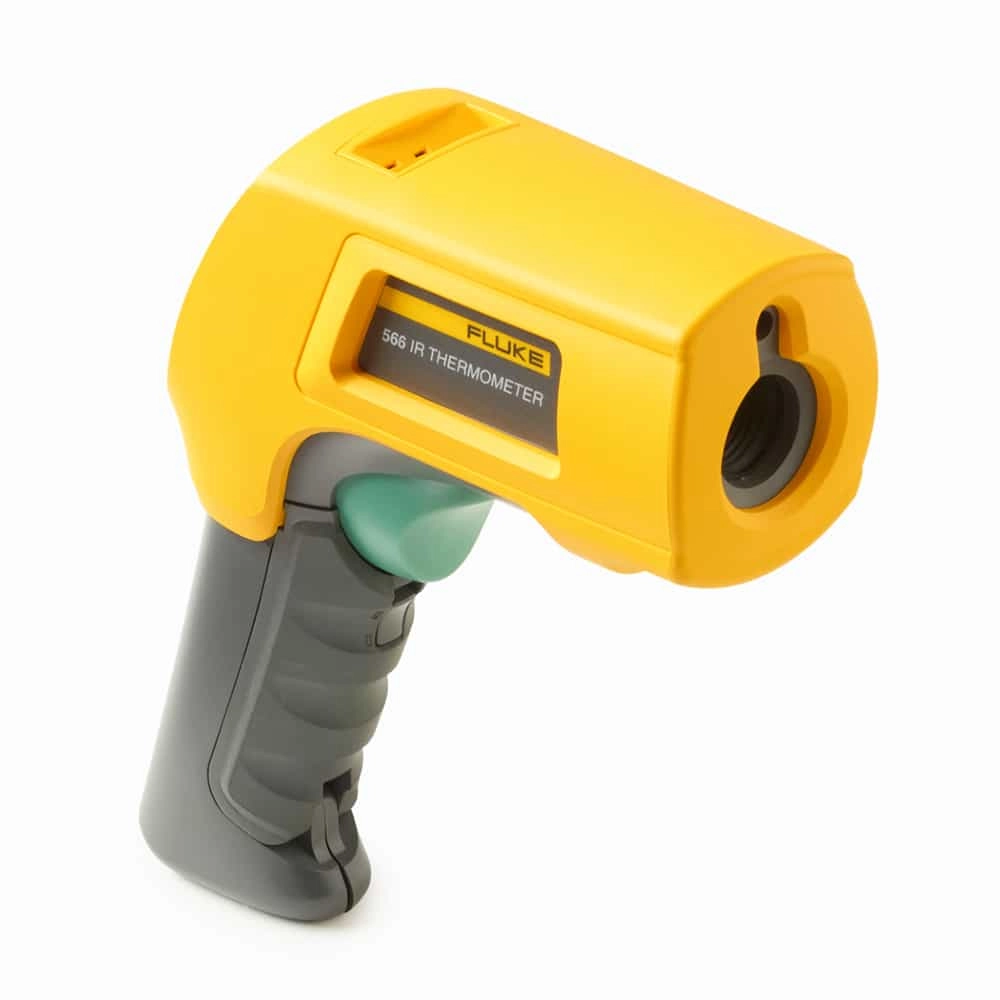

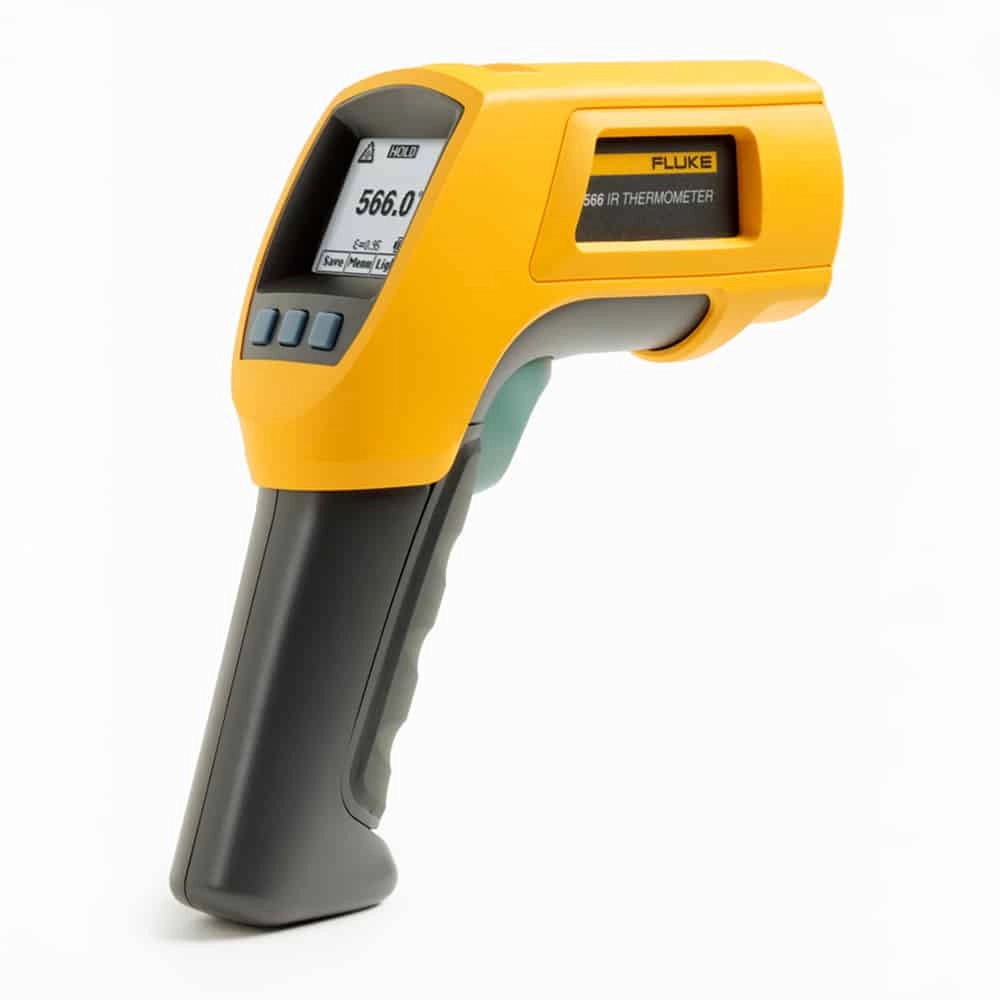

Fluke 566 Thermal Gun Infrared And Contact Thermometer, 30:1, -40 to 650°C

Model # 566

Key Features

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

Question about this product?

Measure -40°C to 650°C/-40°F to 1202°F
Easily access advanced features with the soft-key buttons and dot-matrix display
Measure smaller objects from further away; with a distance-to-spot ratio of 30:1
Compatibility with all standard miniconnector Type-K thermocouples allow you to preserve your thermocouple investments
Adjustable emissivity that allows you to confidently measure a wide variety of surfaces
Up to 20 points of data for downloading and recalling later
Two levels of backlight on the display
Features audible and visual alarms to instantly alert you to measurements outside of your set limits
Provides MAX, MIN, DIF and AVG functions to quickly identify problems

Infrared temperature range-40°C to 650°C (-40°F to 1202°F)
Infrared temperature range-40°C to 650°C (-40°F to 1202°F)
Infrared accuracy< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Infrared accuracy< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F); > 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Display resolution0.1°C / 0.1°F
Display resolution0.1°C / 0.1°F
Infrared spectral response8 µm to 14 µm
Thermocouple Type-K temperature range-270°C to 1372°C (-454°F to 2501°F)
Thermocouple Type-K input accuracy-270°C to -40°C; ±(1°C + 0.2°/1°C) (-454°F to -40°F: ±(2°F + 0.2°/1°F)) -40°C to 1372°C; ±1% or 1°C (-40°F to 2501°F: ±1% or 2°F), whichever is greater
Distance to Spot Ratio30:1
Laser sightingSingle-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm
Minimum spot size19 mm (0.75 in)
Emissivity adjustmentBy built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
DisplayDot matrix 98 x 96 pixels with function menus
Storage temperature-20°C to 60°C (-40°F to 140°F)
