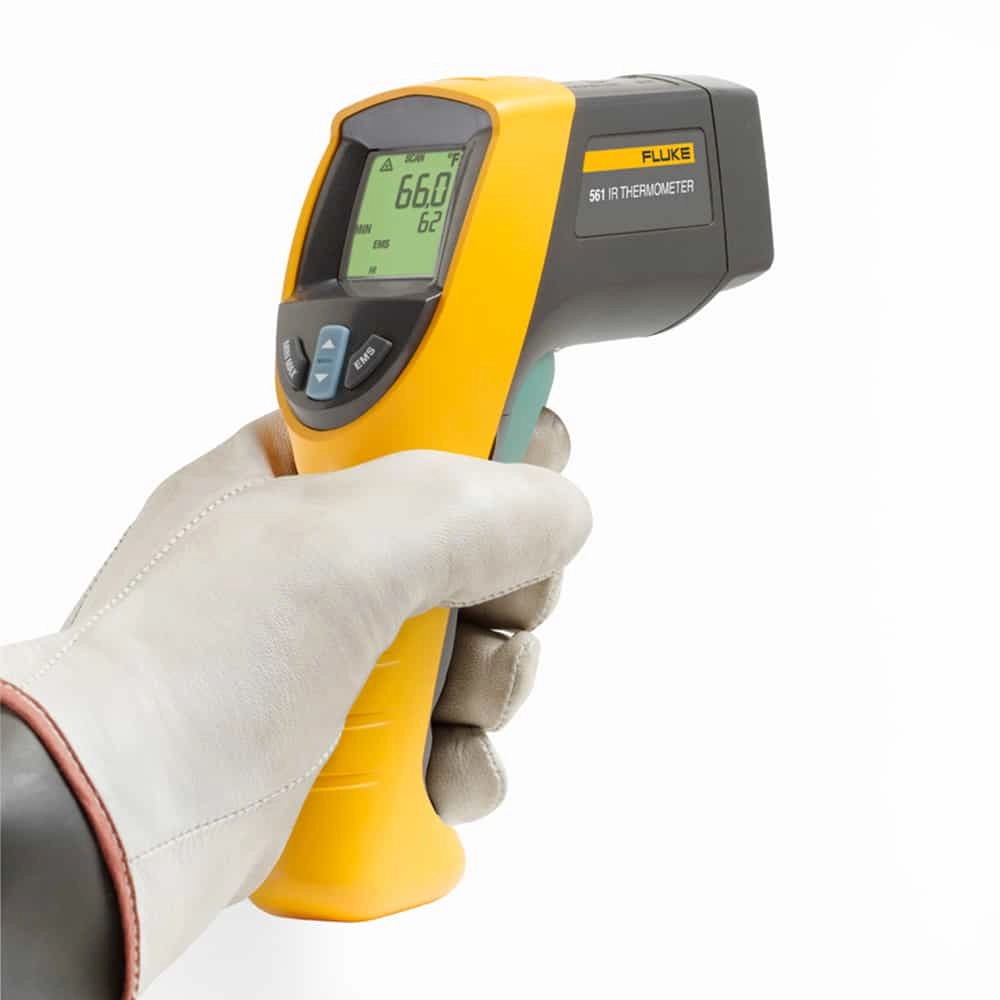

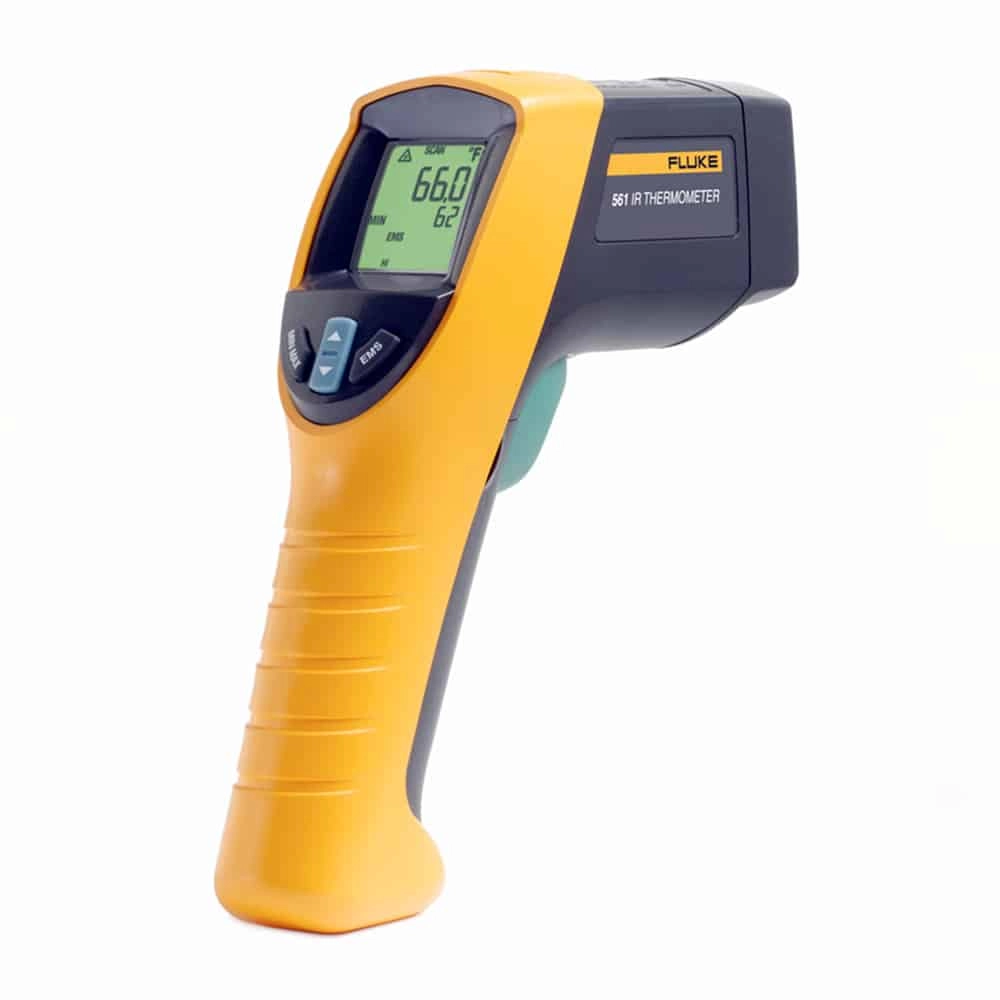

Fluke 561 HVAC/R Infrared And Contact Thermometer, 12:1, -40 to 550° C

Features

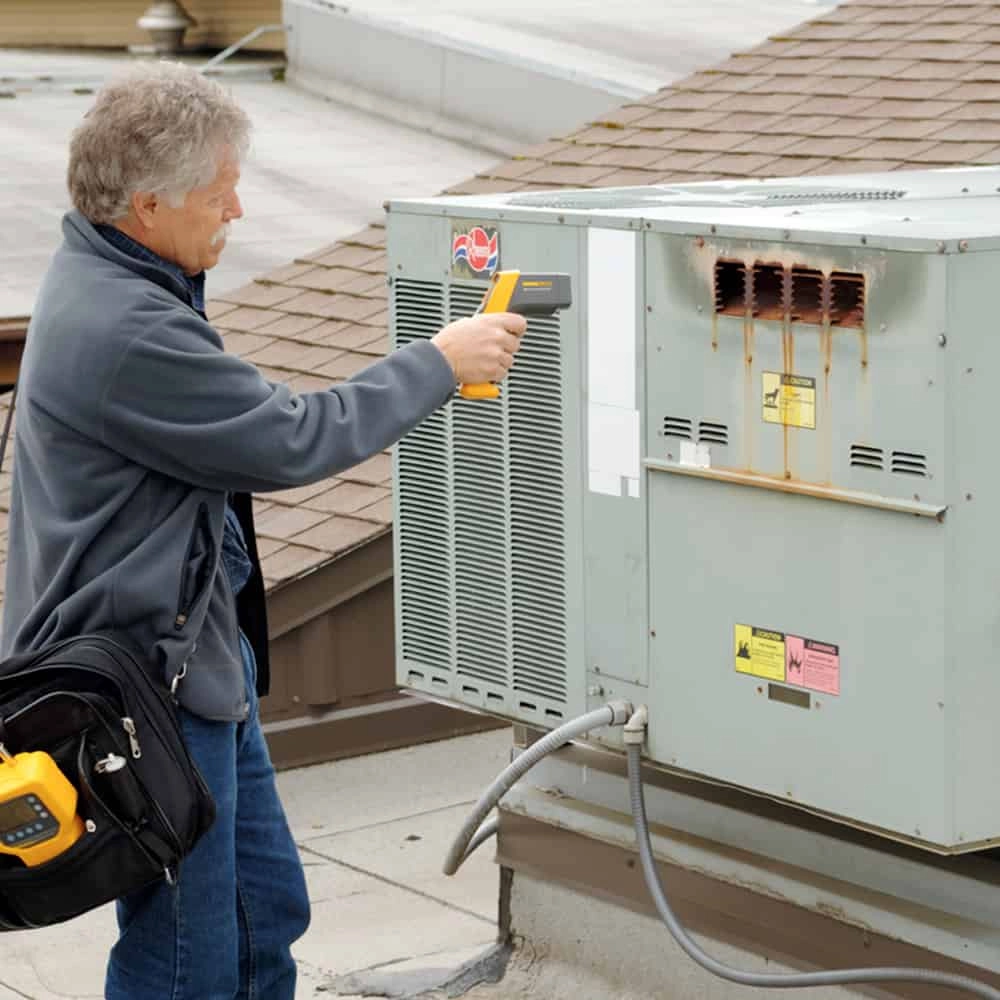

• Infrared mode - measure temperature from a distance with 12:1 distance-to-spot ratio
• Compatible with mini-connector type K thermocouples for direct surface temperature measurements (one included in the pack)

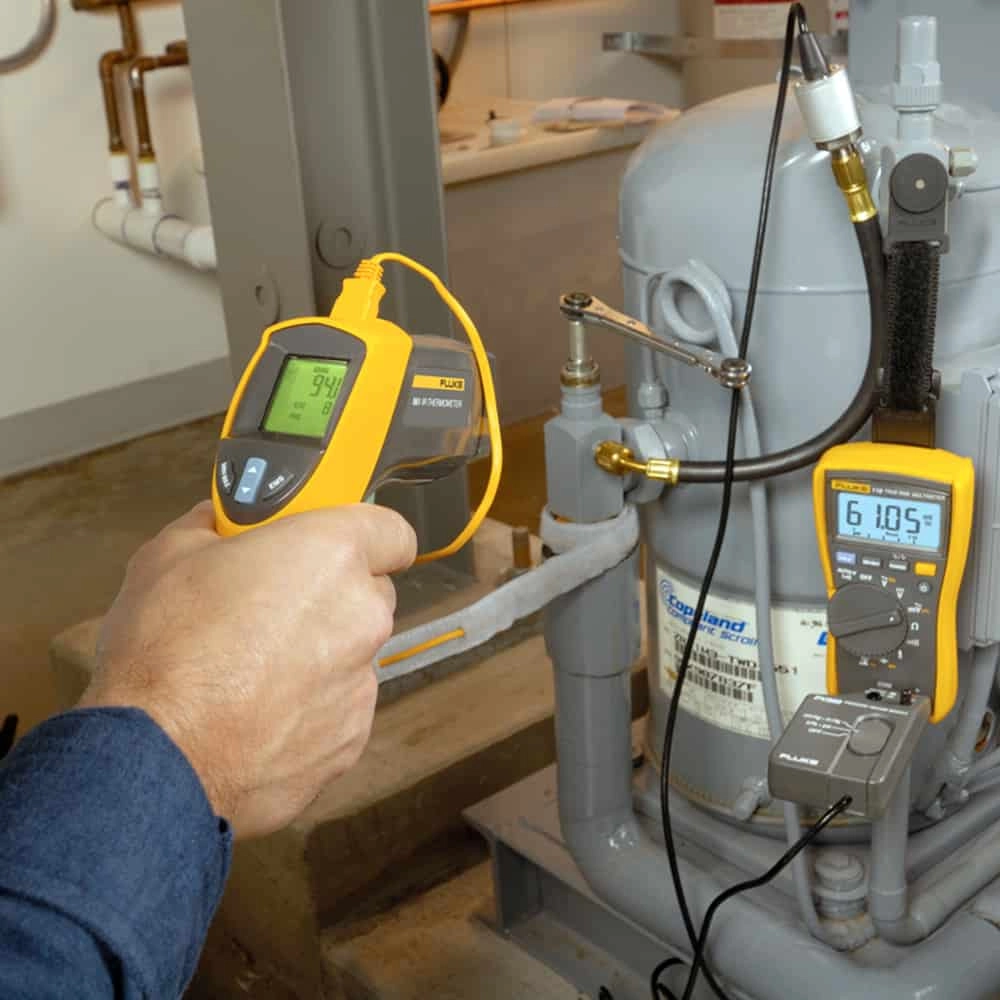

• Fabric hook-and-loop fastener probe for superheat and sub cooling/other contact/ambient measurements
• Single point laser sighting for precise measurements of non-contact temperature
• Allows easy emissivity adjustment for measuring pipes and other shiny surfaces more accurately
• Provides MIN, MAX, and DIF functions to help you quickly identify problems

Technical Information

• Temperature Range-40 to 550°C (-40 to 1022°F)
• Temperature Range-40 to 550°C (-40 to 1022°F)
• Display accuracy±1.0% of reading ±1% of reading or ±1°C (±2°F), whichever is greater below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1°
• Display accuracy±1.0% of reading ±1% of reading or ±1°C (±2°F), whichever is greater below 0°C / 32°F, ±1°C (±2°F) ±0.1°/1°
• Repeatability±0.5% of reading or ±1°C (±2°F), whichever is greater
• Repeatability±0.5% of reading or ±1°C (±2°F), whichever is greater
• Resolution0.1°C (0.1°F) of reading
• Distance to Spot (distance to spot size)12:1
• Response time500 mSec (95% of reading)
• Easy emissivity selectorAdjustable with three settings: Low (0.3), medium (0.7). high (0.95)
• Laser powerClass 2(II) operation; Output < 1 mW, wavelength 630-670 nm
• Spectral response8 µm to 14 µm
• Relative humidity10% to 90% RH non-condensing, at < 30°C (86°F)
• Operating temperature0°C to 50°C (32°F to 120°F)
• Thermocouple Type K fabric hook-and-loop fastener pipe probeYes, with a temperature range of 0°C to 100°C (32°F to 212°F) and accuracy of ±2.2°C (±4°F)

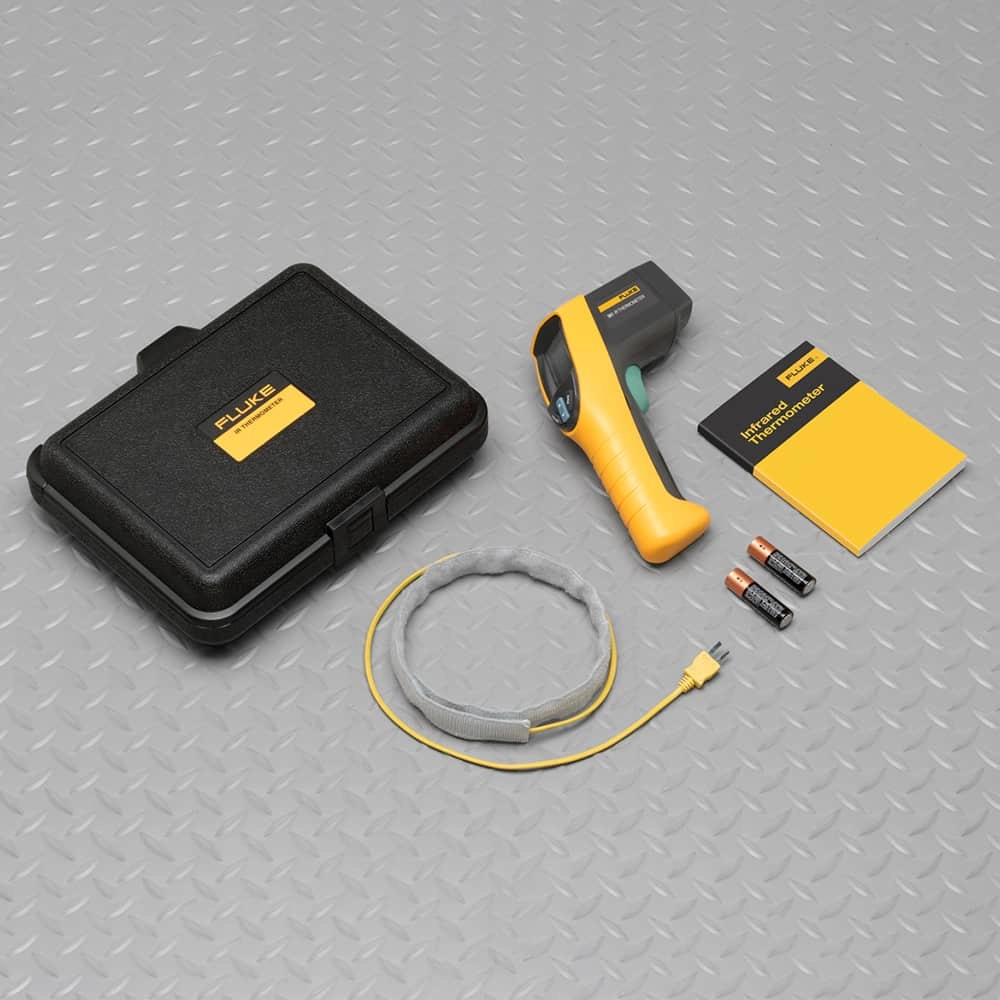

Items Included

• K-Type thermocouple
• Fabric hook-and-loop fastener pipe probe
• Hard carrying case
• 2 AA batteries
• Users manual

Downloads

Datasheet
