Fluke 381 Remote Display True RMS Clamp Meter With iFlex, 999.9A, 34mm Jaw, CAT IV 600V
Model # 381Key Features
?
Question about this product?
Features

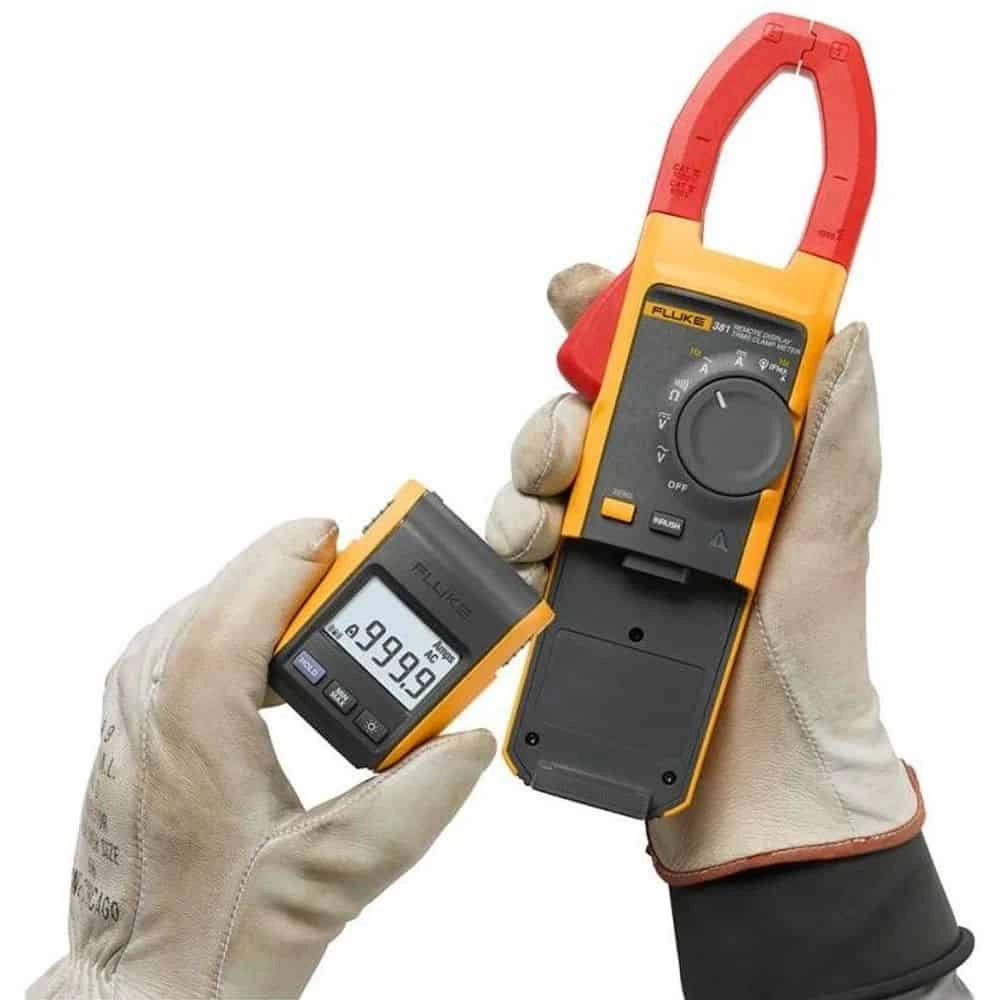

- Wireless technology allows the display to be carried up to 30 ft. away from the point of measurement for added flexibility without interference with measurement accuracy
- The removable magnetic display can be conveniently mounted where it is easily seen iFlex flexible current probe expands the measurement range to 2500 A ac CAT IV 600 V; CAT III 1000 V Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings

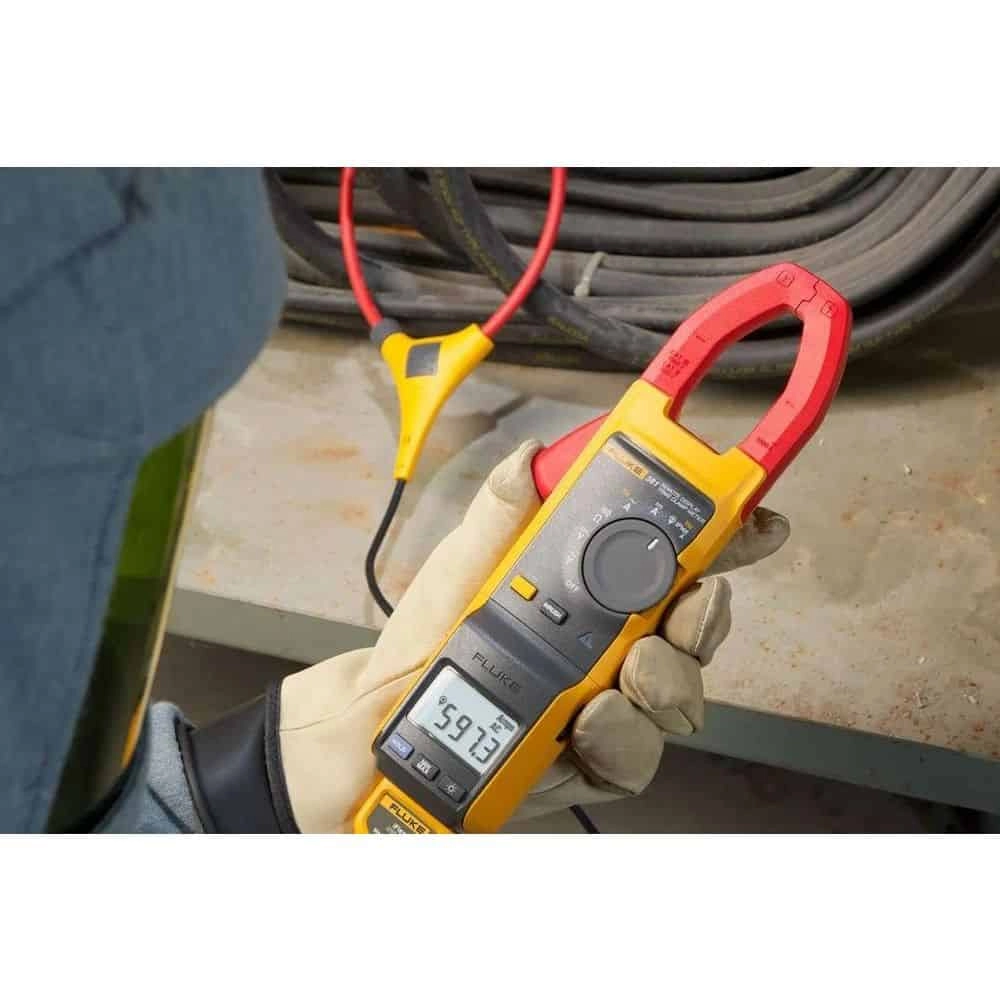

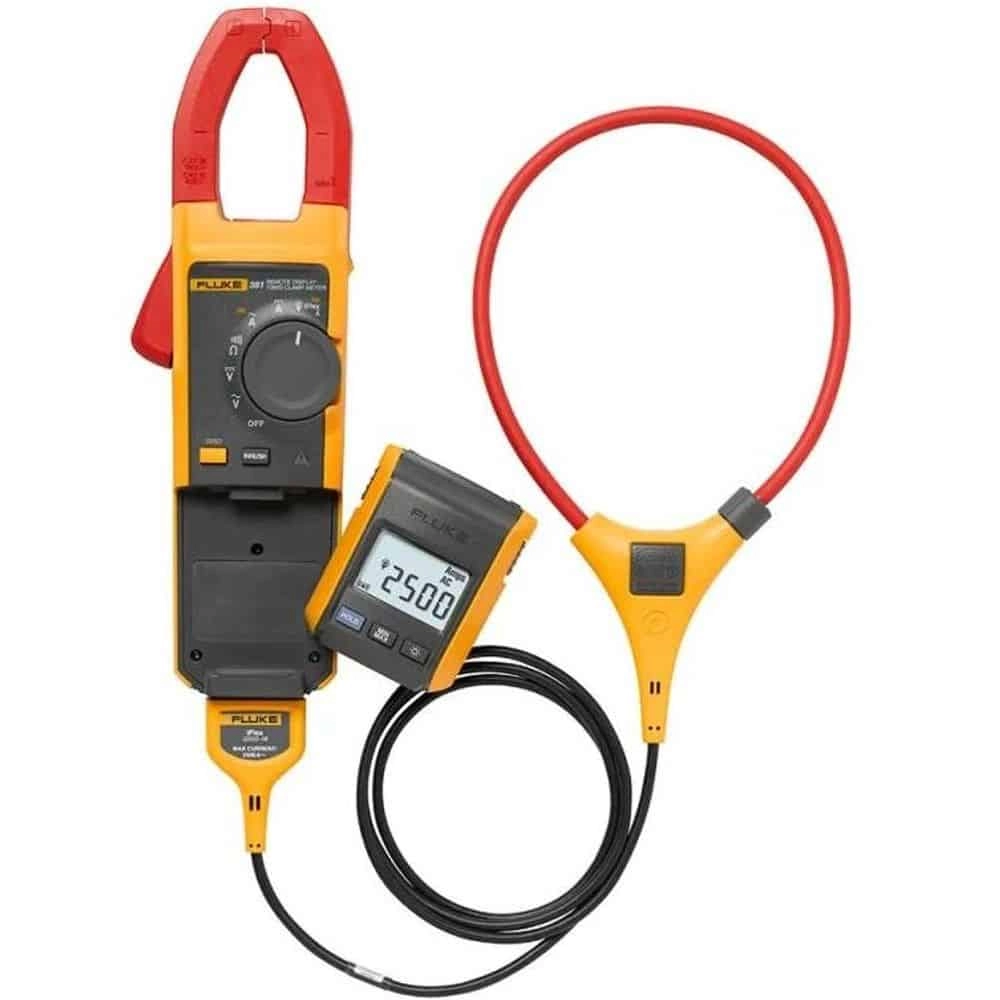

- iFlex® Flexible Current Probe expands the measurement range to 2500 A AC
- Integrated low pass filter and state-of-the-art signal processing allows for use in noisy electrical environments while providing stable readings
- Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- Ergonomic design fits in your hand and can be used while wearing personal protective equipment
Technical Information
- AC Current via Jaw Range999.9 A
- AC Voltage1000V
- Jaw Size34mm
- Safety RatingCAT IV 600V, CAT III 1000V
- Resolution0.1 A
- Accuracy2% ± 5 digits (10-100 Hz)
- Crest Factor (50/60 Hz)3 @ 500 A
- AC Current via Flexible Current Probe Range999.9 A / 2500 A (45 Hz – 500 Hz)
- Resolution0.1 A / 1 A
- Accuracy3% ± 5 digits
- Operating Temperature-10°C to +50°C
- Temperature CoefficientsAdd 0.1 x specified accuracy for each degree C above 28°C or below 18°C
- Wireless Frequency2.4 GHz ISM Band 10 meter range
Items Included
- 18-inch iFlex flexible current probe
- Coated instruction card
- Safety information sheet
- Soft carrying case
- TL75 test leads
- Five AA Alkaline batteries
