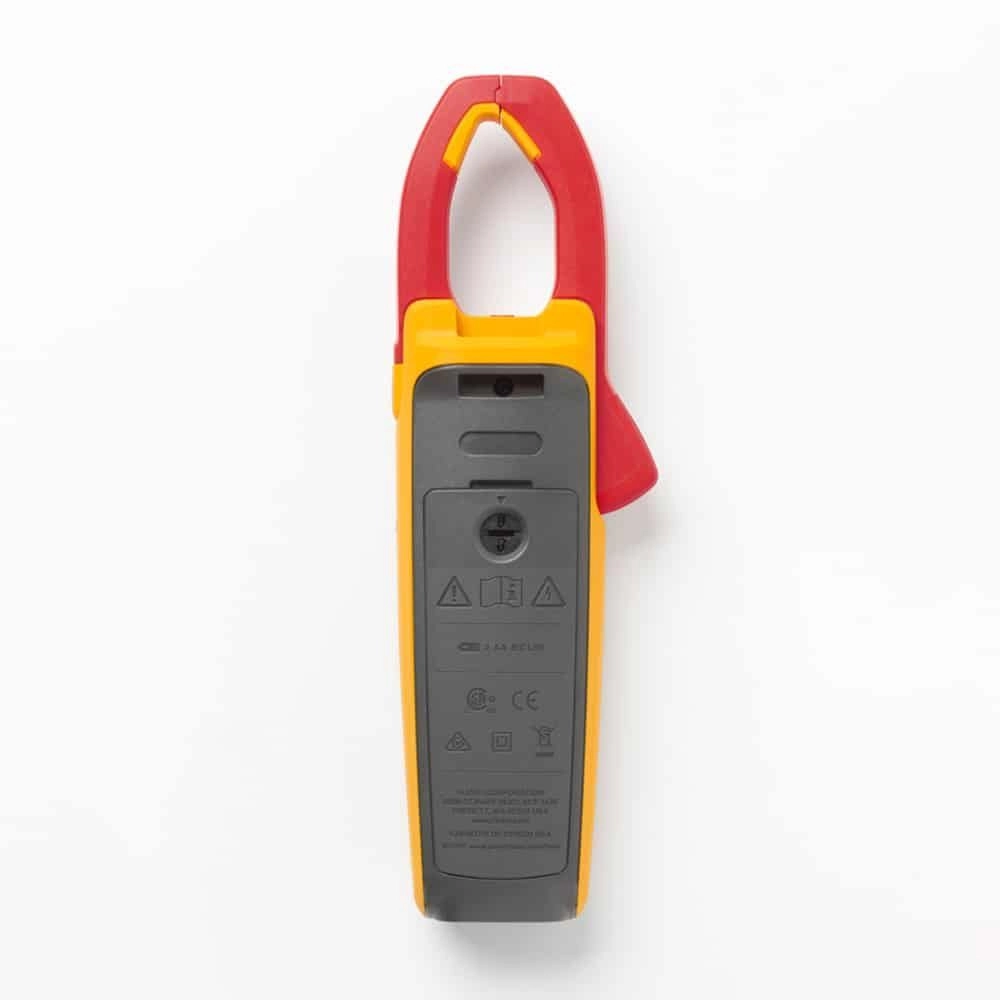

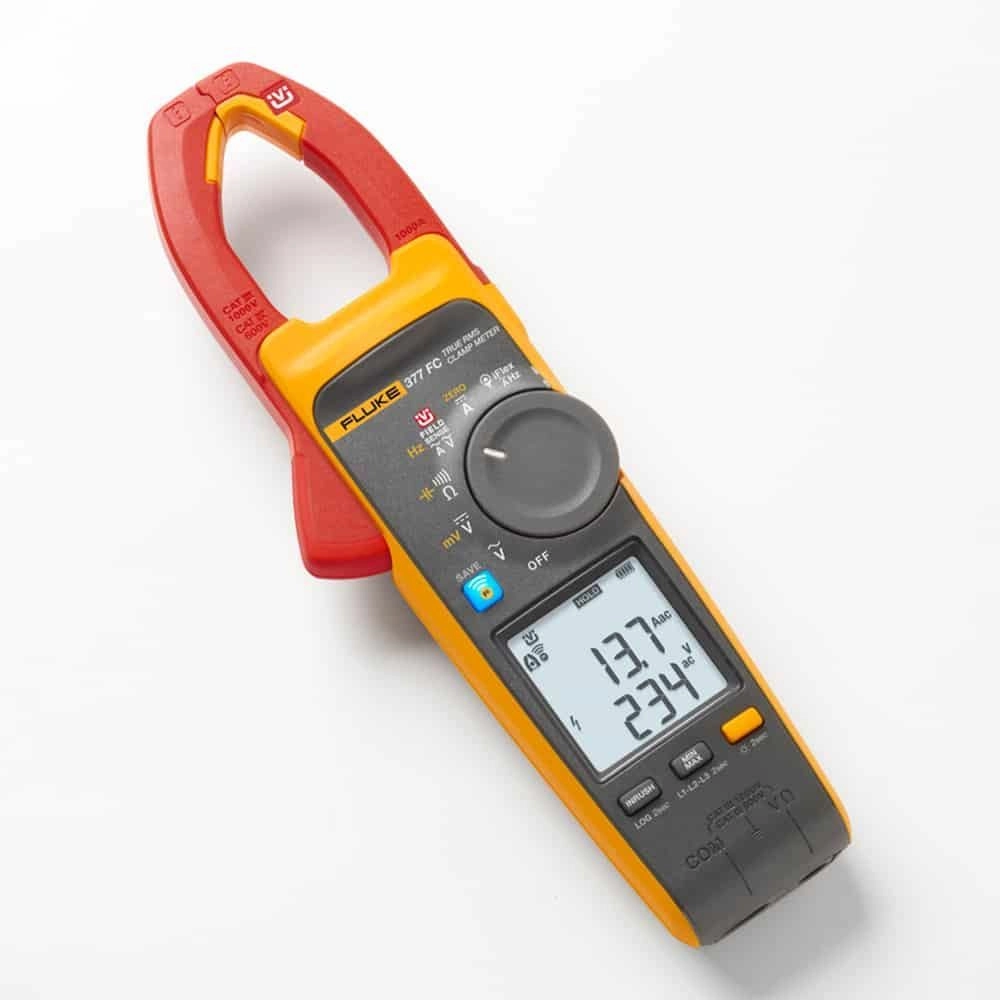

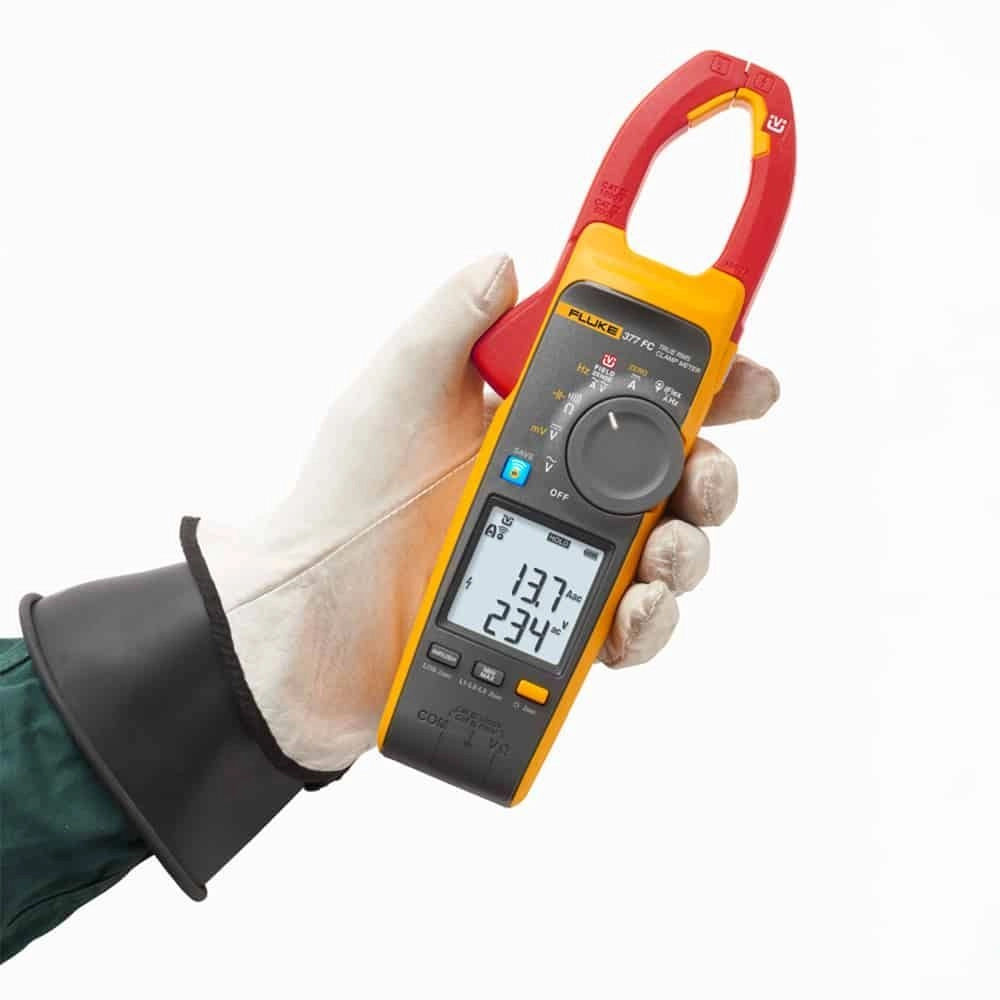

Fluke 377 FC True RMS AC/DC Clamp Meter with iFlex Probe, 2500A, 34mm Jaw, CAT IV 600V

Features

• Measure voltage and current with your clamp jaw
• Faster, safer testing - all without touching a live wire - using FieldSense™ technology
• Complete 3-phase voltage and current tests in 3 quick steps

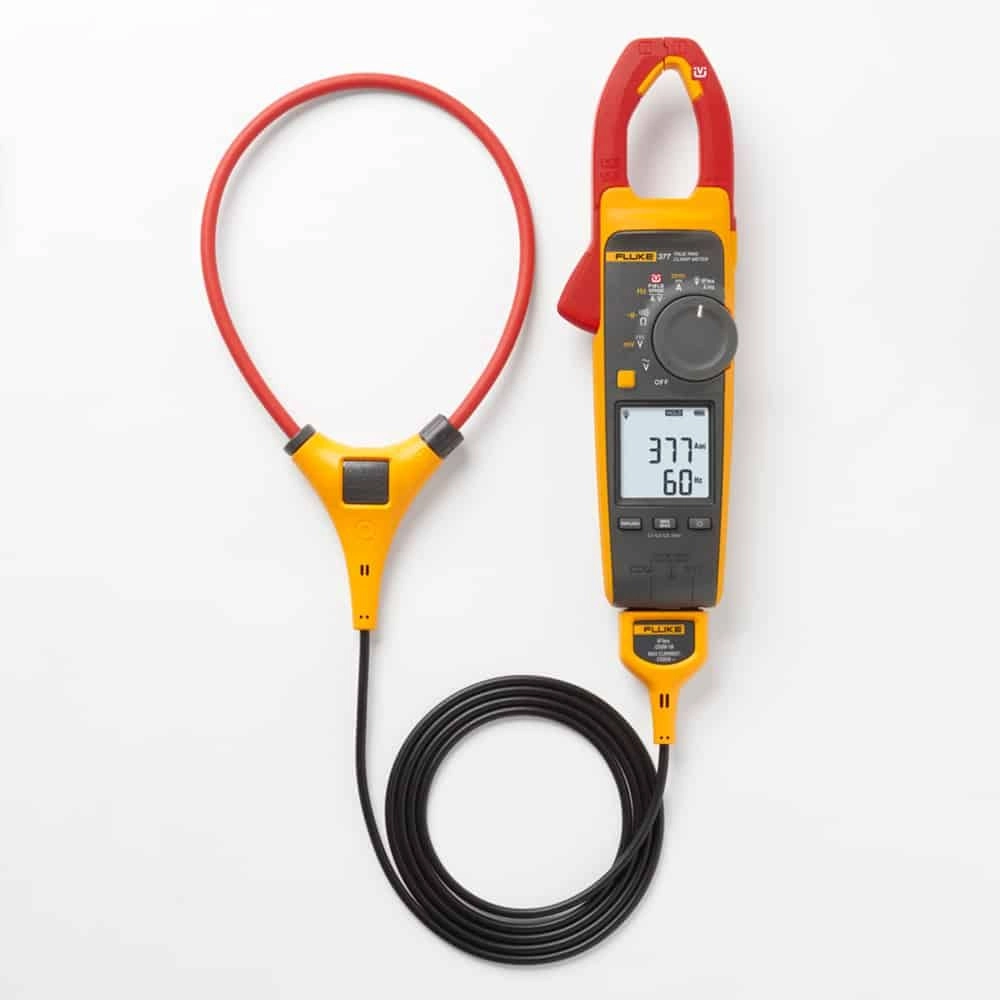

• Measure extremely high current with iFlex probe
• Complete 3-phase measurements in quick, easy steps
• Easy to see, easy to use with included tools
• Record, analyze, share results with Fluke Connect® software

Technical Information

• AC Current2500A
• AC Voltage1000V
• Jaw Size34mm
• Safety RatingCAT IV 600V, CAT III 1000V
• DC Voltage1000V
• DC Current999.9A
• DC Current (mV Range)500mV
• AC Current via Jaw999.9A
• Current Probe Diameter7.5mm
• Current Probe Length1.8mm
• Resistance60kΩ
• Frequency5Hz to 500 Hz
• Capacitance1000μF
• Crest Factor (50/60 Hz)3 @ 500A, 2.5 @ 600A, 1.42 @ 1000A
• Crest Factor (50/60Hz with Probe )3.0 @ 1100A, 2.5 @ 1400A, 1.42 @ 2500A
• Batteries2 AA IEC LR6 alkaline
• Size (L x W x H)274 mm x 86 mm x 47 mm

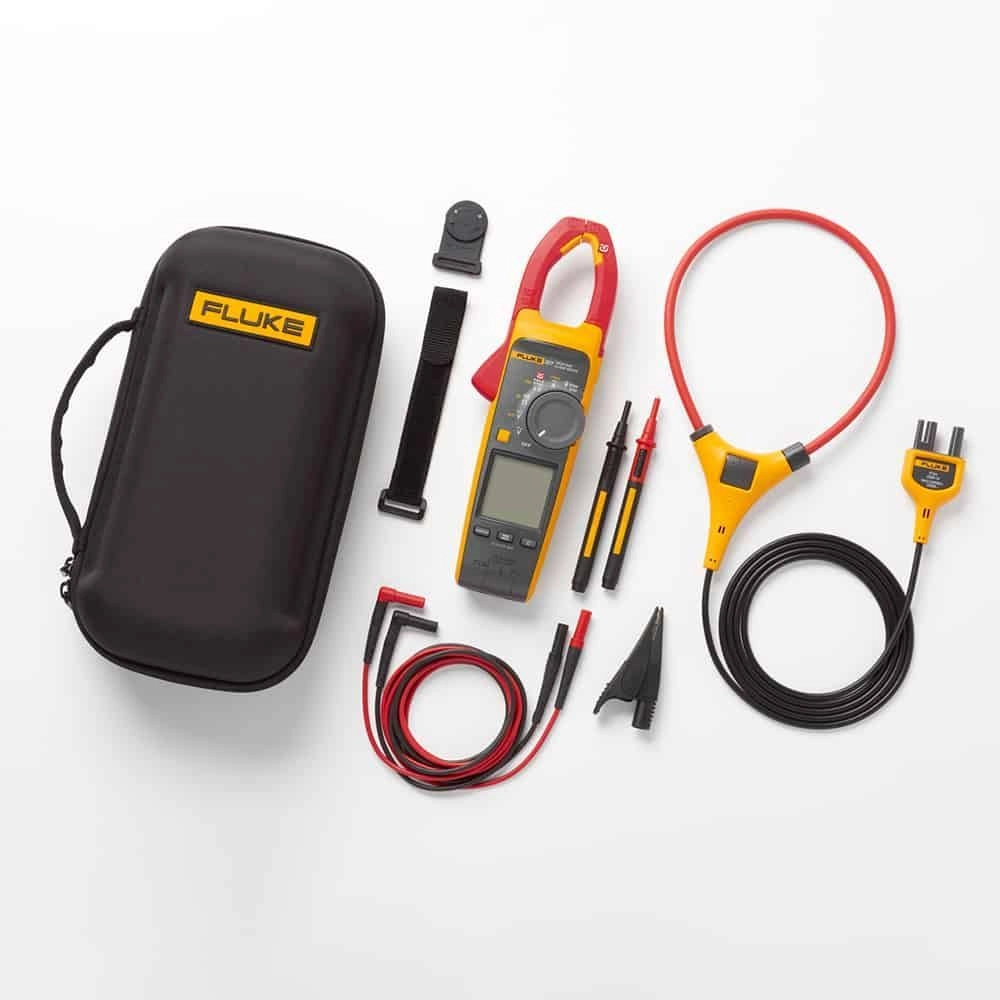

Items Included

• 1 x Fluke 377 FC Non-Contact Voltage True-RMS AC/DC Clamp Meter
• 1 x TL224 Test Leads
• 1 x TP175 TwistGuard™ Test Probes
• 1 x AC285 black grounding clip
• 1 x i2500-18 iFlex® Flexible Current Probes 18 inch (48 cm)
• 1 x TPAK ToolPak™ Magnetic Meter Hanger
• 1 x Premium carrying case
• 1 x Quick reference guide

Downloads

Datasheet
