Fluke 376FC True RMS AC/DC Clamp Meter with iFlex Probe, 2500A, 34mm Jaw, CAT III 1000V, with 500mV DC Current and Capacitance Measurement

Features

• iFlex flexible current probe expands the measurement range to 2500 A ac
• VFD low pass filter for accurate measurements of non-linear signals
• Remotely log, trend and monitor to pinpoint intermittent faults
• Inrush measurement to filter out noise and capture starting current
• Min, max, average, and inrush recording to capture variations automatically
• 500 mV DC measurement range to interface with other accessories
• Allows frequency measurement to 500 Hz with body jaw and iFlex probe

Technical Information

• AC Current2500A
• AC Voltage1000V
• Jaw Size34mm
• Safety RatingCAT IV 600V, CAT III 1000V
• DC Voltage1000V
• DC Current999.9A
• DC Current (mV Range)500mV
• AC Current via Jaw999.9A
• Current Probe Diameter7.5mm
• Current Probe Length1.8mm
• Resistance60kΩ
• Frequency5Hz to 500 Hz
• Capacitance1000μF
• Crest Factor (50/60 Hz)2.5 @ 600A
• Crest Factor (50/60Hz with Probe )2.5 @ 1400A, 1.42 @ 2500A
• Batteries2 AA, NEDA 15A, IEC LR6
• Size (L x W x H)249 x 85 x 45 mm

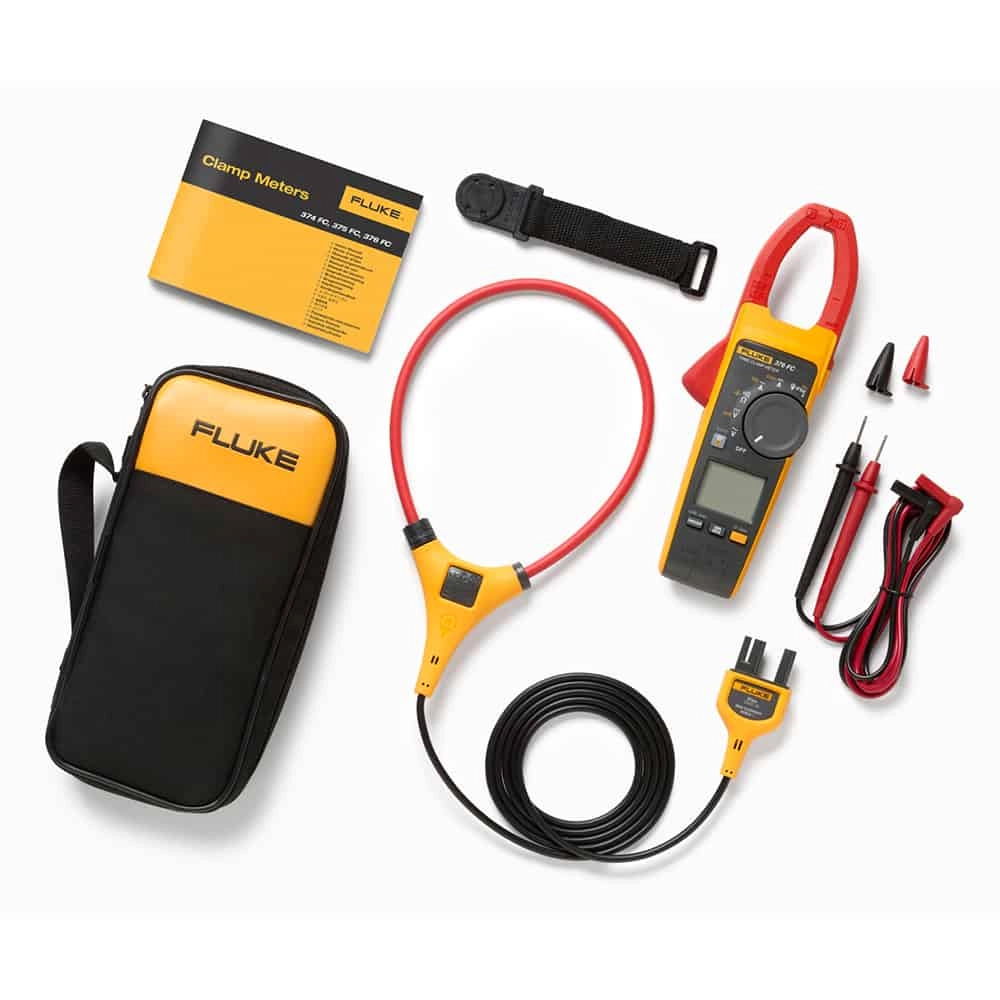

Items Included

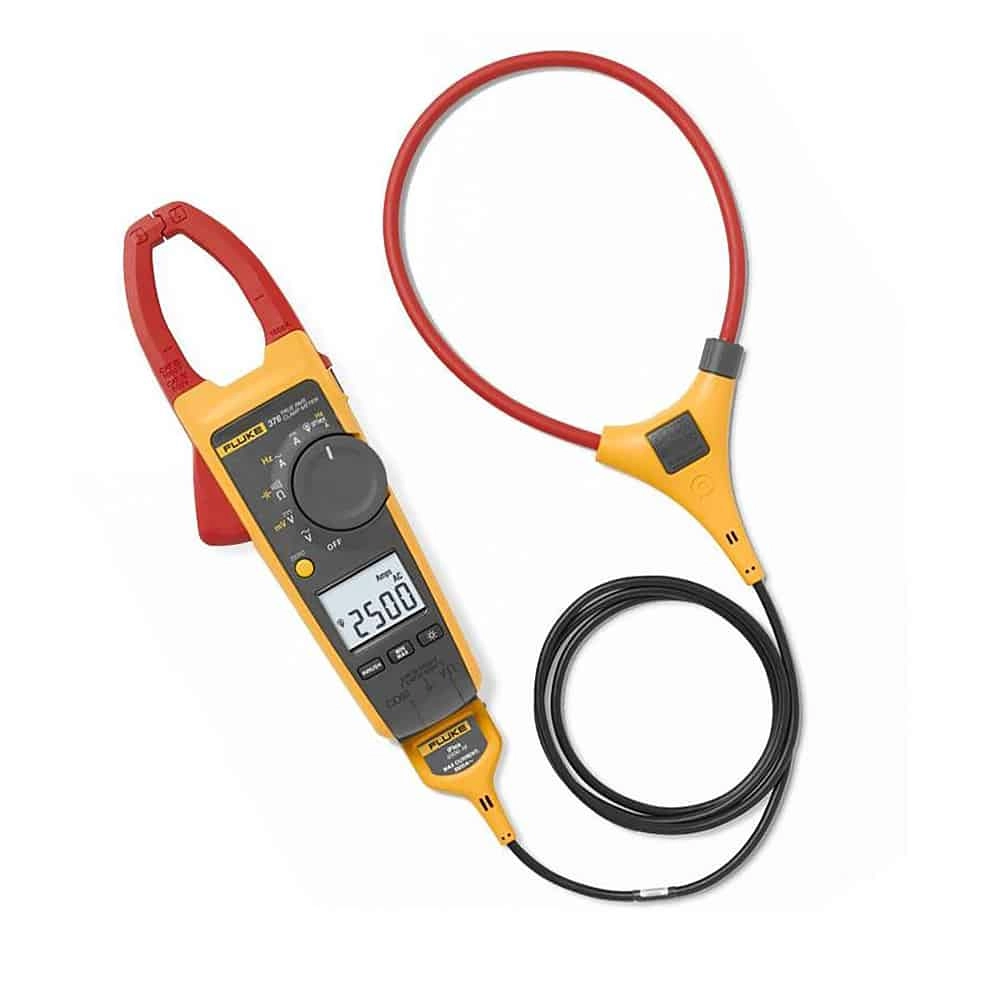

• Fluke 376 FC True-RMS Clamp Meter with iFlex 18-inch iFlex® Flexible Current Probe
• TPAK magnetic hanging strap
• TL75 Test Leads
• Two AA batteries (Installed)
• Soft carrying case
• Coated instruction card
• Safety information sheet
