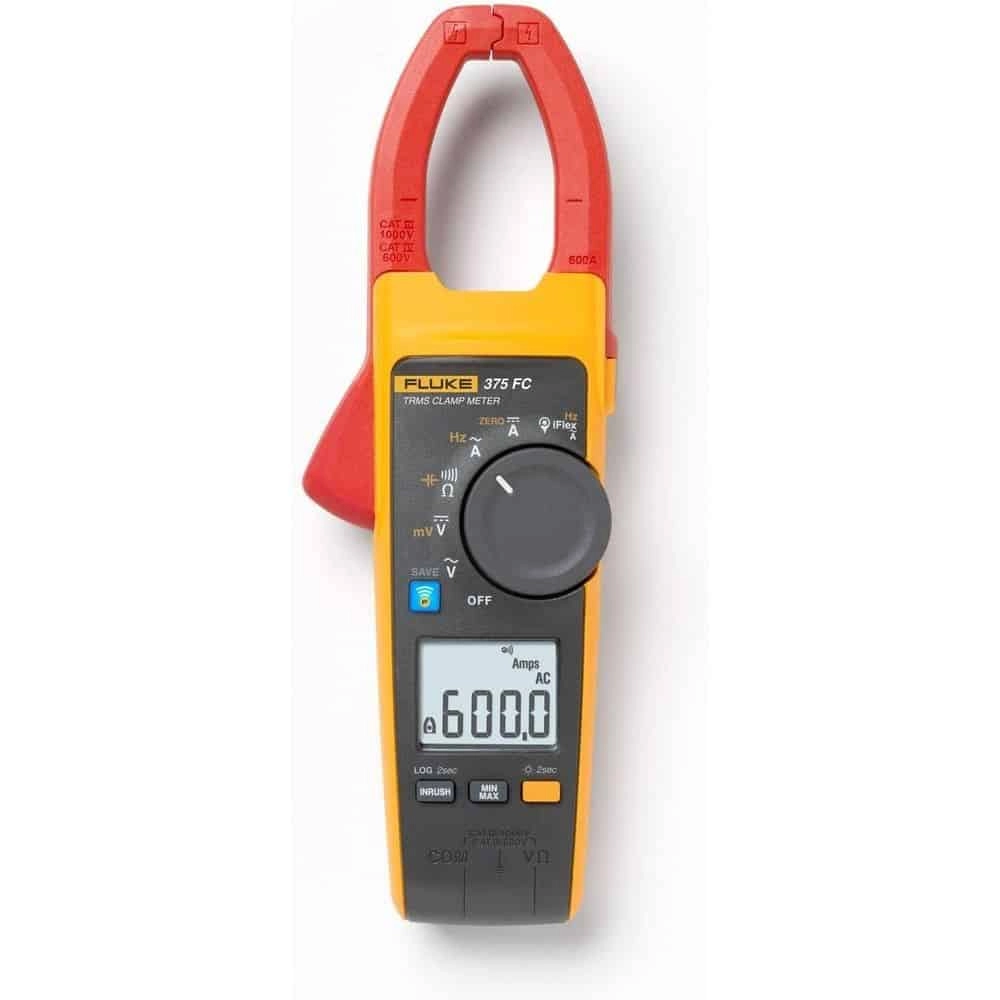

Fluke 375FC True RMS AC/DC Clamp Meter, 600A, 34mm Jaw, CAT III 1000V, with 500mV DC Current and Capacitance Measurement

Features

• iFlex flexible current probe (sold separately) expands the measurement range to 2500 A ac while providing increased display flexibility, ability to measure awkward sized conductors and improved wire access
• Features CAT III 1000 V, CAT IV 600 V safety rating
• True-rms ac voltage and current for accurate measurements on non-linear signals
• 500 mV dc measurement range to interface with other accessories
• Integrated low pass filter and state of the art signal processing allows for use in noisy electrical environments while providing stable readings
• Proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it

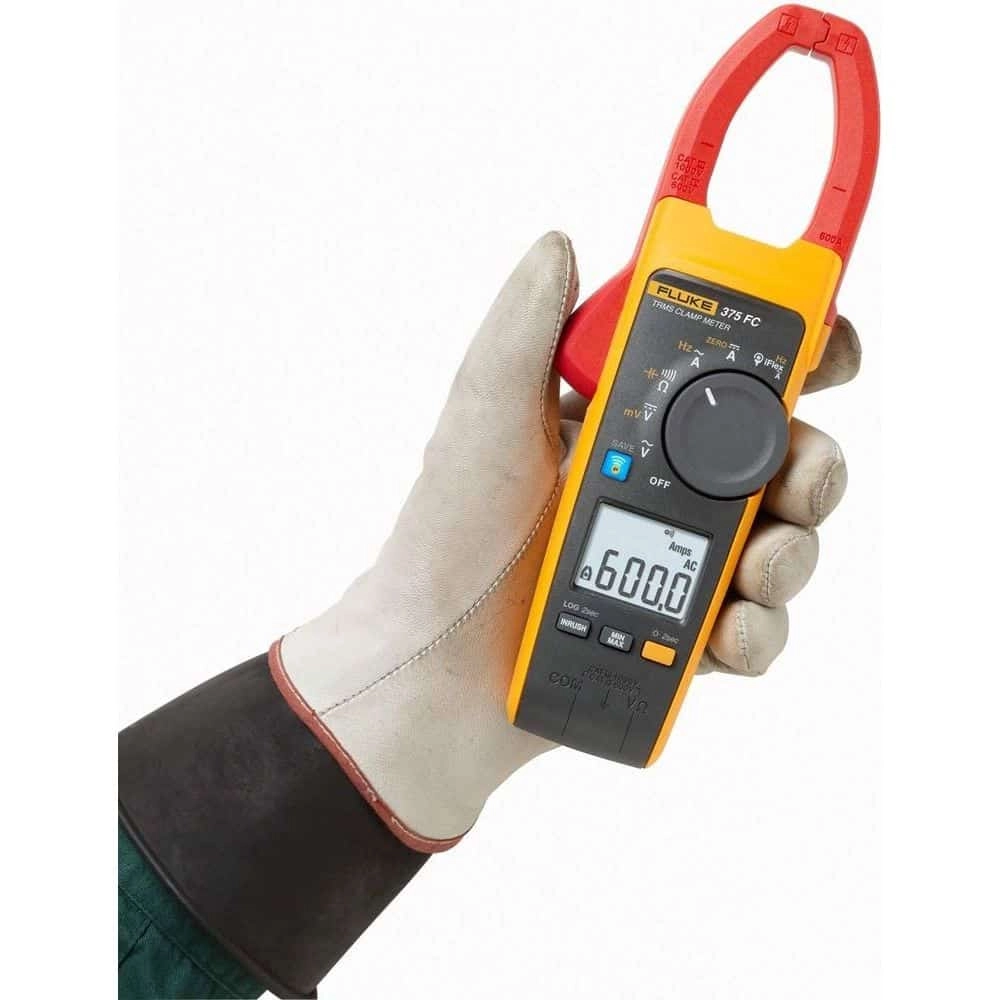

• Ergonomic design fits in your hand and can be used while wearing protective equipment
• Large, easy to read backlight display automatically sets the correct measurement range so you do not need to change the switch positions while taking a measurement

Technical Information

• AC Current600A
• AC Voltage1000V
• Jaw Size34mm
• Safety RatingCAT IV 600V, CAT III 1000V
• DC Voltage1000V
• DC Current600A
• DC Current (mV Range)500mV
• Resistance60kΩ
• Frequency Range5Hz to 500Hz
• Capacitance1000μF
• Crest Factor (50/60 Hz)3 @ 500A, 2.5 @ 600A
• Crest Factor (50/60Hz with Probe )3.0 @ 1100A, 2.5 @ 1400A, 1.42 @ 2500A
• Batteries2 AA, NEDA 15A, IEC LR6
• Size (L x W x H)249 x 85 x 45 mm

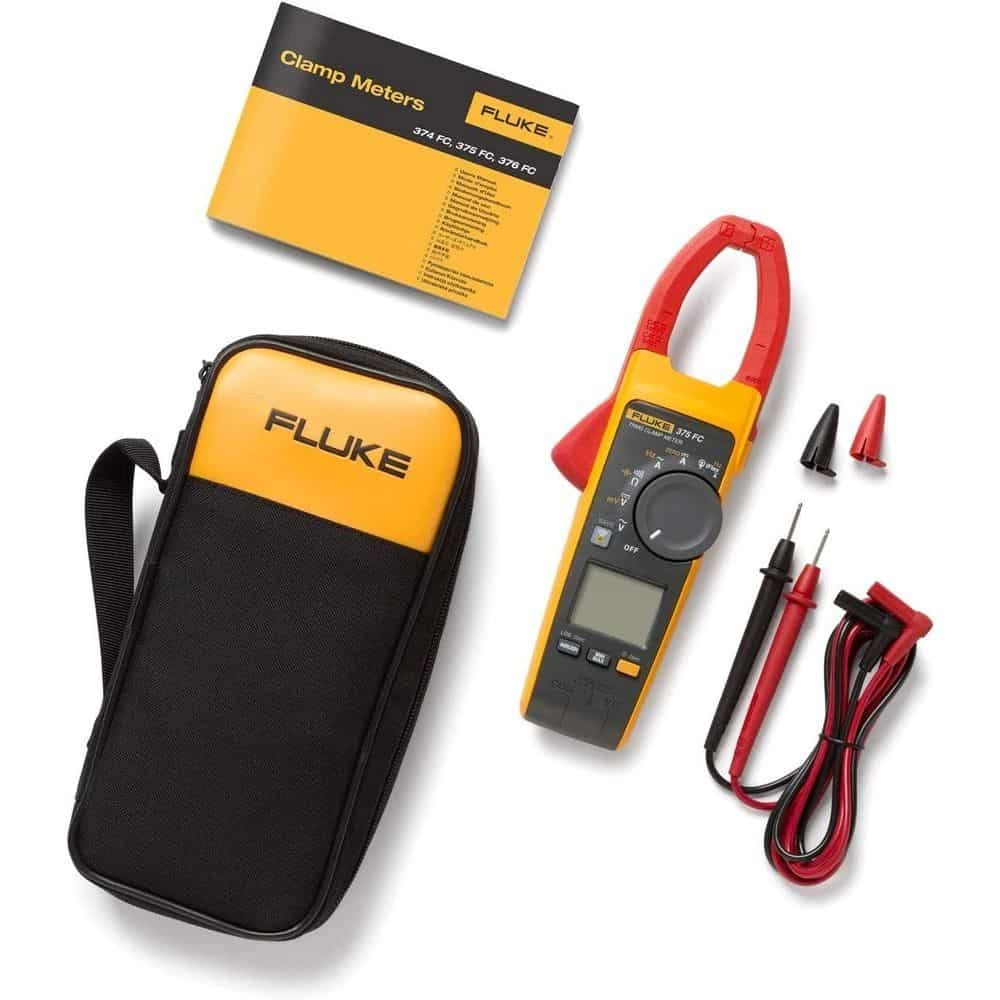

Items Included

• Soft carrying case
• TL75 test leads
• Two AA Alkaline batteries
• Coated instruction card
• Safety information sheet
