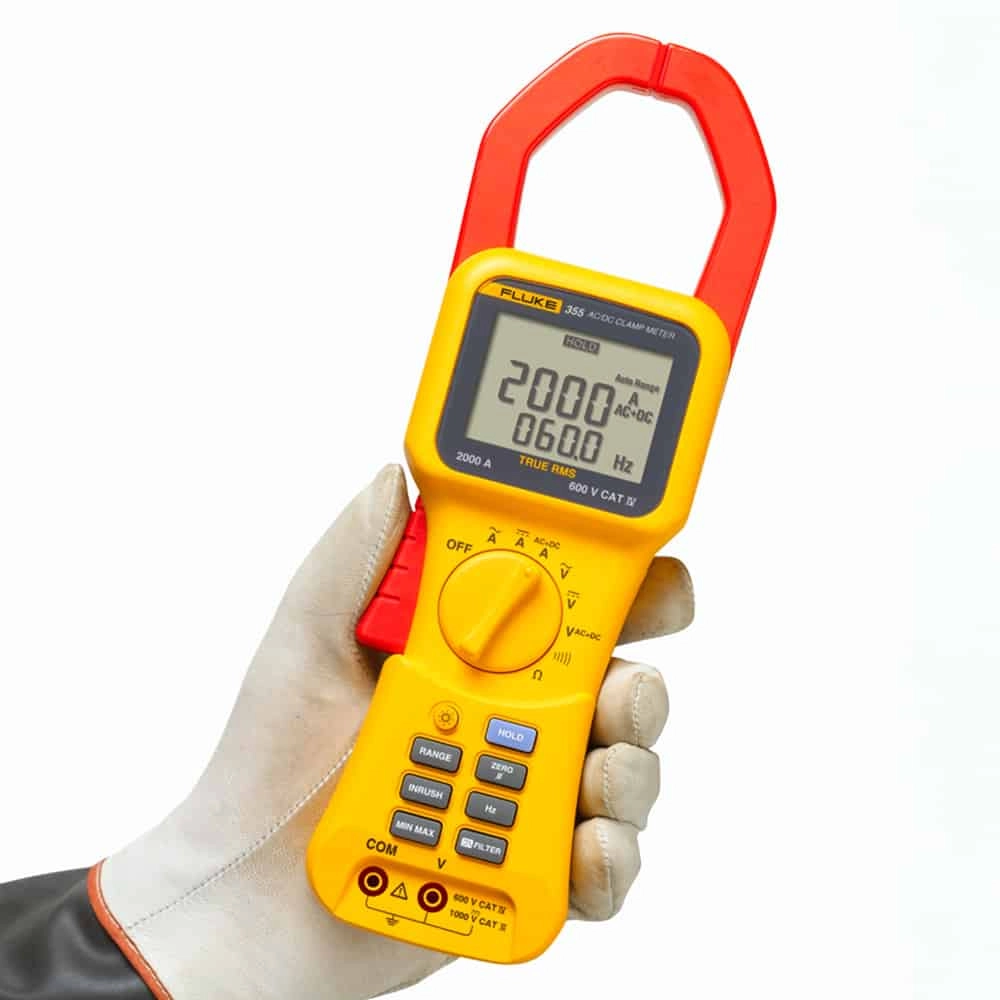

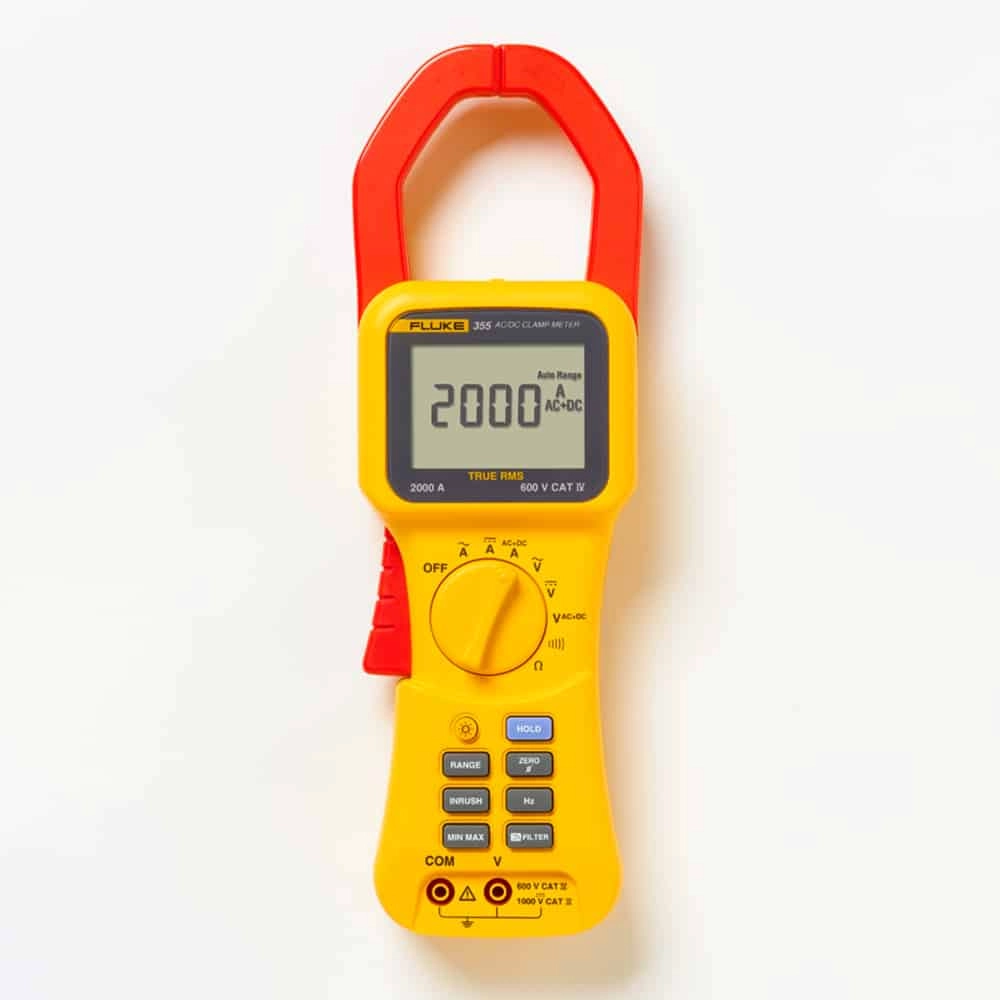

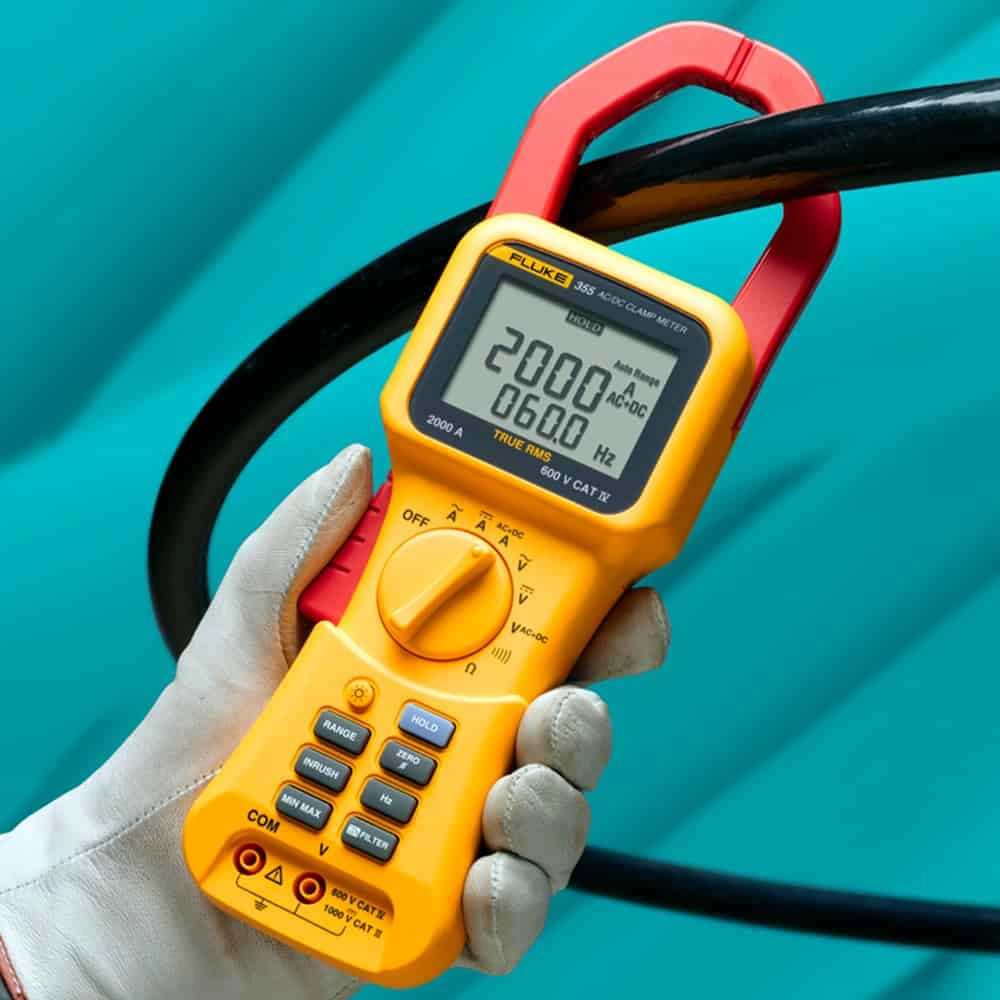

Fluke 355 True RMS AC/DC Clamp Meter, 2000A, 58mm Jaw, CAT IV 600V

Features

• Reliably handle a wide range of high-current applications with 2000 A AC + DC True RMS, 1400 A AC, and 2000 A DC
• The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors
• CAT IV 600 V, CAT III 1000 V rating for added user protection
• High voltage measurement of 1000 V AC + DC True RMS, 600 V AC, and 1000 V DC allows the user to perform multiple tests with only one tool
• Resistance to 400K ohms coupled with a continuity beeper provide the convenience of a multimeter in a clamp meter.
• Accurately measure frequency up to 1 kHz for optimum troubleshooting
• Quickly analyze readings using the MIN, MAX, and AVG functions
• A large backlit display allows for easy visibility in low-lit areas
• Use the display hold feature to capture readings even when the display cannot be viewed

Technical Information

• AC Current2000A
• AC Voltage400V
• Jaw Size58mm
• Safety RatingCAT IV 600V, CAT III 1000V
• DC Voltage1000V
• DC Current2000A
• Resistance400kΩ
• Continuity≤30 Ω
• Frequency5Hz-1kHz
• Batteries6x 1.5 V AA NEDA 15 A or IEC LR6
• Dimensions (L x W x D)300 x 98 x 52 mm

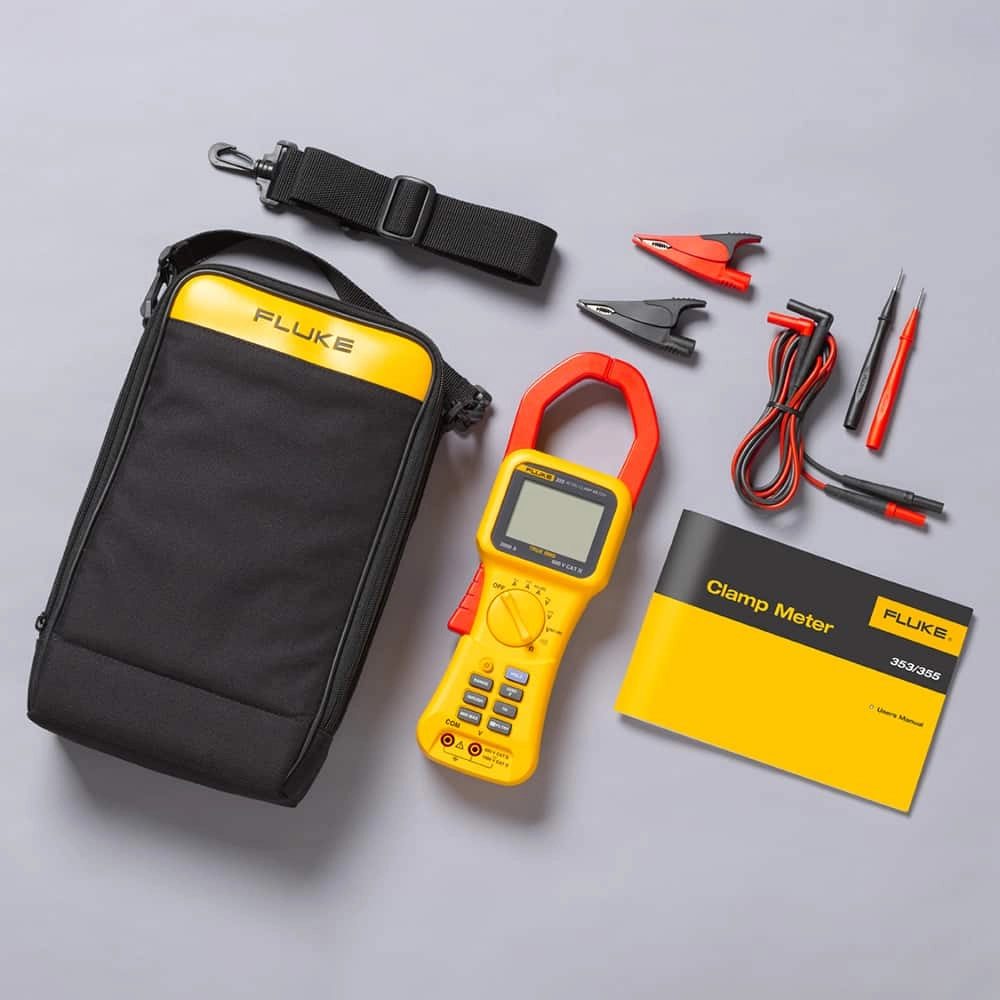

Items Included

• C43 soft carrying case
• 6 AA batteries
• TL224 1.5 m silicone rubber test leads
• TP2 test probes
• AC285 alligator clips
• User manual
• 3 year warranty

Downloads

DatasheetDatasheet
