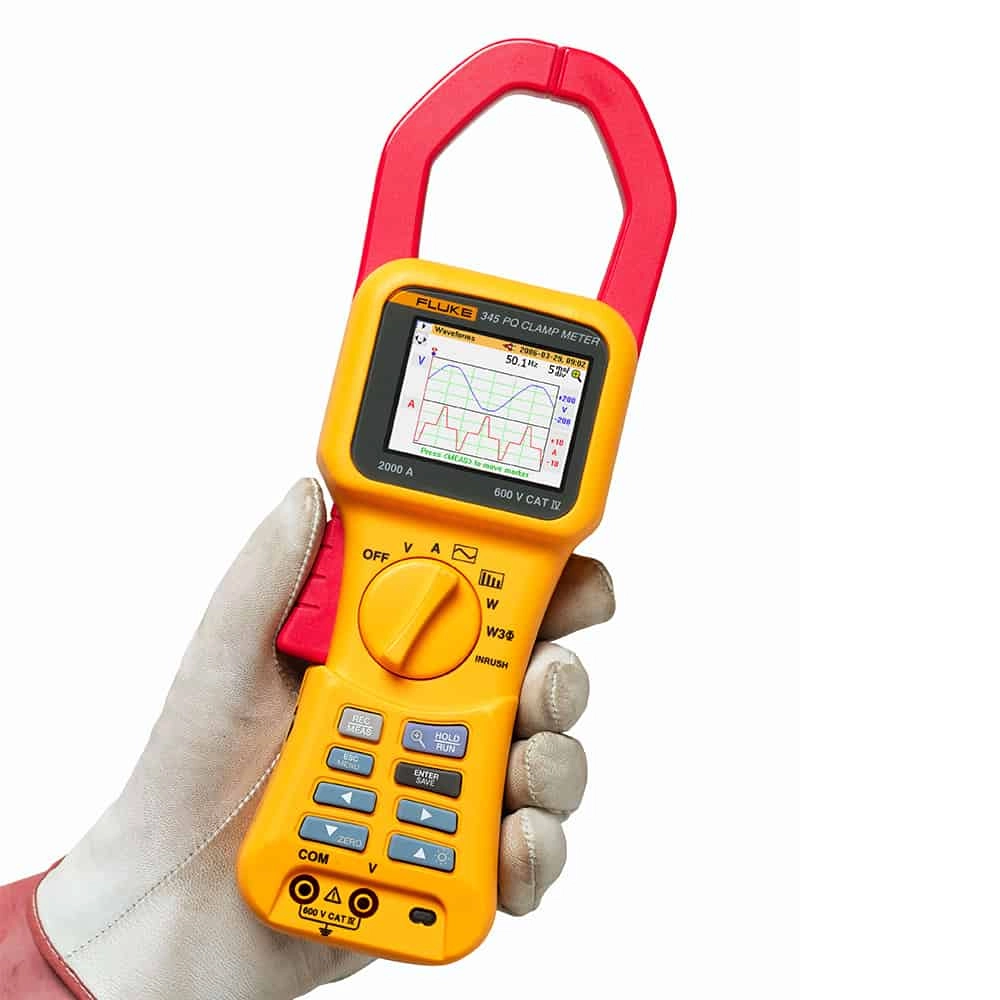

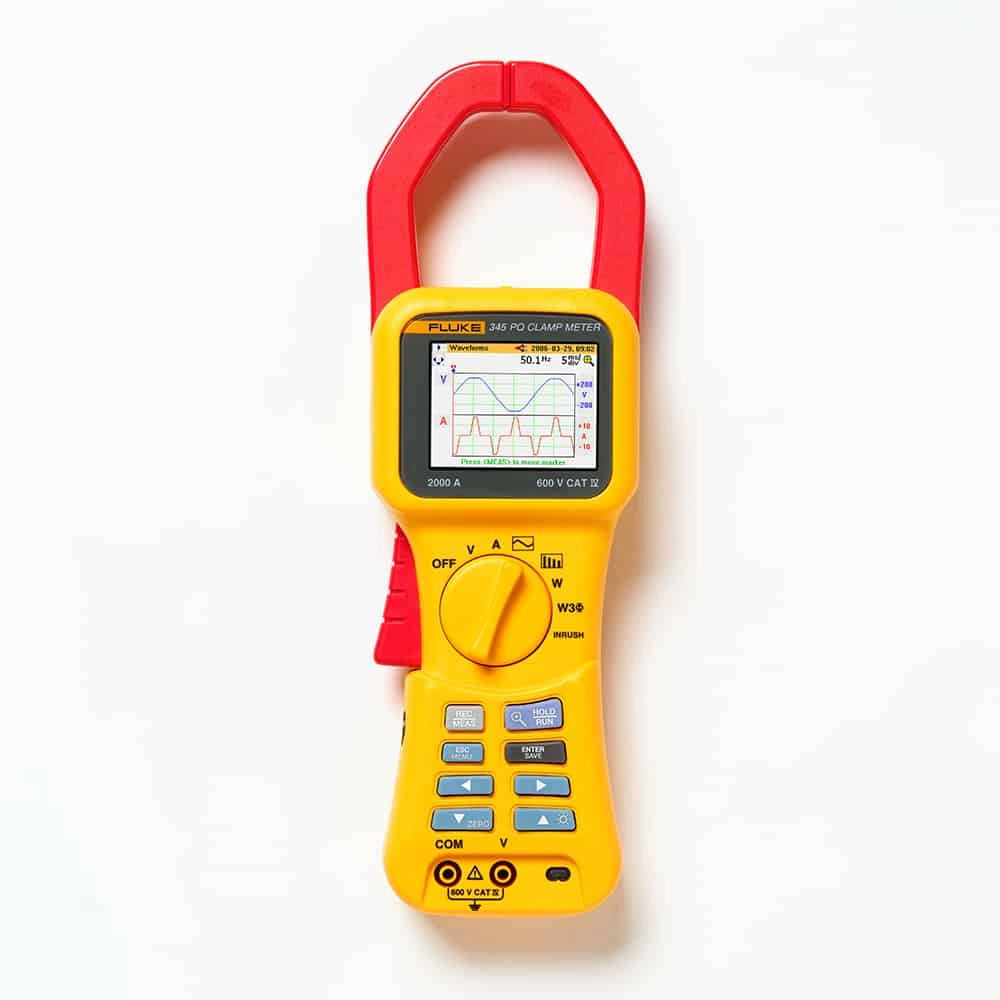

Fluke 345 Power Quality Clamp Meter, CAT IV 600V, 2000A DC

Model # 345

Key Features

Qty:

Add ISO/ IED 17025 accredited calibration to this quote.Learn more.

Question about this product?

AC/DC current: Clamp-on measurement of ac current up to 1400 A rms and dc current up to 2000 A without breaking the circuit

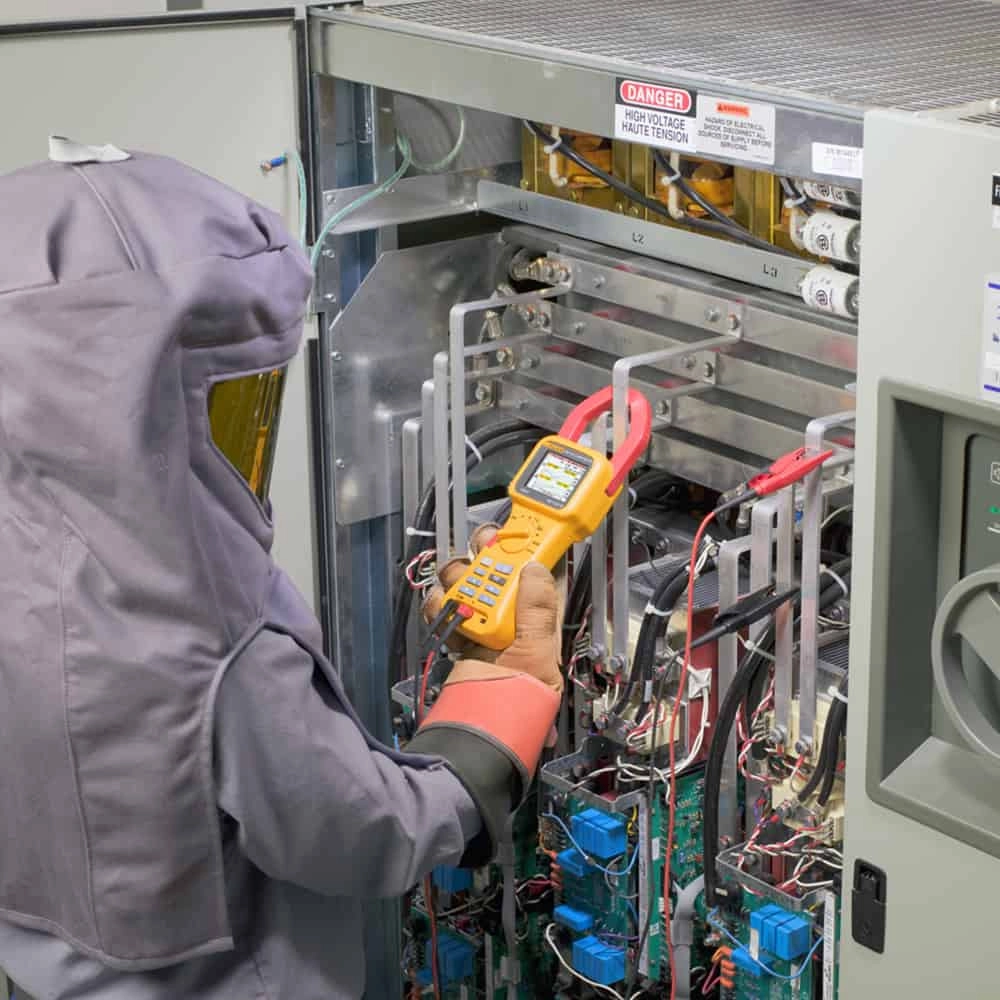

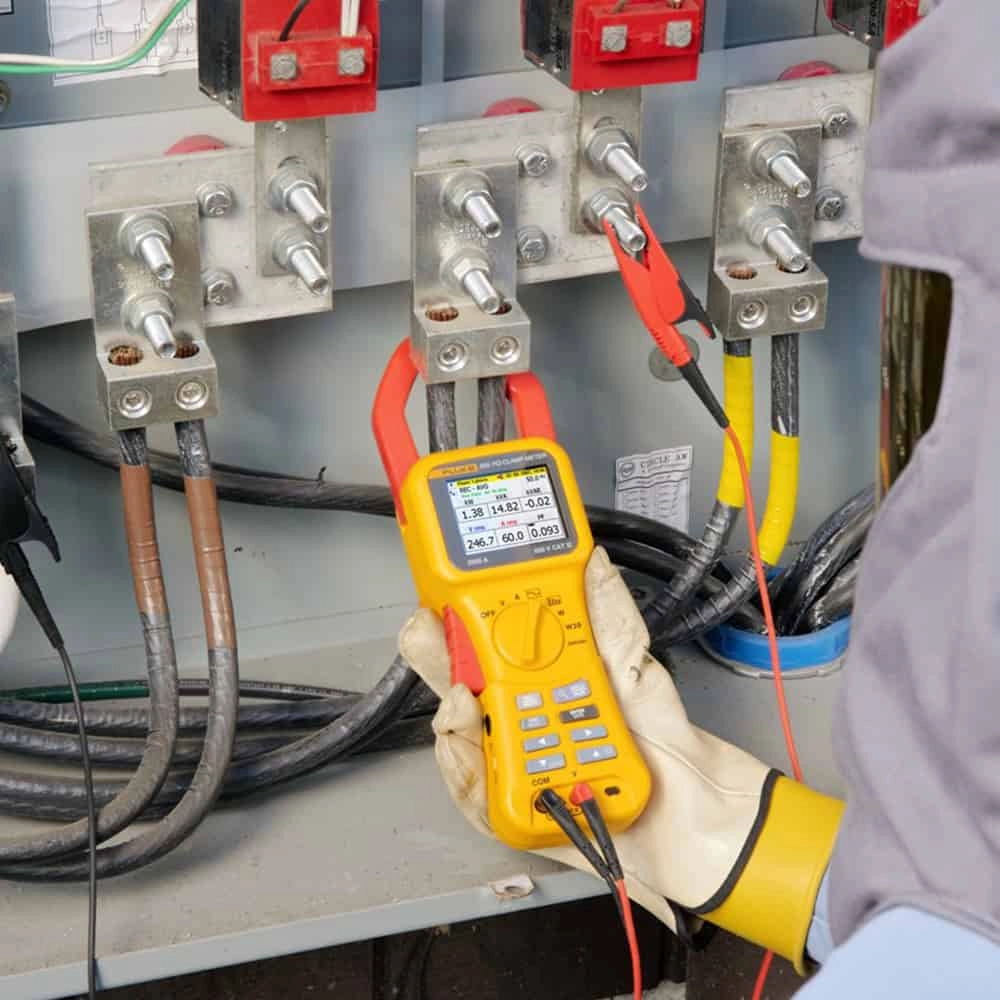

Highest safety rating: 600 V CAT IV power analyzer is rated for use at the service entrance
Accurate in noisy environments: Clamp meter performs even with distorted waveforms present on electronic loads with low-pass filter
Data logging: Identify intermittent faults by logging any power quality parameter for minutes; or over a month; including harmonics
Delivers accuracy even in noisy environments with distorted waveforms present on electronic loads with low-pass filter
Logs any power quality parameter, including harmonics, for minutes or for over a month to help identify intermittent faults
Verifies batteries with direct measurement of DC ripple (%) for battery and DC systems
Analyzes and logs harmonics digitally or graphically
Captures and analyzes inrush current nuisance tripping due from 3 seconds to 300 seconds

Current0 to 1400A AC and 0 to 2000A DC
Voltage0 to 825V AC DC RMS
Watts (Single Phase)0 to 1650 kW DC or 1200 kW AC
Watts (3 Phase)4 kW, 40 kW, 400 kW, 1650 kW
Battery Life>10-12 hours
Battery Type6x aa
Safety RatingCAT IV 600V/ CAT III 1000V
DisplayColor transmissive LCD 320 x 240 pixels (70 mm diagonal) with 2 level backlight
Current AC Accuracy3% ± 5 counts
Current DC Accuracy1.5 % ± 5 counts
Dimensions300 mm x 98 mm x 52 mm (12 in x 3.75 in x 2 in)
Max Wire Size750/3x 500
Operating Temperature32°f to +122°f (0°c to +50°c)
Jaw Opening60mm
