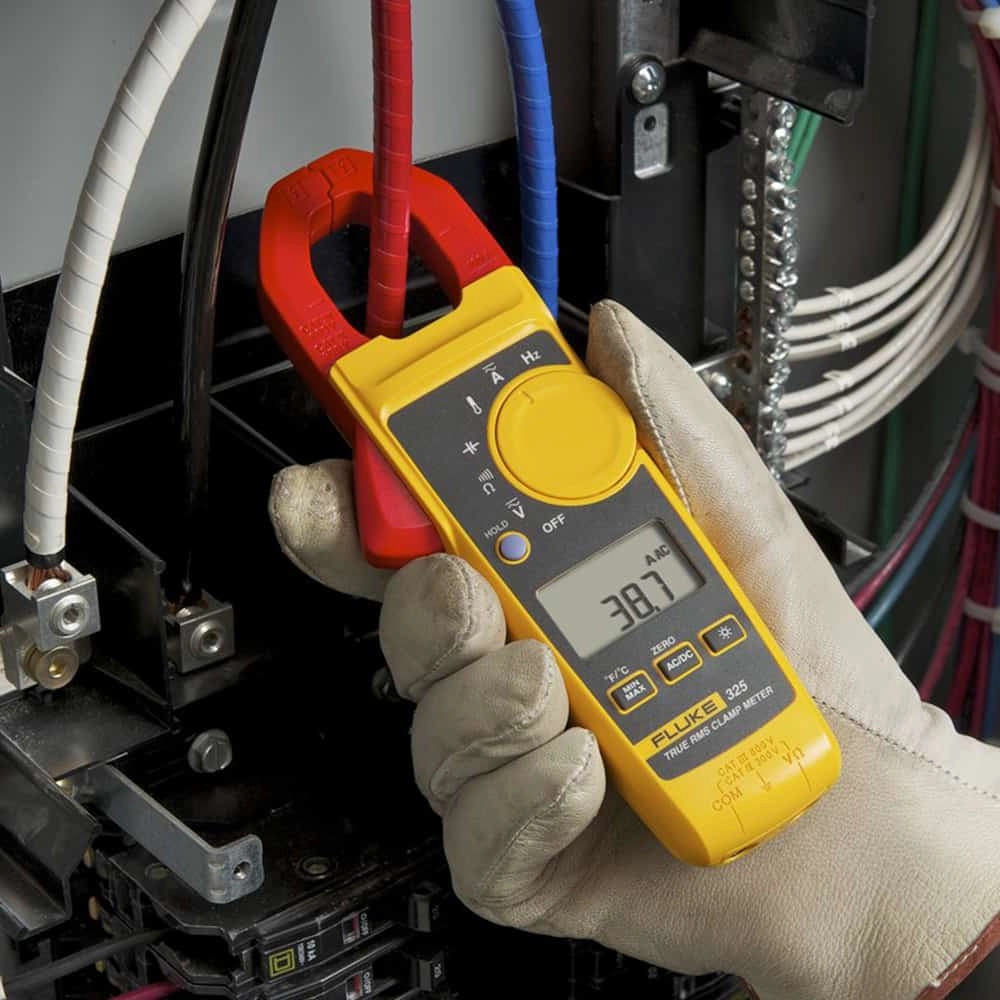

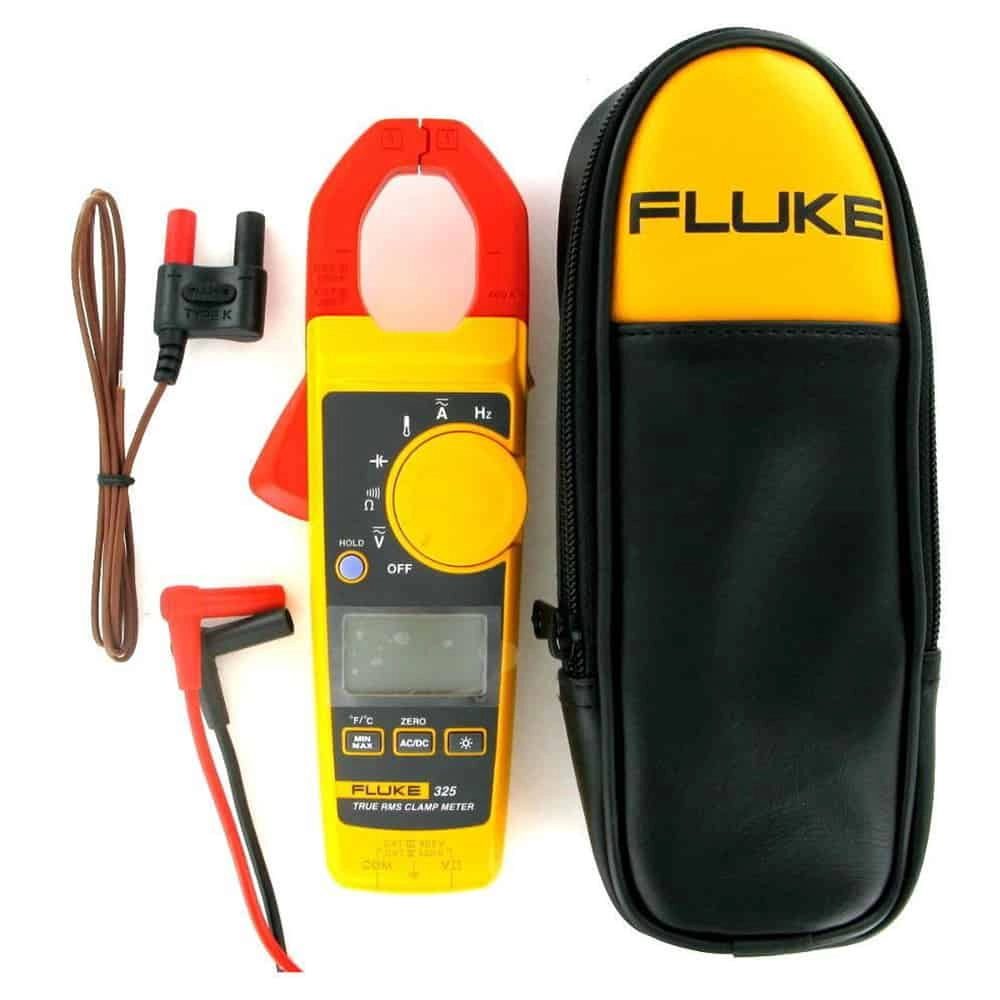

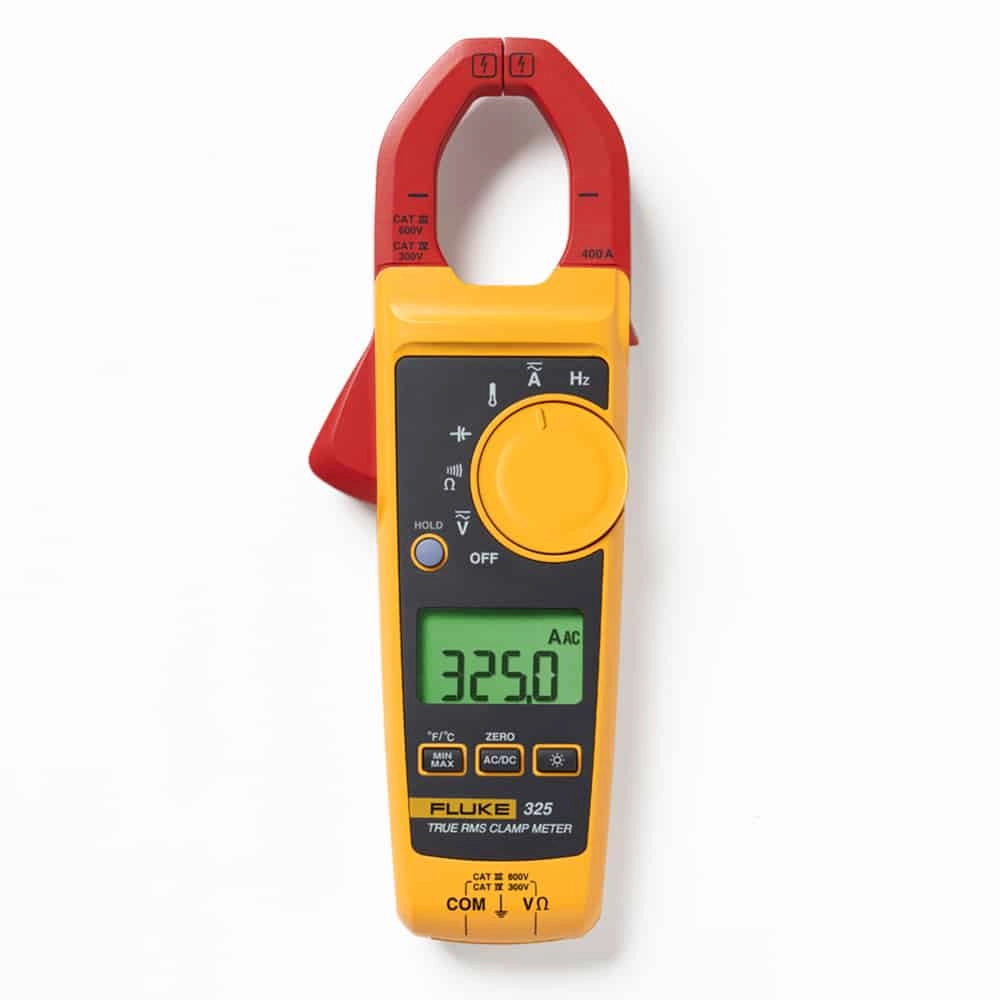

Fluke 325 True RMS AC/DC Clamp Meter, 400A, 30mm Jaw, CAT III 600V, with Temperature and Capacitance Measurement

Features

• 400 A ac and dc current measurement
• 600 V ac and dc voltage measurement
• True-rms ac voltage and current for accurate measurements on non-linear signals
• Resistance measurement up to 40 kΩ with continuity detection
• Features slim, ergonomic design for measuring in tight cable compartments
• Min/Max function records important values
• Features a CAT III 600 V, CAT IV 300 V safety rating
• Measures temperature from -10 °C to 400 °C with included K-type thermocouple
• Measures frequency from 5 Hz to 500 Hz

Technical Information

• AC Current400A
• AC Voltage600V
• Jaw Size30mm
• Safety RatingCAT III 600V, CAT IV 300V
• DC Voltage600V
• DC Current400A
• Resistance40kΩ
• Capacitance1000μF
• Continuity≤30 Ω
• Size (H x W x D)207 x 75 x 34mm
