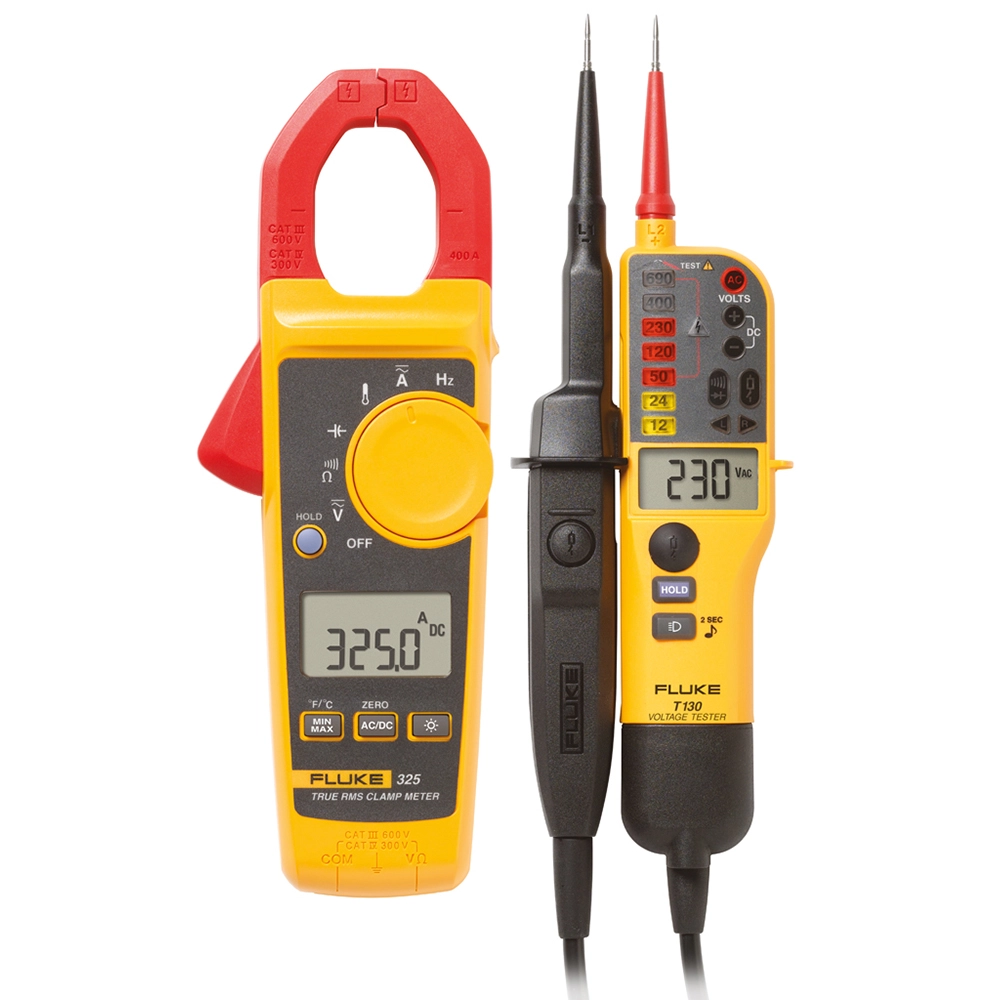

Fluke 325/T130 True RMS AC/DC Clamp Meter, 400A, 30mm Jaw, CAT III 600V + Voltage and Continuity Tester, CAT IV 600V, 6 to 690V

Features

• 400 A ac/dc current and 600 V ac/dc voltage measurement
• True-rms ac voltage and current for accurate measurements on non-linear signals
• Resistance measurement up to 40 kΩ with continuity detection
• Measures temperature from -10 °C to 400 °C with included K-type thermocouple
• CAT IV 600 V; Cat III 690 V safety rating Fluke’s family of Two-Pole Voltage testers
• 4 ways to detect ac/dc voltage A clear; instantly visible LED indicator; a bright digital display of the measurement value; an audible continuity test; and vibration to give tactile feedback
• Phase rotation indicator for 3-phase systems

Technical Information

• AC Current400A
• AC Voltage600V
• Jaw Size30mm
• Safety RatingCAT III 600V, CAT IV 300V
• Voltage6V - 690V
• Continuity0 - 400 k
• Frequency0 / 40 - 400 Hz
• Phase rotation100 V - 690 V

Items Included

• Fluke 325
• Fluke T130

Downloads

DatasheetDatasheet
