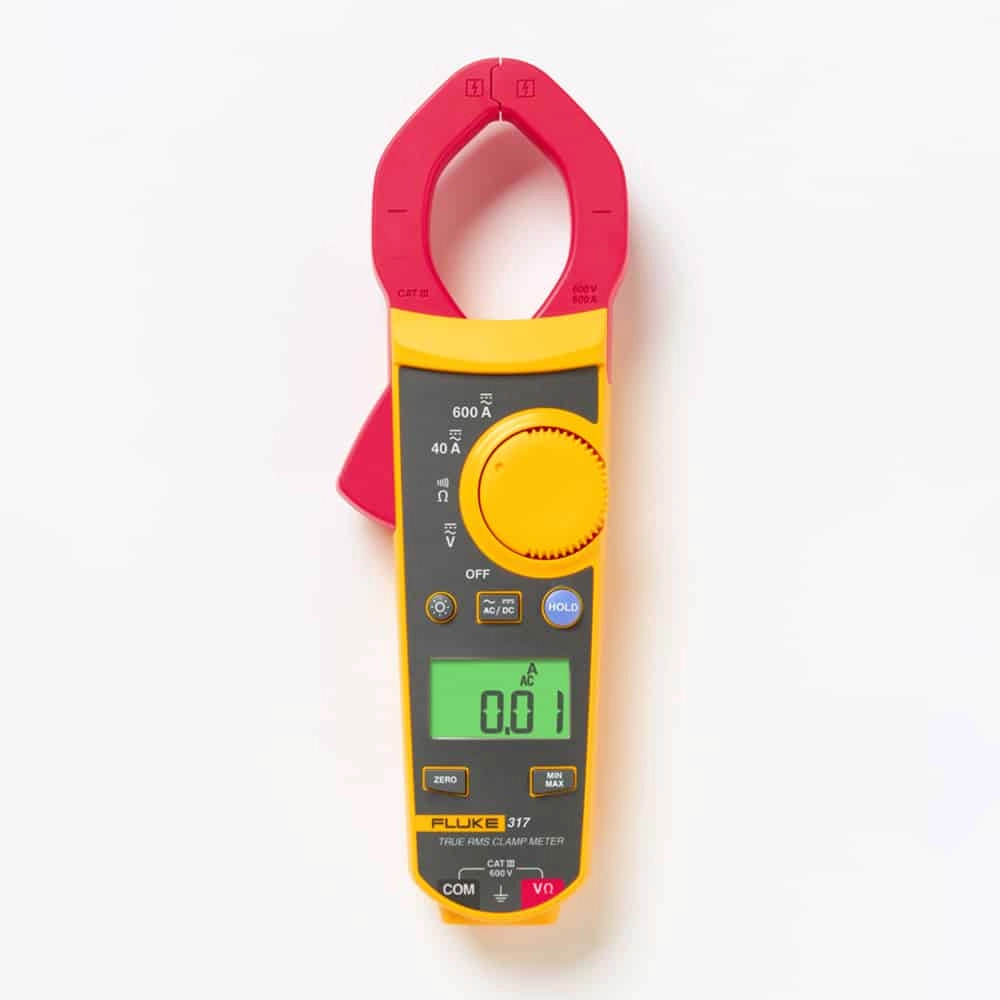

Fluke 317 True RMS AC/DC Clamp Meter, 600A, 37mm Jaw, CAT III 600V

Features

• Unique 40A high-precision low current measurement--0.01A high-resolution, 1.6% high-precision measurement
• Small body and jaws fit perfectly in your hand and into tight places
• Large backlit display is easy-to-see in less than ideal conditions
• Resolution up to 0.01A and 0.1 V
• Auto off function enhances battery life
• Starting current (inrush) functionality (319) allows measurement of the starting current of electrical and lighting equipment

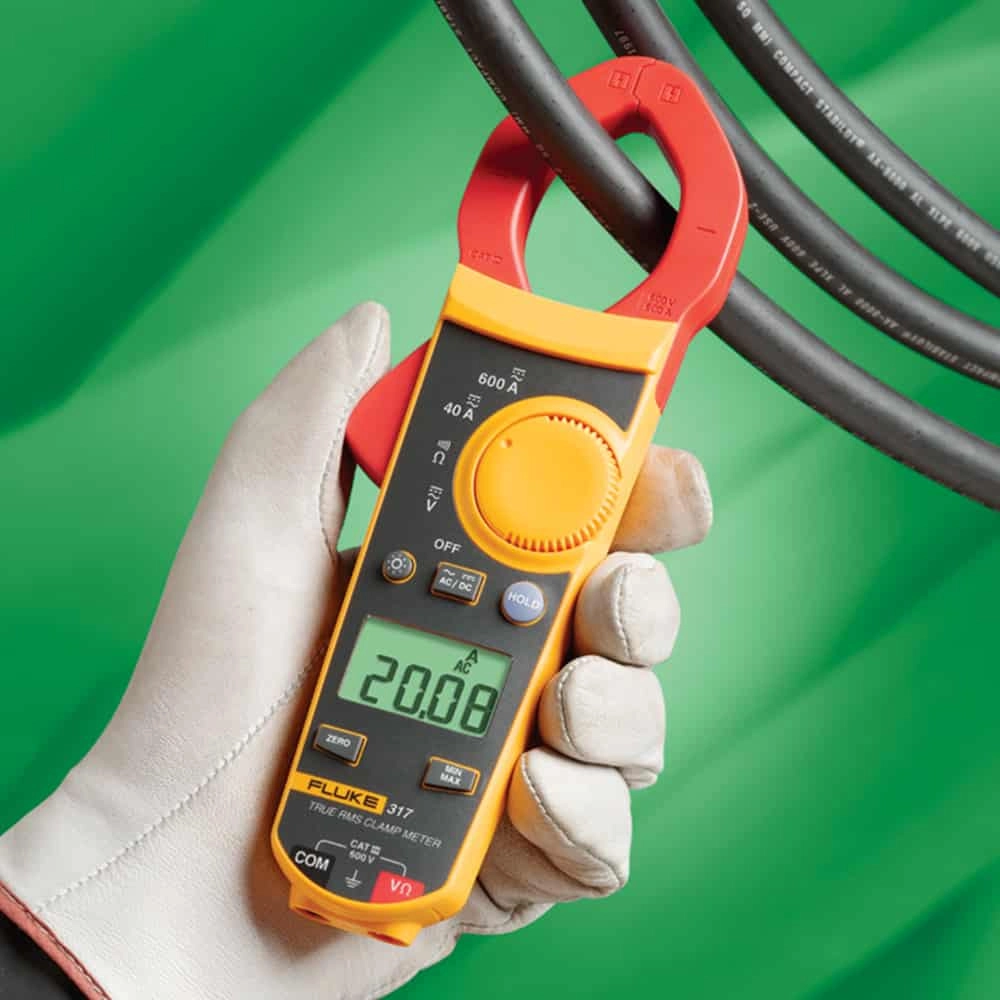

• The clamps are slim, lightweight, and portable, making them ideal for use in small, confined spaces

Technical Information

• AC Current600A
• AC Voltage600V
• Jaw Size37mm
• Safety RatingCAT III 600V
• DC Voltage600V
• DC Current600A
• Resistance4000Ω
• Continuity≤30 Ω
• Digital Display6000 count resolution
• Power source3x AAA IEC LR03 batteries
• Dimensions (L x W x H)234.0 mm x 75.0 mm x 34.8 mm

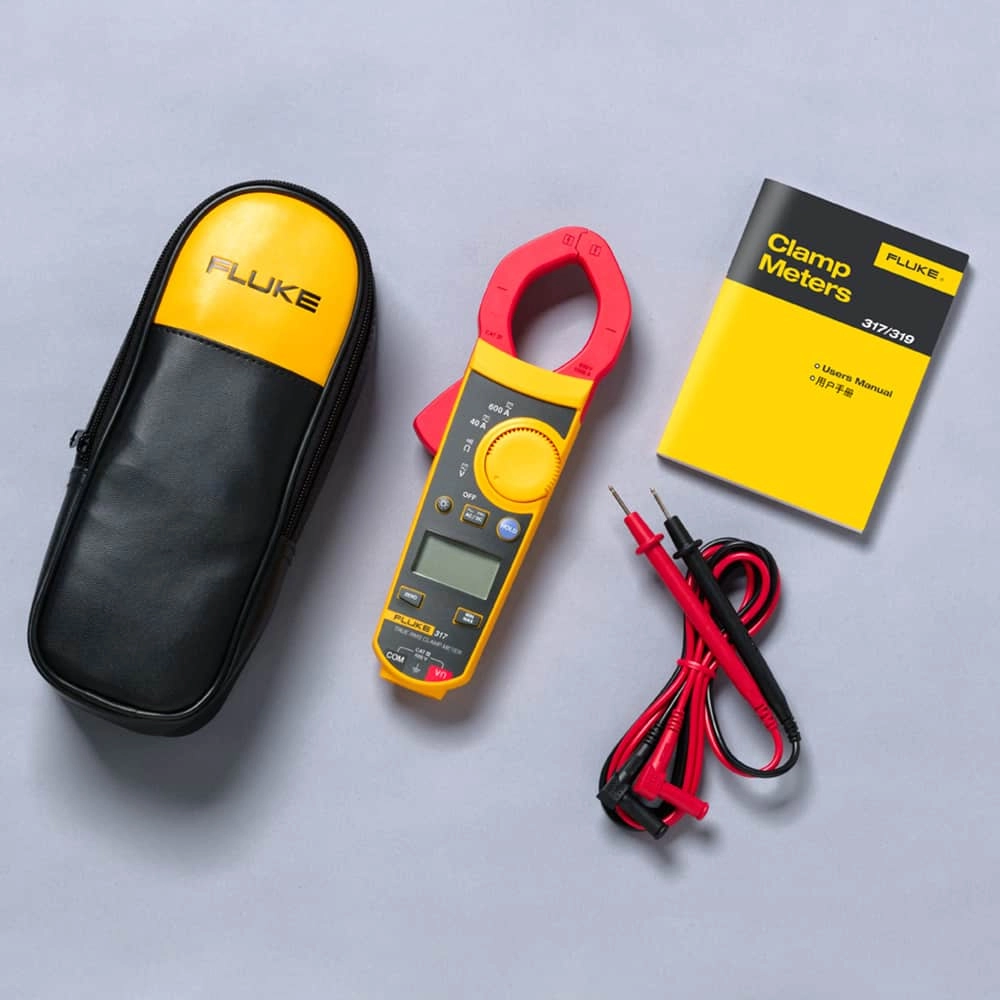

Items Included

• Clamp Meter
• Test Leads
• Soft Carrying Case
• Three AAA batteries (Installed)
• User Manual

Downloads

DatasheetDatasheet
