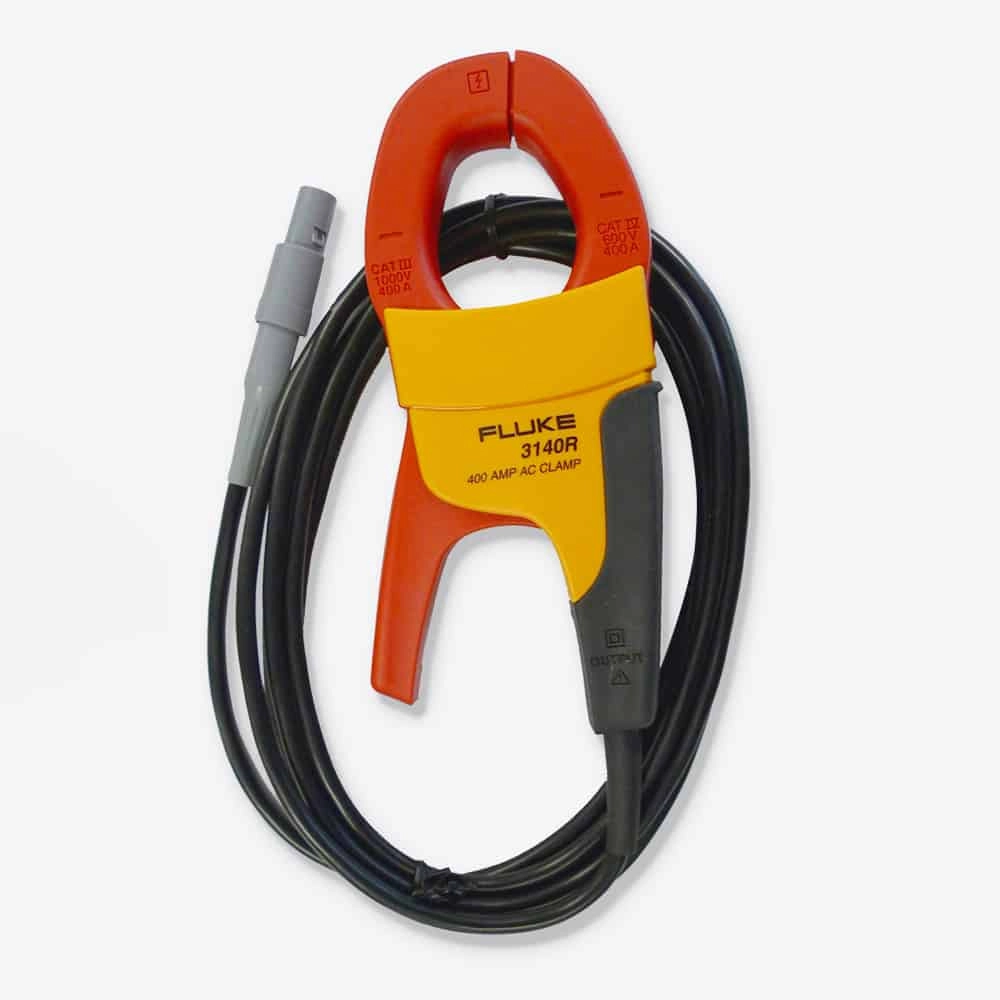

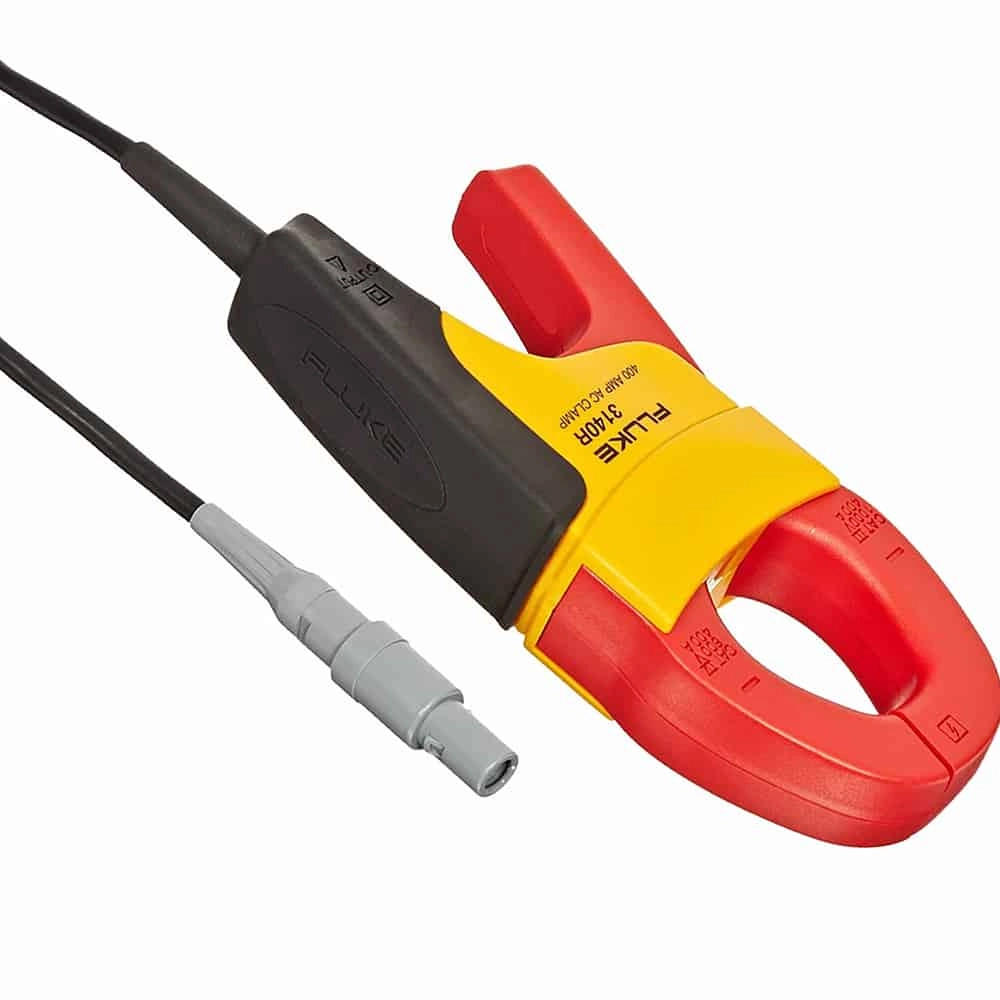

Fluke 3140R Clip-On Current Transformer, 2 to 400A, for 1750 Power Quality Logger

Features

• CT Type – Clamp On
• Current Range – 2 to 400Amps
• Accuracy – 2 percent RDG +/- 0.04 Amps
• Frequency Response – 20 KiloHertz

Technical Information

• Typical Bandwidth5 to 20 kHz
• Working Voltage1000 V AC RMS, in compliance with EN61010
• Common Mode Voltage1000 V AC RMS from earth ground, in compliance with EN61010
• Input Load Impedance (of Host Instrument)>1 M Ω in parallel with up to 47 pF
• Maximum Non-destructive Current1000 A
• Duty Cycle2 to 400 A continuous
• Influence of Adjacent Conductor<9.0 mA/A
• Influence of Conductor Position in Jaw Opening±1.0% of reading + 0.05 A
• Maximum Conductor Size1.26" (32 mm)
• Storage Temperature-4 to 140°F (-20 to 60°C)
• Operating Temperature32 to 122°F (0 to 50°C)

Items Included

• Clip-On Current Transformer, 2 to 400A, for 1750 Power Quality Logger
