Fluke 289/FVF/EUR Industrial Logging Multimeter And Soft Combo Kit, CAT IV 600V, 10A

Features

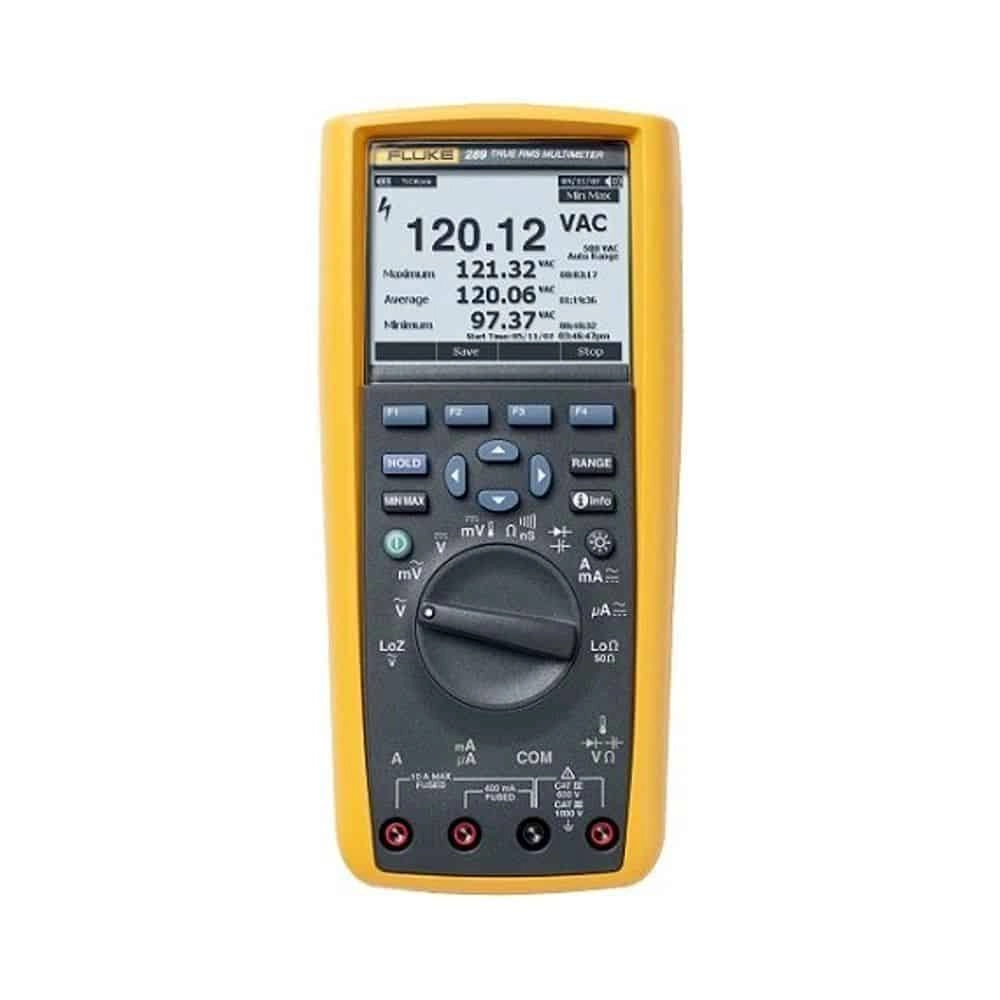

• Fluke-289 True-RMS Industrial Logging Multimeter with TrendCapture
• FlukeView Forms Software and cable
• 80BK-A Temperature probe
• TL 71 Silicon Test Lead Set

Technical Information

• DC voltage1000V
• AC voltage1000V
• DC current10A
• AC current10A
• Resistance50Ω to 500MΩ
• Capacitance1nF to 100mF
• Frequency99.999Hz to 999.99kHz
• Temperature-200.0°C to 1350.0°C
• Safety RatingCAT IV 600V, CAT III 1000V
• DC volts Range / resolution50.000 mV
• Basic accuracy0.025%
• AC volts Range / resolution50.000 mV
• Basic accuracy0.4% (True-RMS)
• ConnectivityOptional infrared connector via Fluke ir3000 FC
• Maximum voltage between any terminal and earth ground1000 V
• Operating-20°C to 55°C
• Storage-40°C to 60°C
• Relative humidity0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)

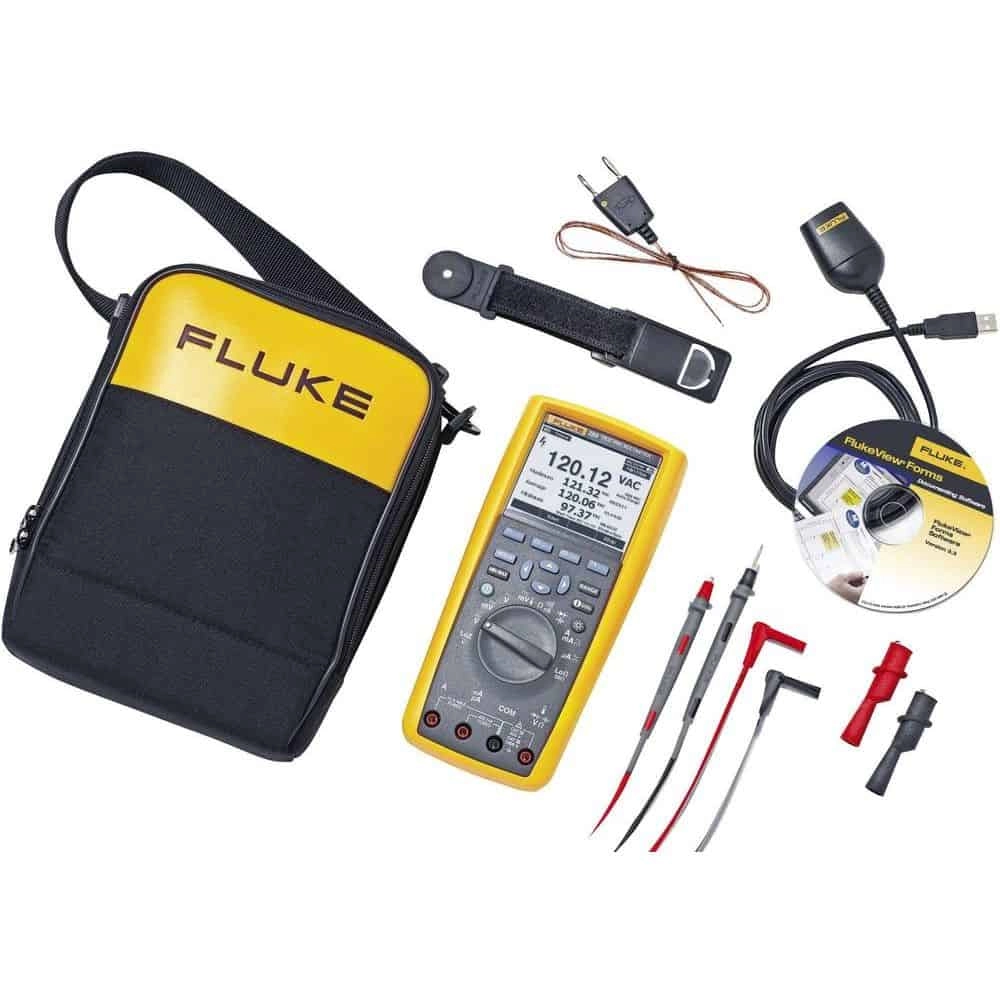

Items Included

• 1 – True RMS Electronics Logging Digital Multimeter with TrendCapture (289)
• 1 – FlukeView Forms Software with Cable
• 1 – Alligator Clip Set (AC175)
• 1 – Thermocouple Probe (80BK-A)
• 1 – Silicon Test Lead Set (TL71)

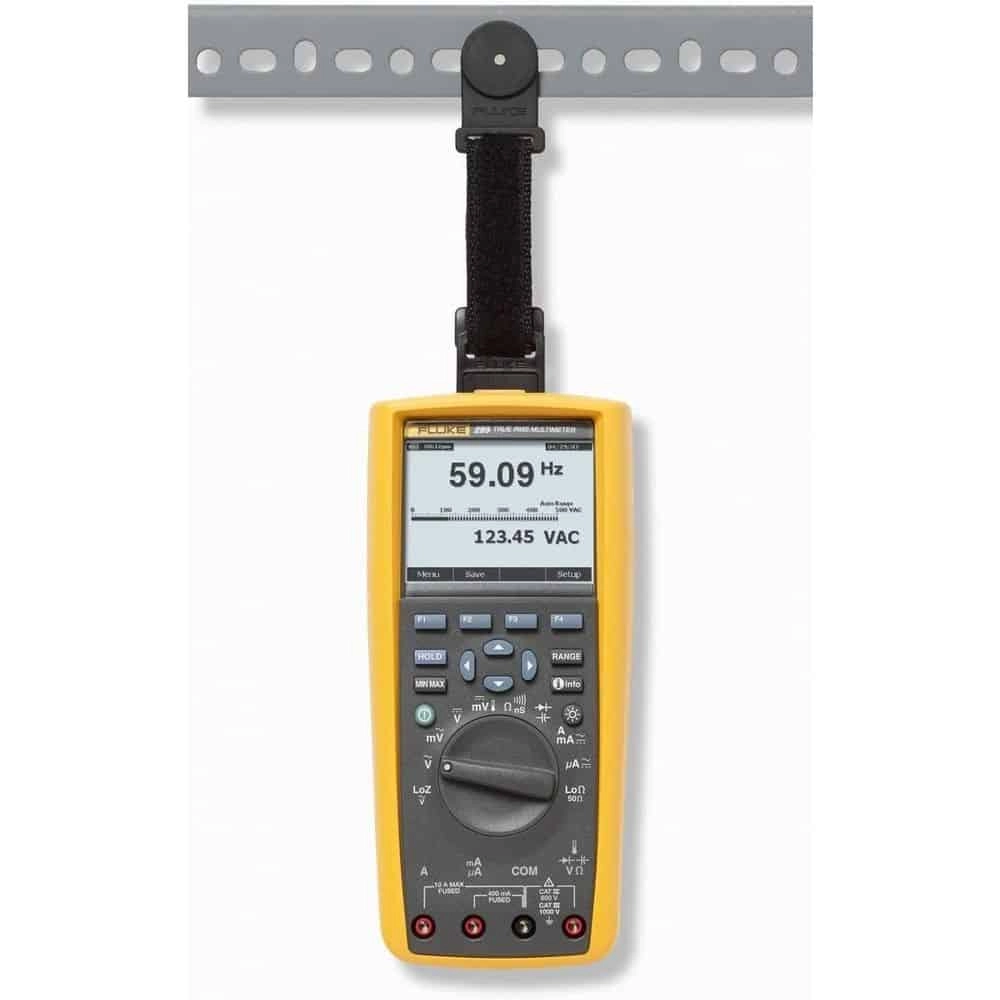

• 1 – Magnetic Hanging Kit (TPAK)
• 1 – Soft Case (C280)
• 1 – Amp Jack Plug Set

Downloads

Datasheet
