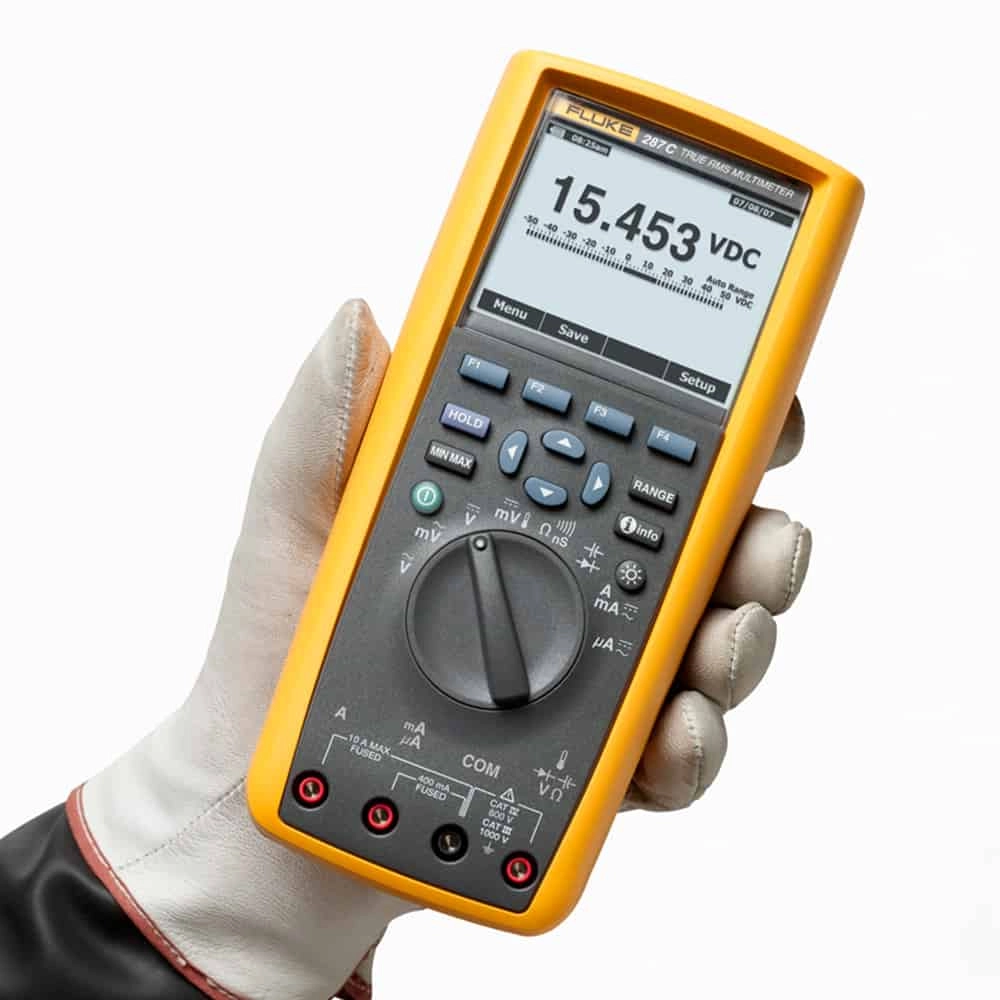

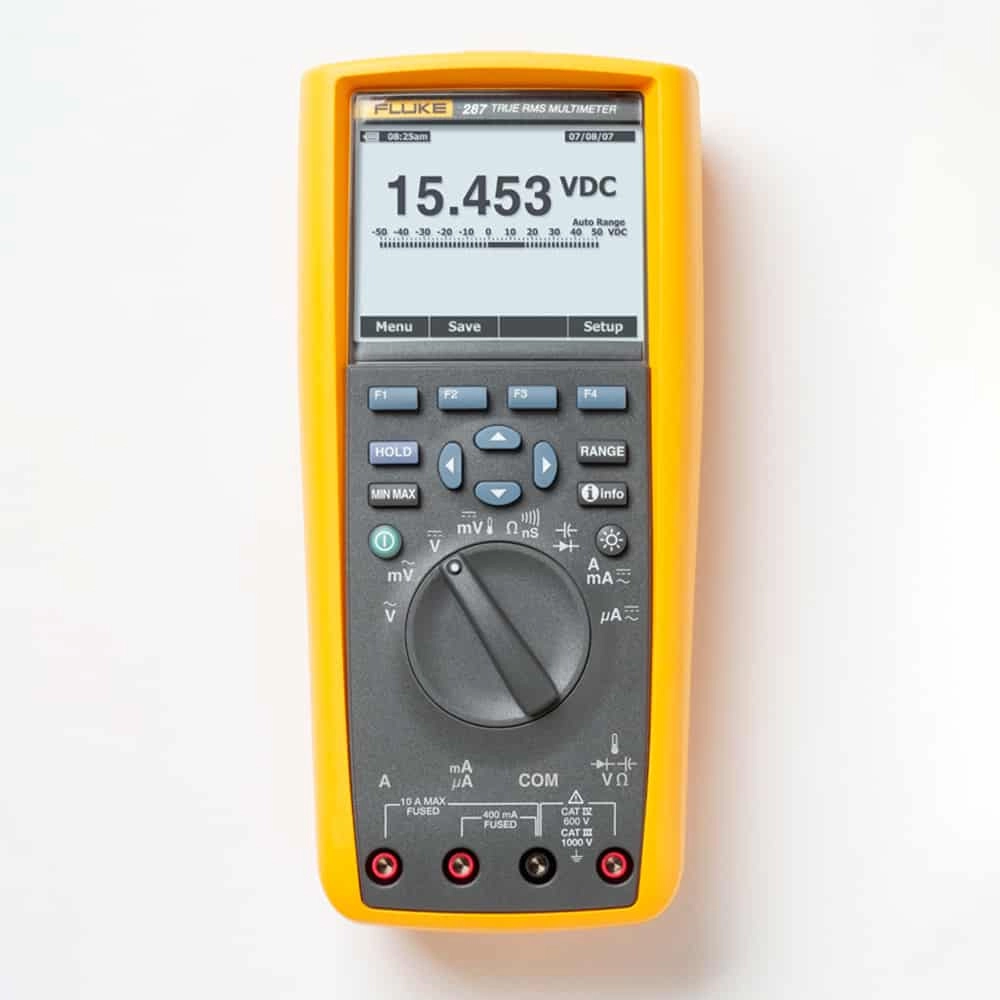

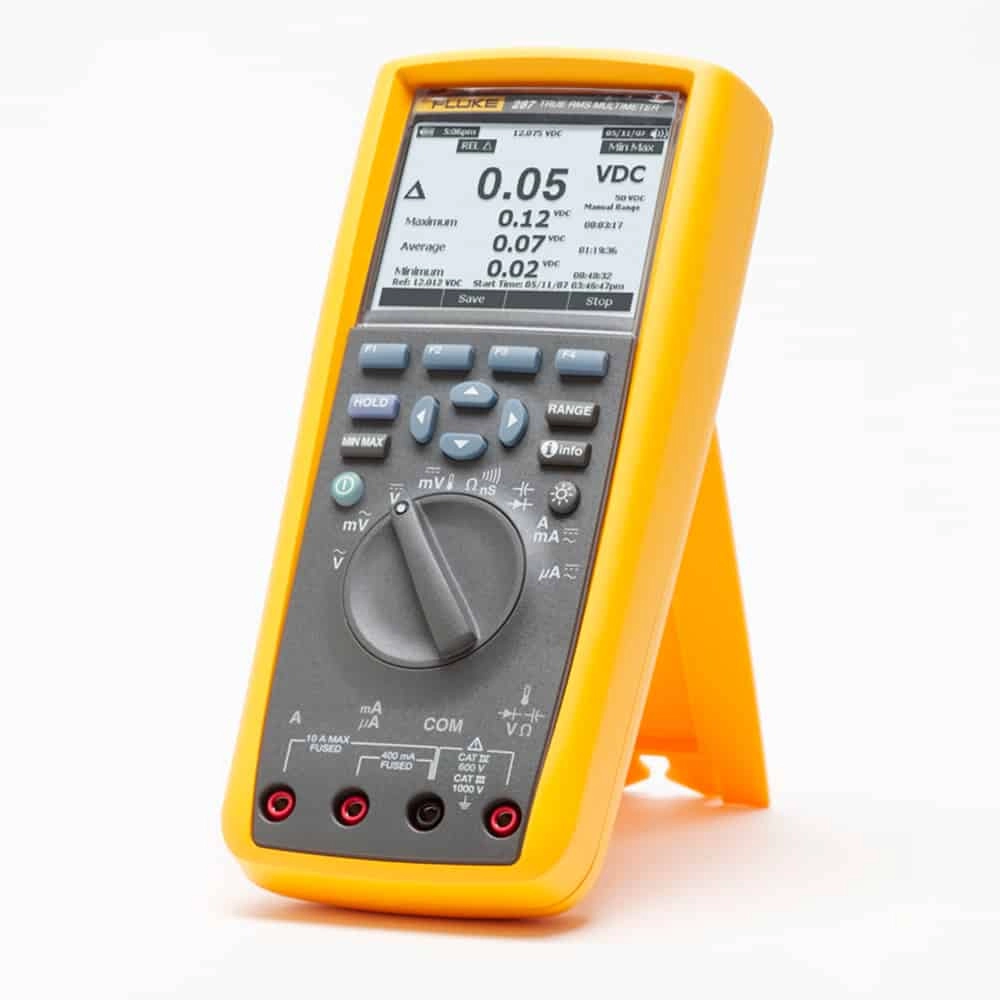

Fluke 287/EUR True RMS Electronics Logging Multimeter, CAT IV 600V, 10A

Features

• New with V 1.1 Upgrade! Zoom on trend provide unprecedented ability to view analyze TrendCapture data; see detail at X5 magnification.
• Large 50;000 count; ¼ VGA display with white backlight.
• Multi-lingual interface
• True-rms ac voltage and current for accurate measurements on complex signals or non-linear loads.
• Selectable AC filter (smoothing mode) helps display a steadier reading when the input signal is changing rapidly or noisy.
• Multiple logging sessions possible without download.
• Multi-lingual interface.
• Real time clock for automatic time stamping of saved readings.

Technical Information

• DC voltage1000V
• AC voltage1000V
• DC current10A
• AC current10A
• Resistance500Ω to 500MΩ
• Capacitance1nF to 100mF
• Frequency99.999Hz to 999.99kHz
• Temperature-200.0°C to 1350.0°C
• Safety RatingCAT IV 600V, CAT III 1000V
• Duty Cycle0.01% to 99.99%
• Battery type6 AA alkaline batteries, NEDA 15A IECLR6
• TemperatureOperating: -20°C to 55°C
• Storage-40°C to 60°C
• Relative humidity0 to 90% (0 t 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
• Size (H x W x L)22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
• Pulse width0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms

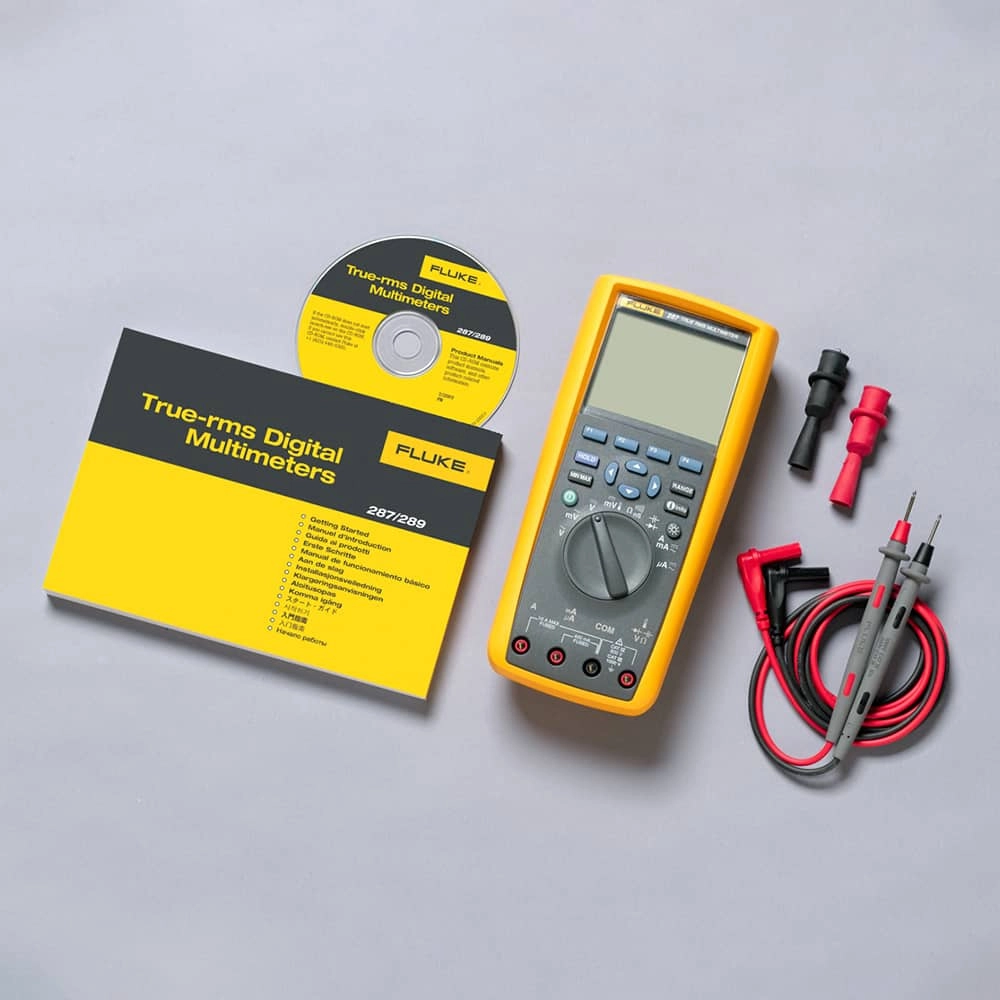

Items Included

• Fluke 287 True-RMS Electronics
• Logging Multimeter
• TL71 Test Leads
• AC175 Alligator Clips
• Batteries – 6 AA Installed

Downloads

Datasheet
