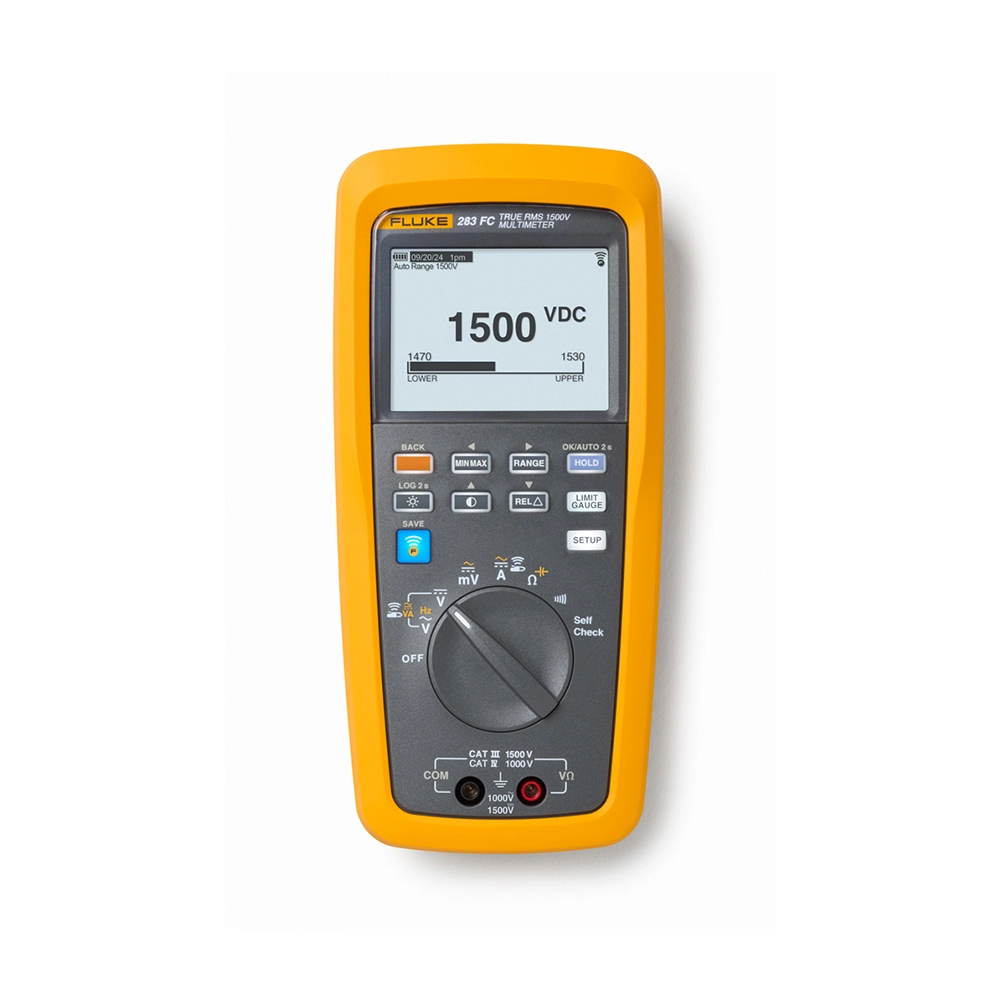

Fluke 283 FC 1500V Digital Multimeter CAT III

Features

• Measure safely with CAT III 1500 V/CAT IV 1000 V safety rated multimeter
• Includes TL175-HV CAT III 1500 V/CAT IV 1000 V safety rated premium test leads
• User-defined limit gauge for quick go/no-go decisions
• Unique multimeter readiness self-check
• Highly accurate voltage measurements for precise frontline troubleshooting
• Current measurements up to 60 A AC/DC for safely troubleshooting individual strings of modules with greater accuracy (when using optional a283 FC wireless current clamp)
• Visual and audio polarity indicators with on/off function help prevent accidental wiring issues
• Save and log measurements to internal memory and view them on your mobile device via Fluke Connect™

Technical Information

• AC Voltage6 V to 600 mV
• DC Voltage6 V to 1500 V
• AC mV600 mV
• DC mV600 mV
• Continuity600 Ω
• Resistance600 Ω to 50 MΩ
• Capacitance1000 nF to 9999 μF
• Frequency99.99 Hz to 99.99 kHz
• AC VA (45 Hz ~ 500 Hz)360.0 VA to 60.00 kVA
• DC VA360.0 VA to 90.00 kVA
• Operating temperature-10 °C to 60 °C
• Storage temperature-30 °C to +70 °C

Items Included

• 283 FC TRMS Wireless Digital Multimeter
• TL175-HV TwistGuard™ Silicone test leads
• Premium carrying case
• Magnetic hanging strap
• Limited Lifetime Warranty

Downloads

DatasheetDatasheet
