Fluke 283 FC/PV Solar Digital Multimeter and Wireless Current Clamp

Name: Solar Digital Multimeter and Wireless Current Clamp
Rating: 4 (12 reviews)

Model # 283 FC/PV

Key Features

Qty:

Question about this product?

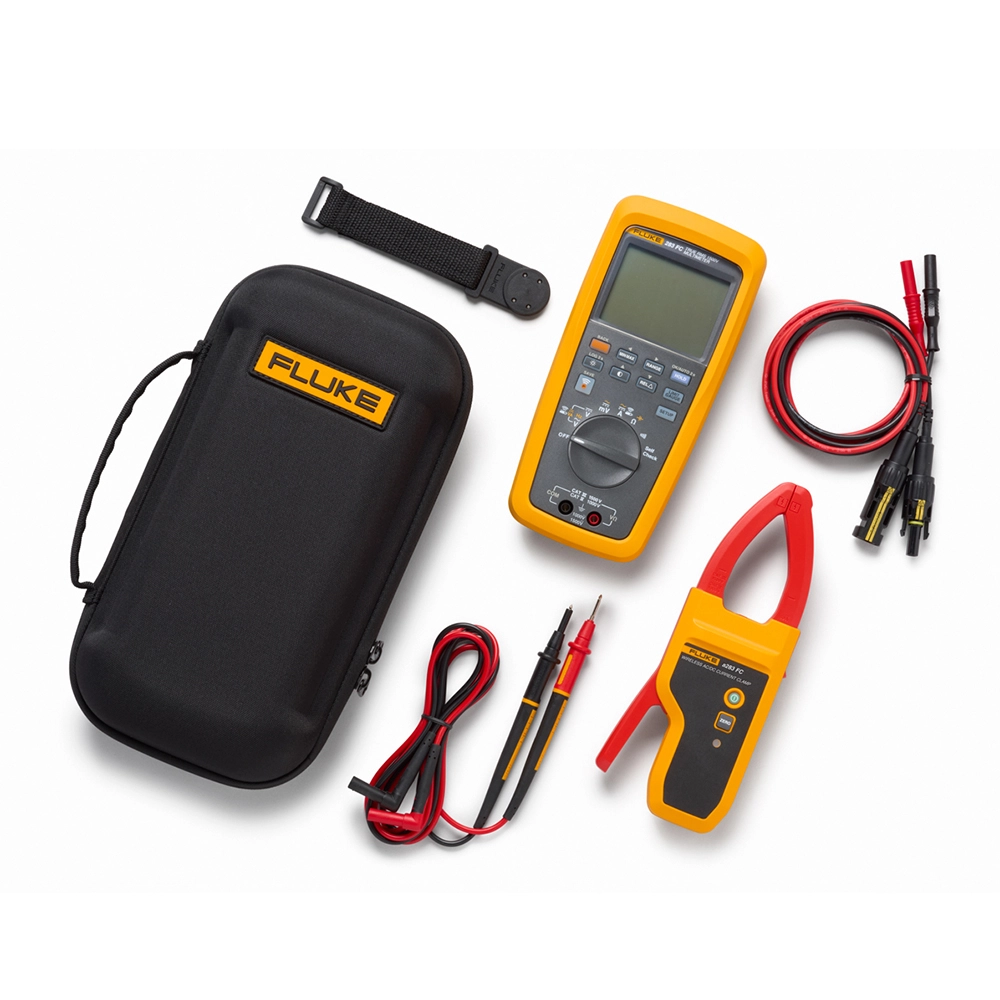

CAT III 1500 V/CAT IV 1000 V safety rated multimeter, wireless current clamp and test leads
Includes CAT III 1500 V rated Staubli MC4 test leads
User-defined limit gauge for quick go/no-go decisions
Unique multimeter readiness self-check
Visual and audio polarity indicators with on/off function wiring issues
Highly accurate voltage measurements for precise frontline troubleshooting
Current measurements up to 60 A AC/DC for safely troubleshooting individual strings of modules with greater accuracy (when using a283 FC wireless current clamp)
Save and log measurements to internal memory and view them on your mobile device via Fluke Connect™

AC Voltage (283 FC)6 V to 600 mV
DC Voltage (283 FC)6 V to 1500 V
AC mV (283 FC)600 mV
DC mV (283 FC)600 mV
Continuity (283 FC)600 Ω
Resistance (283 FC)600 Ω to 50 MΩ
Capacitance (283 FC)1000 nF to 9999 μF
Frequency (283 FC)99.99 Hz to 99.99 kHz
AC VA (45 Hz ~ 500 Hz) (283 FC)360.0 VA to 60.00 kVA
DC VA (283 FC)360.0 VA to 90.00 kVA
Operating temperature (283 FC)-10 °C to 60 °C
Storage temperature (283 FC)-30 °C to +70 °C
AC current (a283 FC)60 A (True-RMS)
DC current (a283 FC)60 A
Operating temperature (a283 FC)-10 °C to 60 °C
Storage temperature (a283 FC)-30 °C to +70 °C
Electromagnetic compatibility (a283 FC)IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A
Overvoltage category (a283 FC)CAT III 1500 V, CAT IV 1000 V
Drop test (a283 FC)2 meter (6.5 ft) drop test
Ingress protection (a283 FC)IP52
Jaw opening (a283 FC)34 mm (1.34 in)
Battery life (a283 FC)> 80 hours typical (Alkaline, 2 AAA)
LED indicator (a283 FC)Indicates wireless connection and data transmission status
Battery indicator (a283 FC)Indicates battery status
Power Key (a283 FC)Power On/Off
Zero Key (a283 FC)A DC zeroing function
