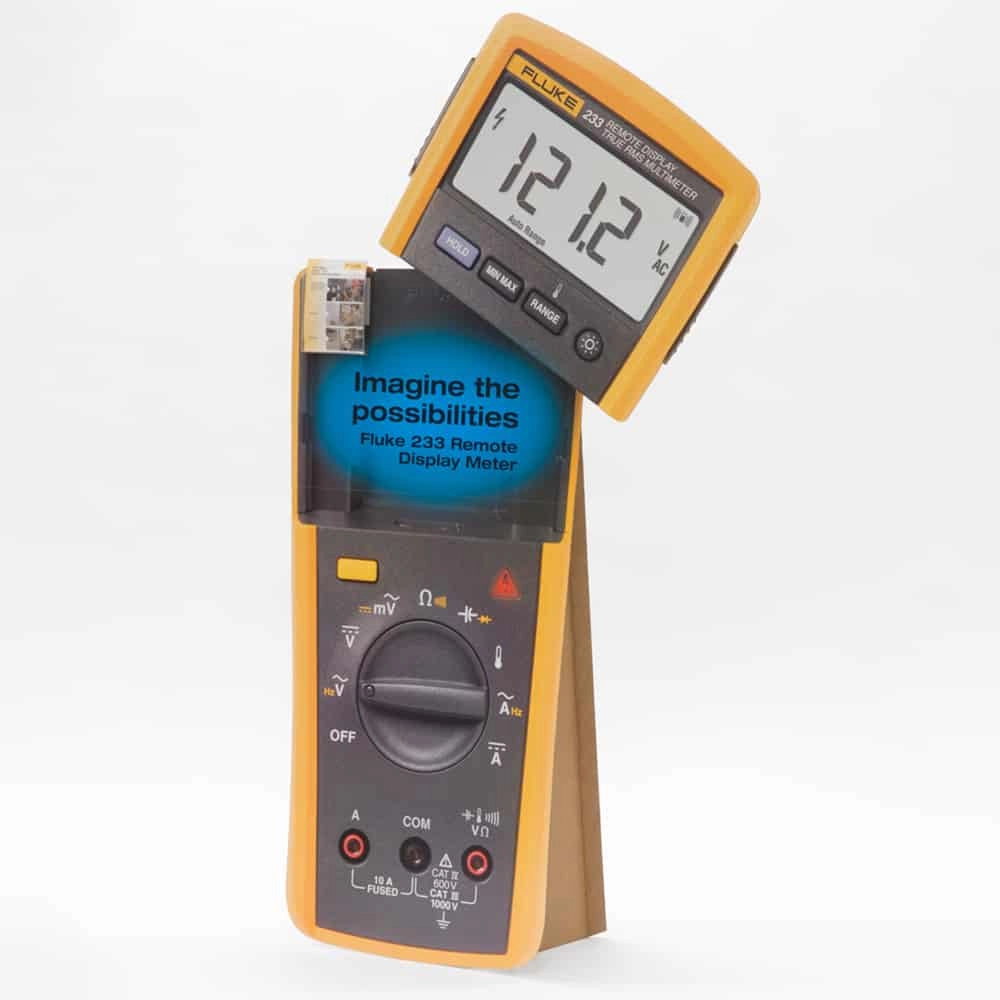

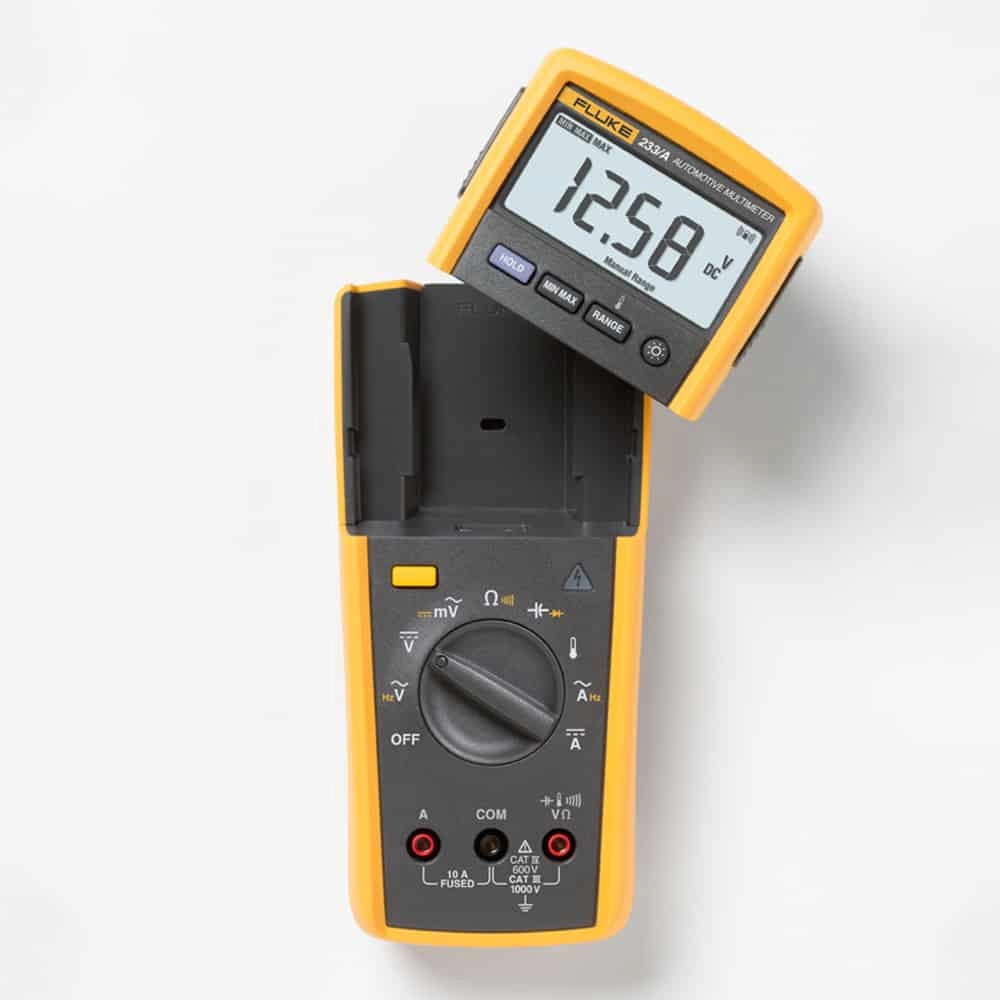

Fluke 233 Remote Display Digital Multimeter, CAT IV 600V, 10A

Model #   233

?

Question about this product?

Speak to an expert

Features

  • True-rms ac voltage and current for accurate measurements on non-linear signals
  • Measure up to 1000 V ac and dc
  • Measure up to 10 A (20 A for 30 seconds)
  • 10;000 F capacitance range
  • Built-in thermometer to measure temperature without having to carry a separate instrument
  • Easy to read display with large digits and bright backlight
  • Delivers approximately 400 hours of battery life
  • Offers resistance, continuity, and diode test

Technical Information

  • DC voltage1000V
  • AC voltage1000V
  • DC current10A
  • AC current10A
  • Resistance40MΩ
  • Capacitance1 nF to 9999 μF
  • Frequency5 Hz to 50 kHz
  • Temperature-40°C to 400°C
  • Safety RatingCAT III 1000V, CAT IV 600V
  • Accuracy specificationsDC voltage: Range; 0.1 mV to 1000 V
  • Counts6000
  • Temperature-40°C to +400°C
  • PowerAA batteries: Three for main body two for display
  • Battery life400 hours
  • Wireless frequency2.4 GHz ISM Band 10 meter range
  • Accuracy0.25% + 2

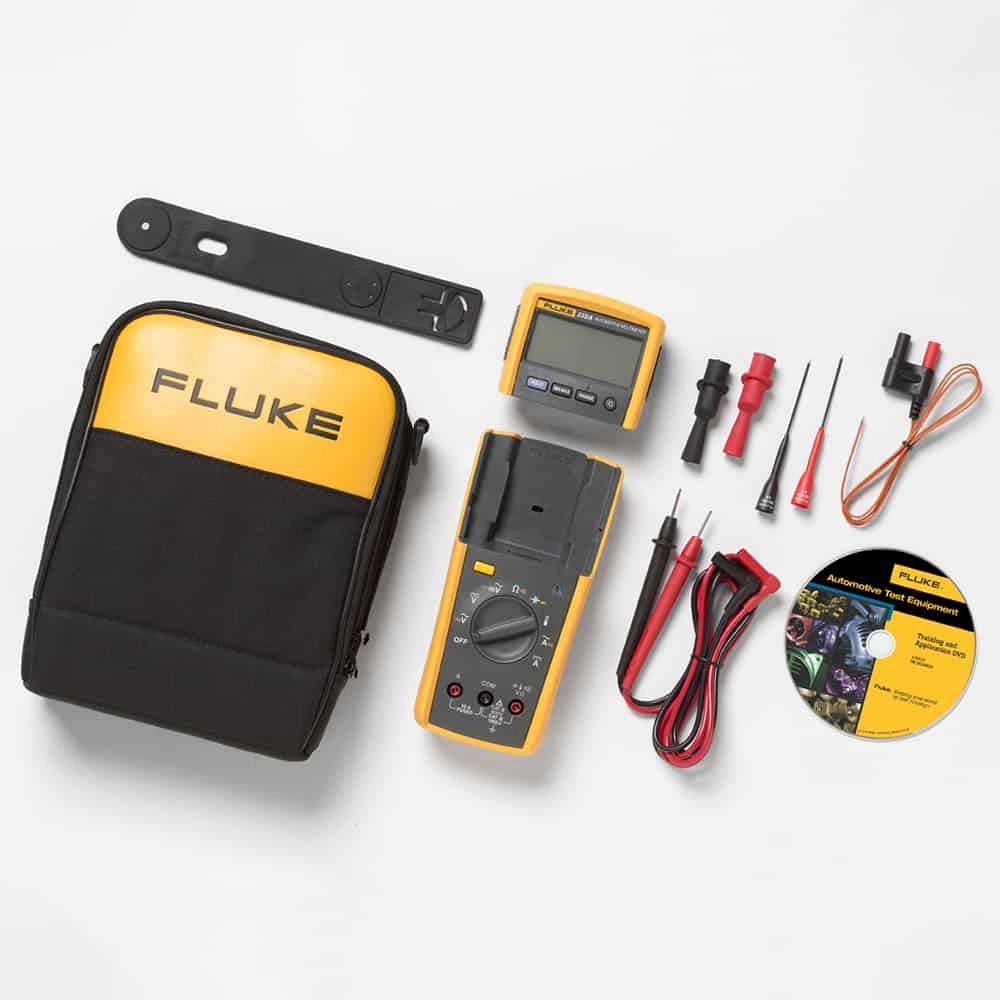

Items Included

  • 233 Remote Display Multimeter Test leads
  • Alligator clips 80BK-A Temperature Probe User documentation AA batteries
