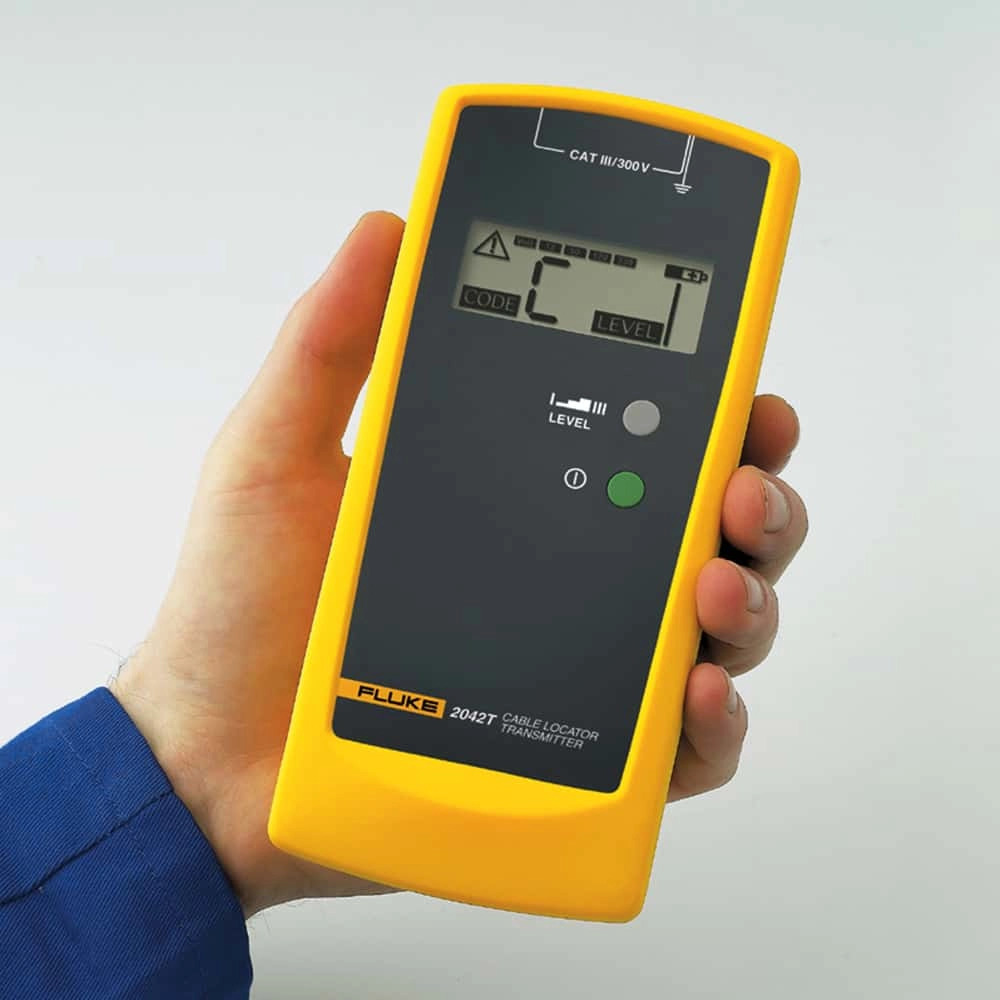

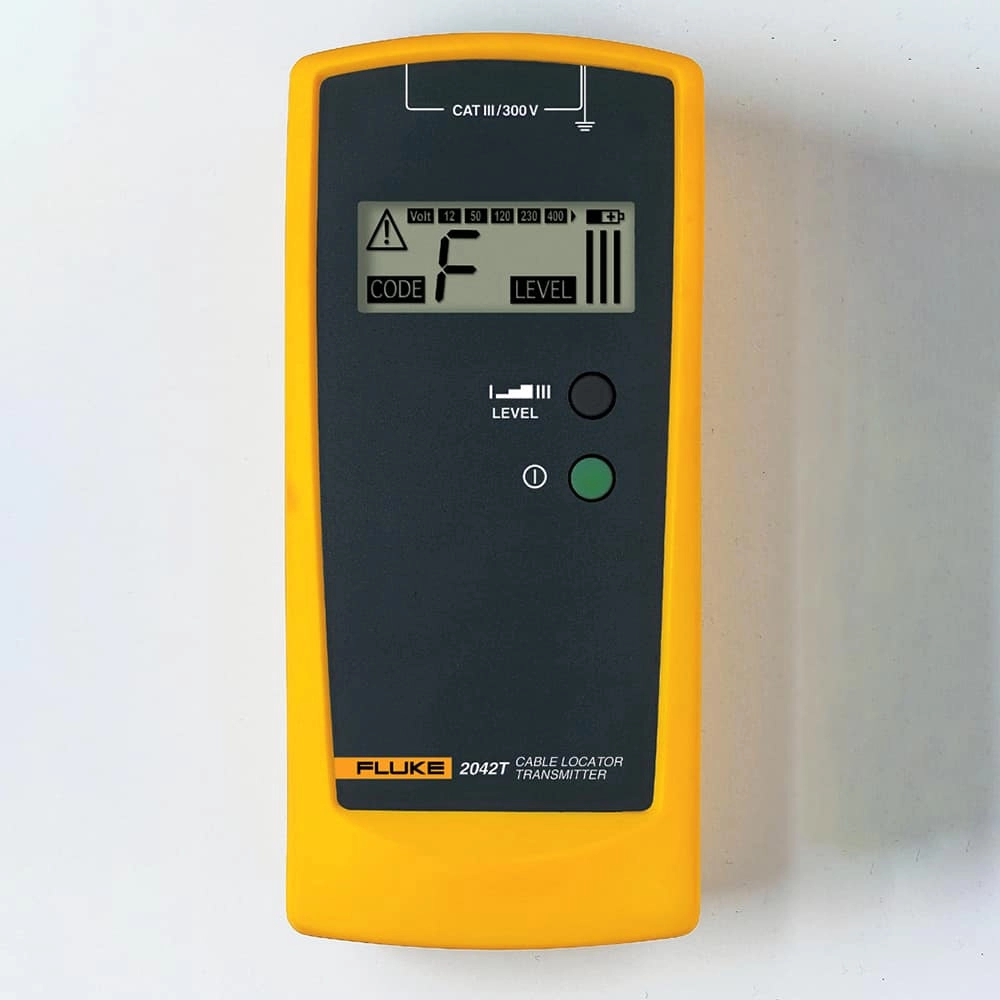

Fluke 2042T Cable Locator Transmitter, Cat III 300V, 12 to 400V
Model # 2042TDiscontinued
Key Features
?
Question about this product?
Features
- Traces cable & metal water/heating pipes in walls and underground Locates fuses and assignment to circuits
- Tracing depth up to 2.5 m dependent on cover material
- Locates concealed sockets and distribution boxes
- Receiver with LCD display of received signal level, code and live voltage indication
- Proven digitally coded sender signal guarantees clear signal identification
- Automatic or manual adjustment of receiving signal sensitivity
- Acoustical receiving signal switchable
- Auto-Power-Off
- Additional torch lamp function for working in dark environments
Technical Information
- VoltageTransmittor- 12 V, 50 V, 120 V, 230 V, 400 V
- FrequencyTransmitter - 0 - 60 Hz
- Output signalTransmitter - 125 kHz
- Storage temperature-20°C to +60°C
- Humidity (without condensation)Max. 80% relative
- Operating altitudeUp to 2000 m
- Main voltage detectionReceiver - 0 - 0.4 m
Items Included
- 4 test leads
- 6 x 1.5v batteries
- 2 crocodile clamps
- 2 test probes
- user manual
