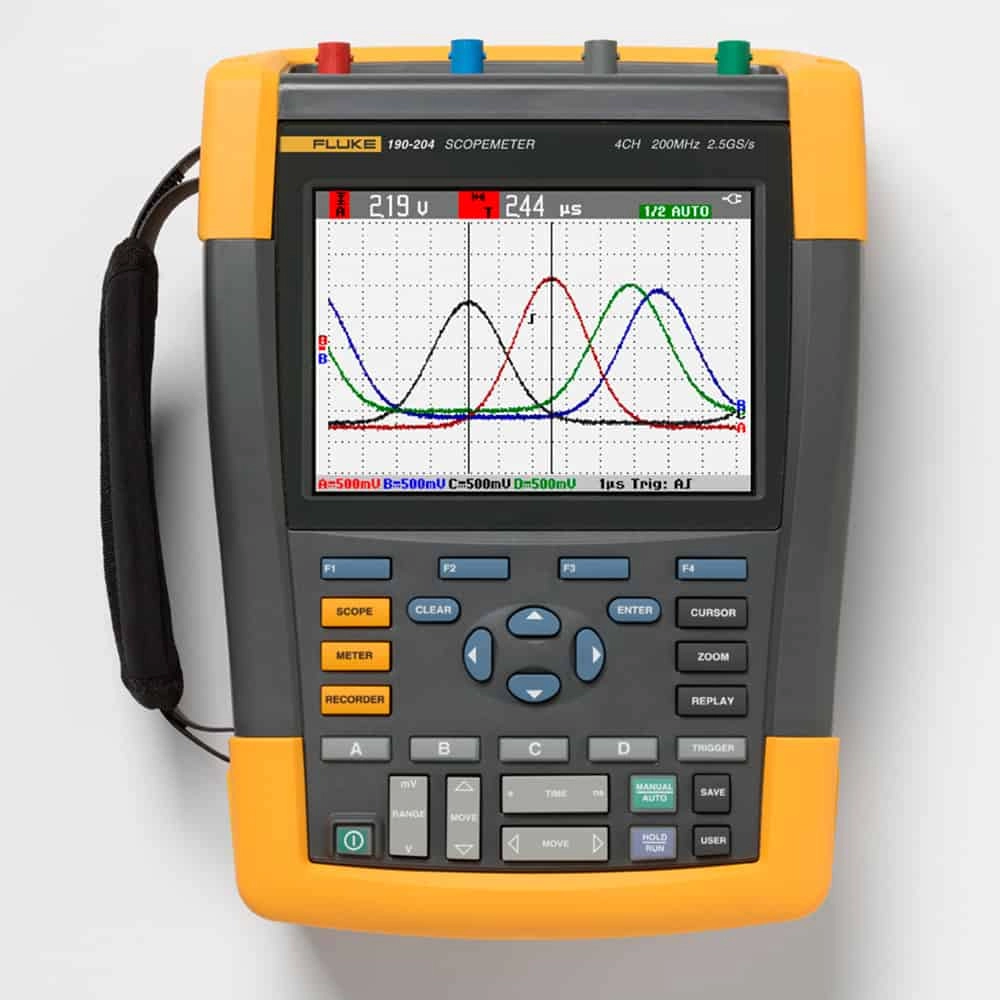

Fluke 190-204/S Scopemeter with FlukeView Software, 4 Channel, 200 MHz
Model # 190-204/SDiscontinued
Key Features
?
Question about this product?
Features
- Four electrically isolated inputs with SCC-290 Kit
- CAT III 1000 V / CAT IV 600 V safety rated
- 200 MHz bandwidth model
- 2.5 GS/s real time sampling
- Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
- Dedicated 5000 Count digital multimeter
- Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
- ScopeRecord roll mode, capture waveform sample data for up to 48 hours
- TrendPlot, trend measurement readings for up to 22 days
Technical Information
- Bandwidth200 MHz
- Number of channels4 channels
- Real-time sample rate2.5 GS/s
- Input VoltageCAT III 1000 V/CAT IV 600 V rated
- Voltage Range500 mV, 5 V, 50 V, 500 V, 1,000 V
- CurrentA dc, A ac, A ac+dc using an optional current clamp or shunt; Scaling factors: 0.1 mV/A, 1 mV/A to 100 V/A and 400 mV/A
- Input sensitivity2 mV-100 V/div
- Operating temperature0 °C to 40 °C Including Batteries
- Storage temperature-20 °C to +60 °C
- Operating altitudeUp to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V
- Size270 x 190 x 70 mm
Items Included
- Color ScopeMeter 200 MHz
- 4 channels
- DMM/Ext.input
- C290 Hard-shell Carrying Case
- SW90W FlukeView for ScopeMeter Test Tool
- Windows software
