Fluke 190-104 Scopemeter Oscilloscope, 4 Channel, 100 MHz

Features

• Two electrically isolated inputs
• CAT III 1000 V / CAT IV 600 V safety rated
• 100 MHz bandwidth model
• 1.25 GS/s real time sampling
• Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
• Dedicated 5000 Count digital multimeter
• Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
• ScopeRecord roll mode, capture waveform sample data for up to 48 hours
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)

Technical Information

• Bandwidth100 MHz
• Number of channels4 channels
• Real-time sample rate1.25 GS/s
• Input VoltageCAT III 1000 V/CAT IV 600 V rated
• Timebase rangeG5 ns - 2 min/div
• Input sensitivity2 mV-100 V/div
• Voltage Range500 mV, 5 V, 50 V, 500 V, 1,000 V
• CurrentA dc, A ac, A ac+dc using an optional current clamp or shunt; Scaling factors: 0.1 mV/A, 1 mV/A to 100 V/A and 400 mV/A
• Safety Rating1,000 V CAT III/600V CAT IV (EN61010-1)
• Operating temperature0 °C to 40 °C Including Batteries
• Storage temperature-20 °C to +60 °C
• Size270 x 190 x 70 mm

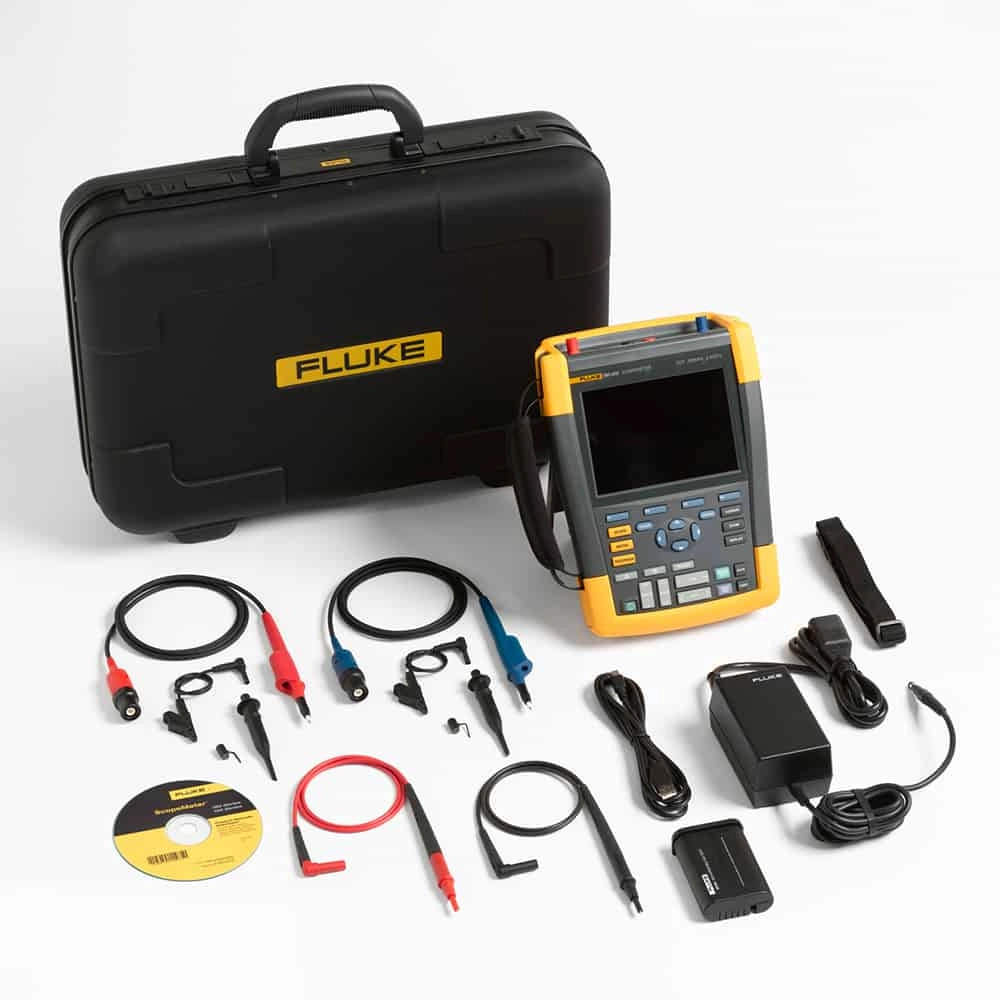

Items Included

• Color ScopeMeter 100 MHz
• 4 channels plus
• DMM/Ext.input

Downloads

DatasheetUser Manual
