Fluke 190-102 Scopemeter Oscilloscope, 2 Channel, 100Mhz

Features

• Features 100MHz bandwidth; 1.25GS/s compatible with CAT IV applications; 2 inputs.
• 2 Isolated Floating Channels
• 100V CAT III / 600V CAT IV
• Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
• Dedicated 5000 Count digital multimeter in 2-channel models
• Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
• IP-51 rated for dust and drip proof to withstand harsh environments
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• ScopeRecord roll mode, capture waveform sample data for up to 48 hours

Technical Information

• Real-time sample rate1.25 GS/s
• Number of channels2 channels
• Timebase range5 ns - 2 min/div
• Input sensitivity2 mV-100 V/div
• Operating temperature0 °C to 40 °C Including Batteries
• Storage temperature-20 °C to +60 °C
• Size270 x 190 x 70 mm

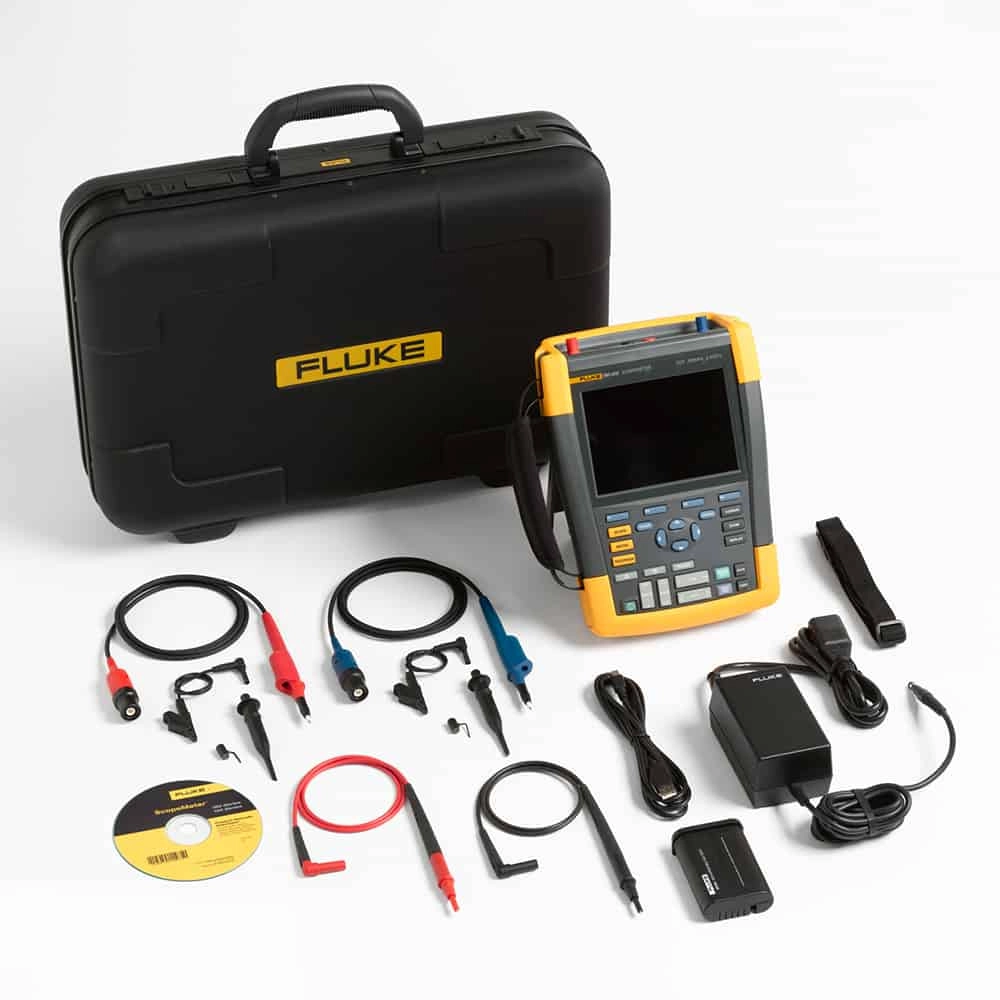

Items Included

• Color ScopeMeter
• 100 MHz
• 2 channels plus DMM/Ext.input with SCC-290 Kit
