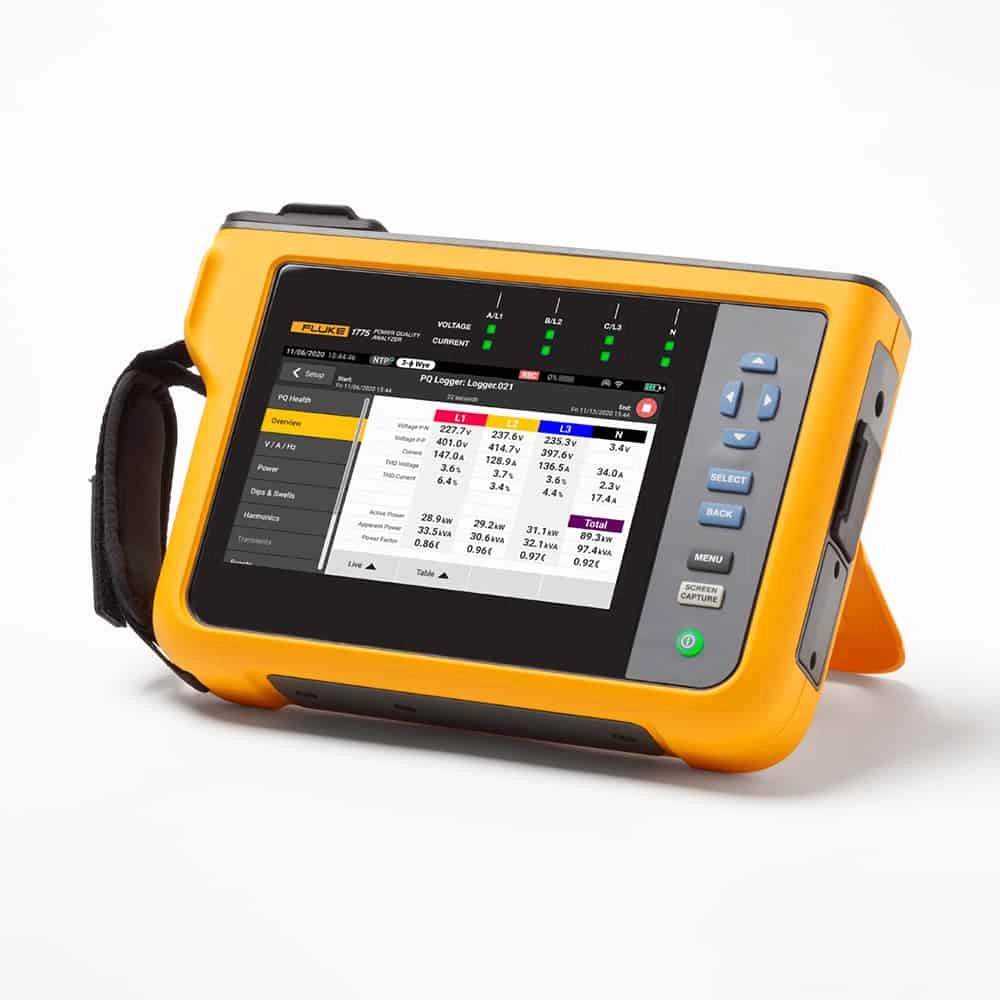

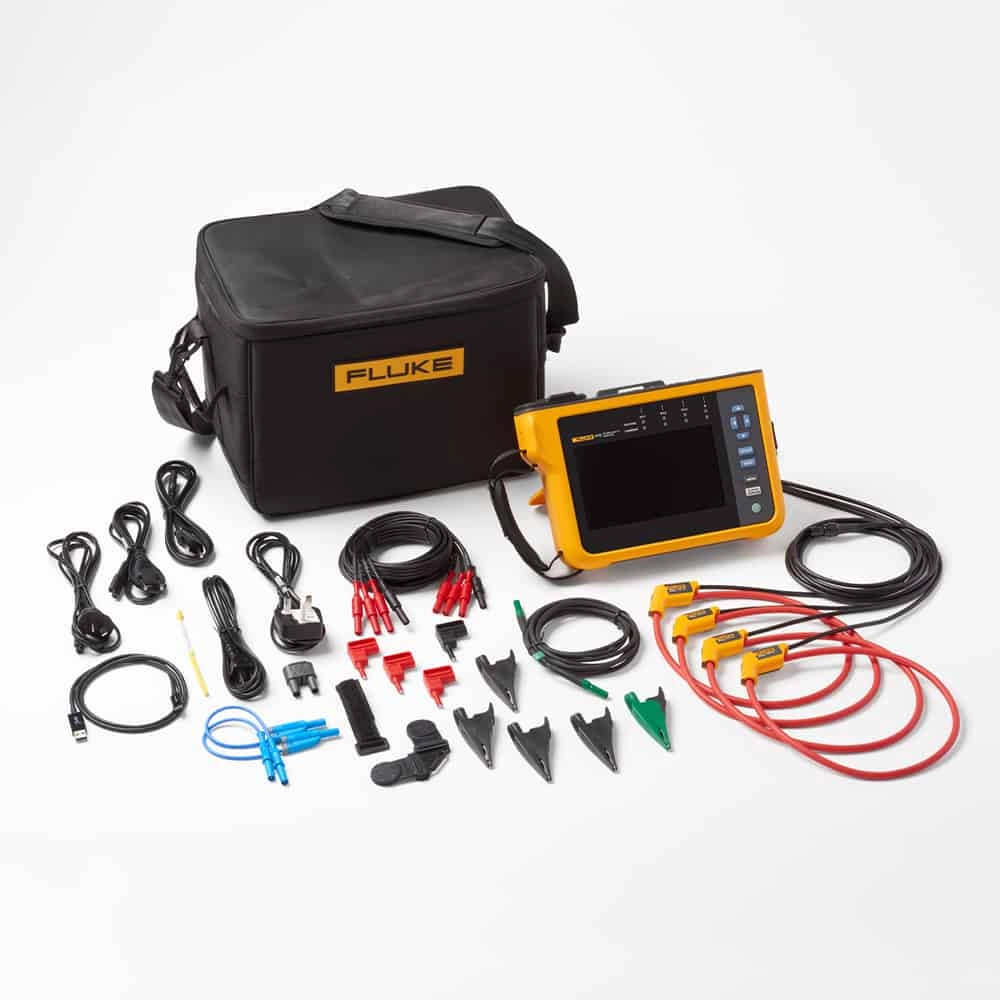

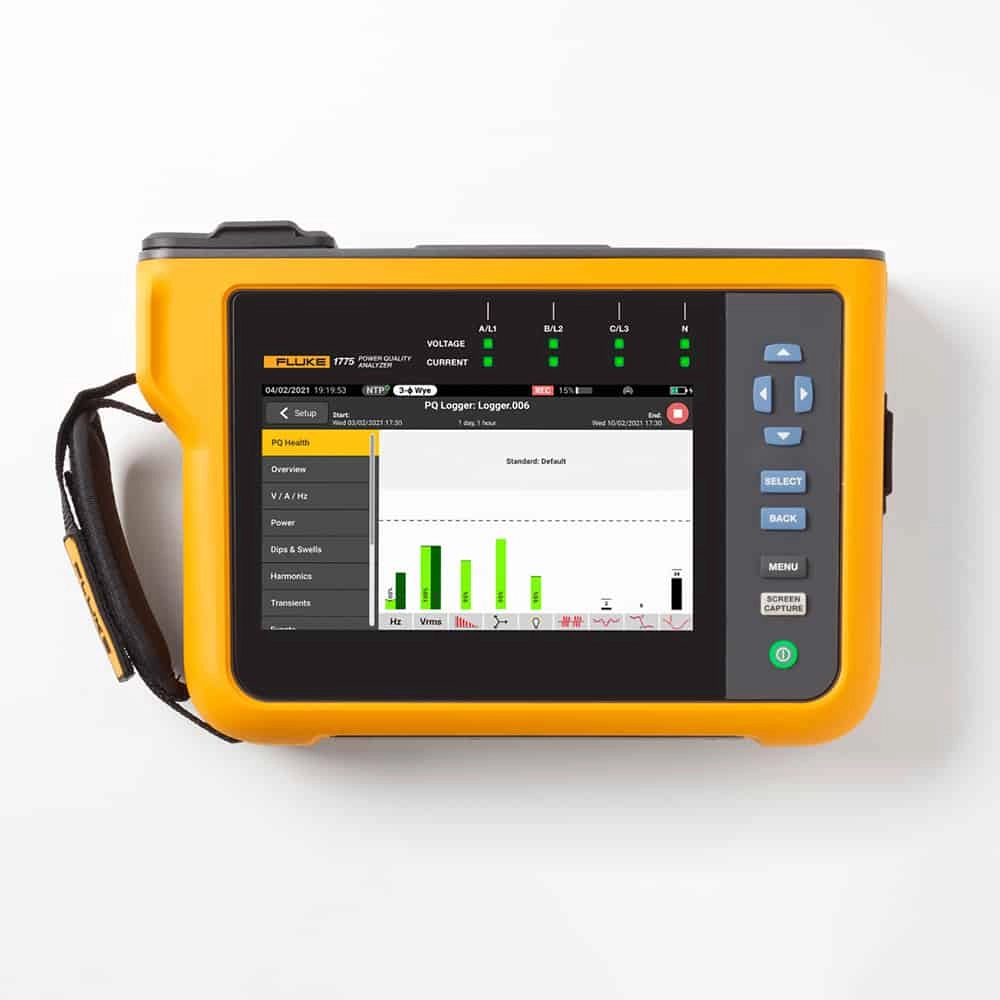

Fluke 1775 3-Phase Power Quality Analyzer, 1MS/s

Model #   1775

?

Question about this product?

Speak to an expert

Features

  • Automatically measure power and power quality parameters
  • At-a-glance power quality health for faster troubleshooting
  • Easily view V/A/Hz, power, dips, swells, and harmonics data
  • Capture high-speed transients up to 8 kV
  • Power directly from measurement circuit without a line cord
  • Energy surveys and load testing
  • Harmonic surveys
  • Nuisance circuit breaker tripping
  • Electric utility power quality surveys
  • Discovery of equipment failures caused by 8kV microsecond transients

Technical Information

  • Number of inputs4 inputs, 3 phases and neutral referenced to PE (5 connectors)
  • Measurement category1000 V CAT III / 600 V CAT IV
  • Maximum input voltage1000 V rms / 1000 V dc (1700 Vpk)
  • Input impedance10 MΩ between P-P and P-N, 5 MΩ between P-PE and N-PE
  • BandwidthDC to 30 kHz for PQ measurements, excluding transients
  • Resolution24-bit synchronous sampling
  • Sampling frequency80 kS/s at 50/60 Hz
  • Operating temperature range-10 °C to 50 °C
  • Storage temperature range-20 °C to 60 °C
  • IP RatingIEC 60529: IP50
