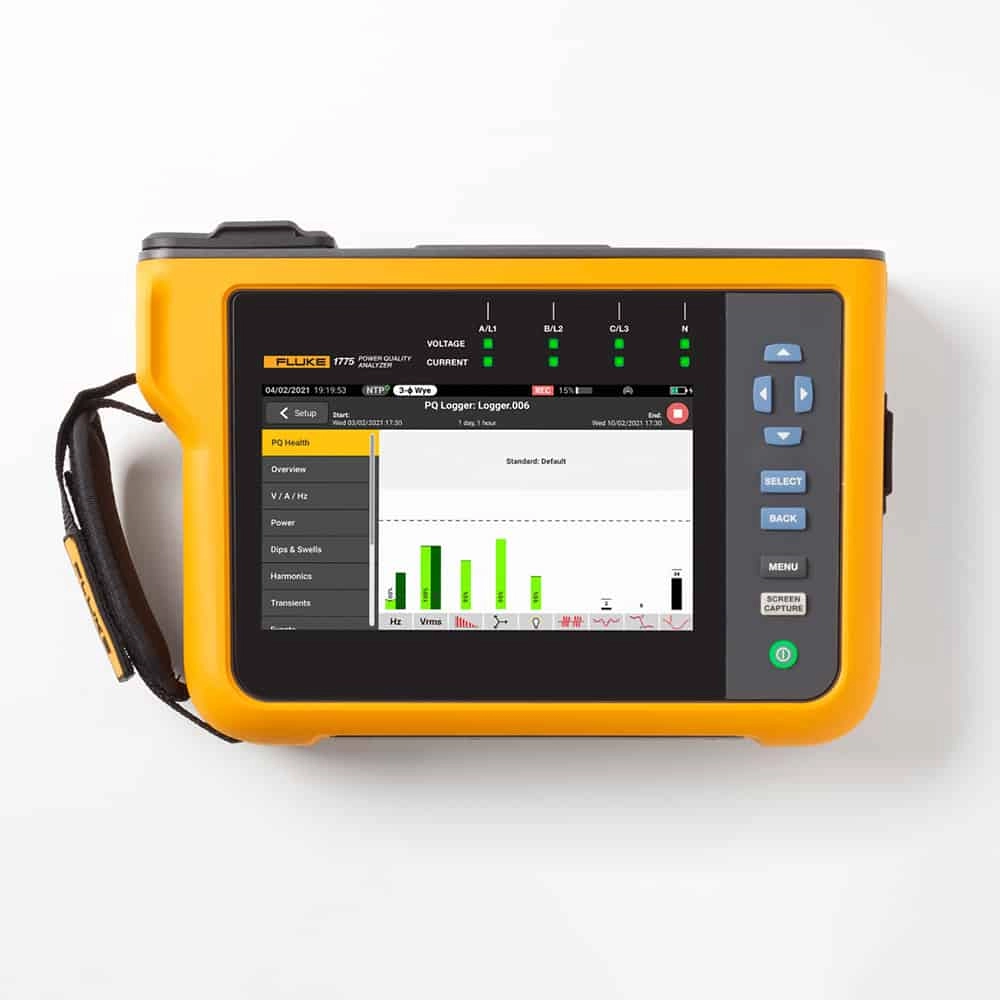

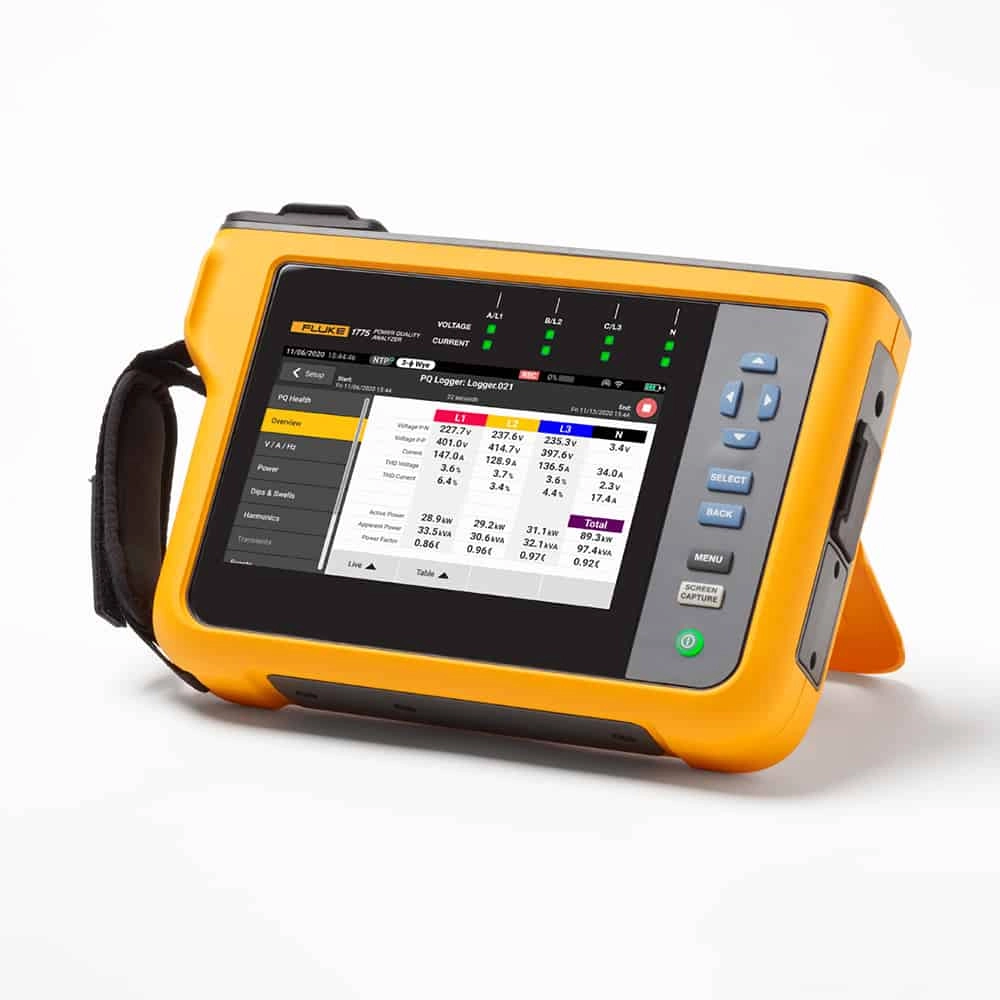

Fluke 1773 3-Phase Power Quality Analyzer

Features

• Automatically measure power and power quality parameters
• At-a-glance power quality health for faster troubleshooting
• Easily view V/A/Hz, power, dips, swells, and harmonics data
• Capture high-speed transients up to 8 kV
• Power directly from measurement circuit without a line cord
• Energy surveys and load testing
• Harmonic surveys

Technical Information

• Number of inputs4 inputs, 3 phases and neutral referenced to PE (5 connectors)
• Measurement category1000 V CAT III / 600 V CAT IV
• Maximum input voltage1000 V rms / 1000 V dc (1700 Vpk)
• Input impedance10 MΩ between P-P and P-N, 5 MΩ between P-PE and N-PE
• BandwidthDC to 30 kHz for PQ measurements, excluding transients
• Resolution24-bit synchronous sampling
• Sampling frequency80 kS/s at 50/60 Hz
• Operating temperature range-10 °C to 50 °C
• Storage temperature range-20 °C to 60 °C
• IP RatingIEC 60529: IP50
