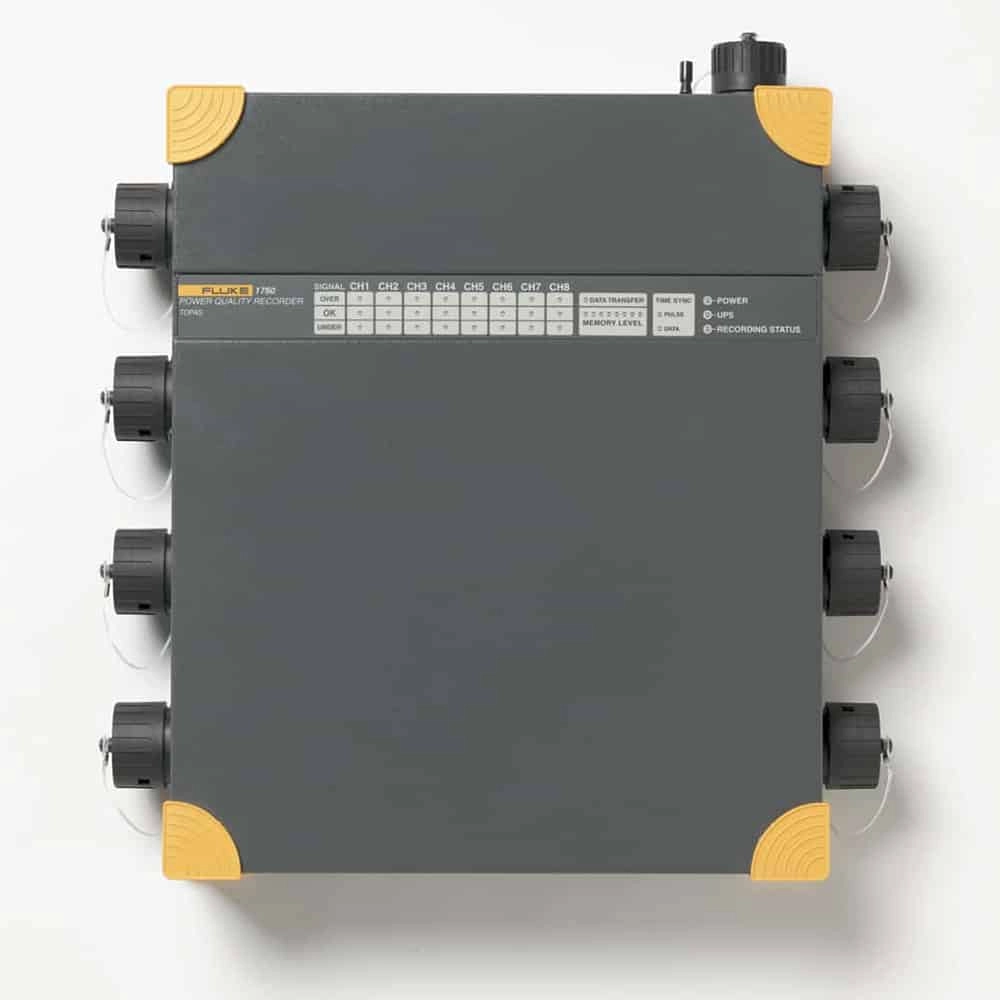

Fluke 1760TR Three-Phase Power Quality Recorder
Model # 1760TRKey Features
?
Question about this product?
Features
- Conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
- Correlate data with events or datasets from other instruments with precision
- Flexible and fully configurable thresholds and scale factors allow user to pinpoint specific issues by defining the detailed criteria for detection and recording of disturbances.
- Records the beginning and end of interruptions and outages to help determine the cause
- 10 MHz, 6000 Vpk waveform capture shows a detailed picture of even the shortest event
- 2 GB data memory enables detailed, simultaneous recording of numerous power parameters for long periods of time
- Included comprehensive software provides trend diagrams for root cause analysis, statistical summaries, report writing and real-time data monitoring in the online mode
- Plug and play allows quick setup with automatic sensor detection
- Insulated housing and a solid state design with no rotating components enable reliable testing under nearly any conditions
Technical Information
- Operating temp. range0°C to +50°C; 32°F to +122°F
- Working temp. range-20°C to +50°C; -4°F to +122°F
- Storage temp. range20°C to +60°C; -4°F to 140°F
- Reference temperature23°C ± 2 K; 74°F ± 2 K
- Environment temp.23°C ± 2 K; 74°F ± 2 K
- Power supply230 V ± 10%
- Power frequency50 Hz / 60 Hz
- Data memory2 GB Flash memory depending on model
- Dimensions (H x W x D)325 x 300 x 65 mm (2.8 x 11.8 x 2.6 in)
Items Included
- 8 input-channels (4 currents/4 voltages or 8 voltages)
- Internal Flash-memory 2 GB
- PQ Analyze software on CD-ROM
- Ethernet cable for network connection (1)
- Crosslink Ethernet cable for direct PC connection (1)
- Mains cable (1)
- Operational manuals
- Carrying bag
- Fast transient analysis up to 10 MHz
- Voltage probes, qty 4 (600 V for INTL set, 1000 V for US set)
- Current probes, qty 4 (Dual-range flexible current probes 1000 A / 200 A AC)
- GPS time sync receiver
