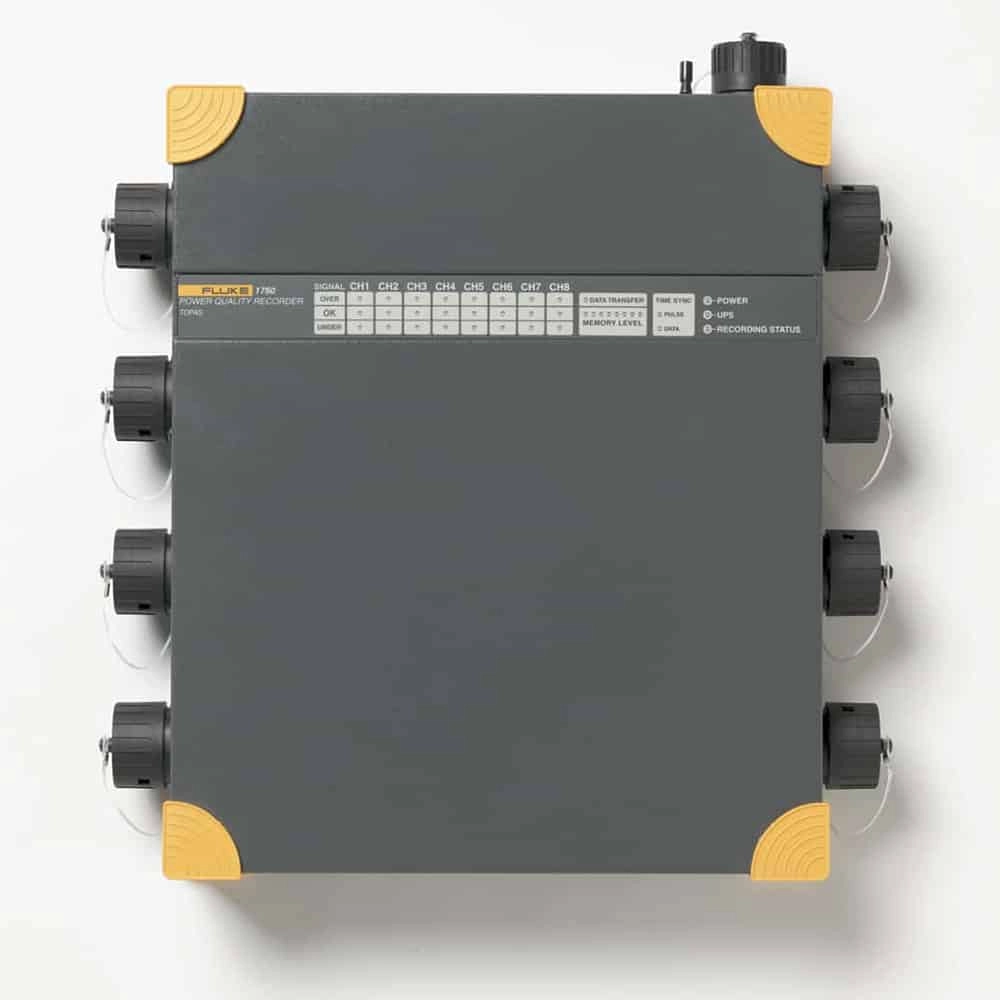

Fluke 1760 Three-Phase Energy Logger

Features

• Three-phase power quality recorder fully compliant to IEC 61000-4-30 Class-A and consistent with compliance testing
• Uses GPS time synchronization to correlate data with events or datasets from other instruments with precision
• Offers flexible and fully configurable thresholds and scale factors to allow users to define detailed criteria for detecting and recording disturbances
• Perform high-speed transient analysis and uncover root cause of equipment malfunction for later mitigation and predictive maintenance.
• The fast transient option, with its 6000 V measurement range, allows capture of very short impulses such as capacitor switching and lightning strikes.
• Allows complete measurements on dissimilar power systems.
• Assess baseline power quality to validate compatibility with critical systems before installation and verify electrical system capacity before adding loads.
• Provides continuous recording of voltage, current, power P, Q, S, power factor, kWh, flicker, unbalance, frequency, voltage and current harmonics to the 50th/Interharmonics, THD, and mains signaling
• Includes comprehensive software that provides trend diagrams for root cause analysis, statistical summaries, report writing, and real-time data monitoring in the online mode
• Allows quick plug and play setup with automatic sensor detection. Sensors are instrument powered, eliminating the need for batteries
• Delivers reliable testing under nearly any conditions with rugged insulated housing and a solid state design that has no rotating components

Technical Information

• Quality systemdeveloped, manufactured as per ISO 9001:2000
• Operating temp. range0°C to +50°C; 32°F to +122°F
• Operating temp. range0°C to +50°C; 32°F to +122°F
• Storage temp. range20°C to +60°C; -4°F to 140°F
• Reference temperature23°C ±2 K; 74°F ±2 K
• Climatic classB2 (IEC 654-1), -20°C to +50°C; -4°F to +122°F
• Environment temperature23°C ±2 K ; 74°F ±2 K
• Power supply230 V ±10%
• AC Range83 V to 264 V, 45 to 65 Hz
• Dimensions (H x W x D)325 x 300 x 65 mm; 2.8 x 11.8 x 2.6 in

Items Included

• Input-channels (4 currents/4 voltages or 8 voltages)
• Internal Flash-memory 2 GB
• PQ Analyze software on CD-ROM
• Ethernet cable for network connection (1)
• Crosslink Ethernet cable for direct PC connection (1)
• Mains cable (1)
• Operational manuals
• Carrying bag
• Voltage probes qty 4 (600 V for INTL set 1000 V for US set)
• Current probes qty 4 (Dual-range flexible current probes 1000 A / 200 A AC)
• GPS time sync receiver
