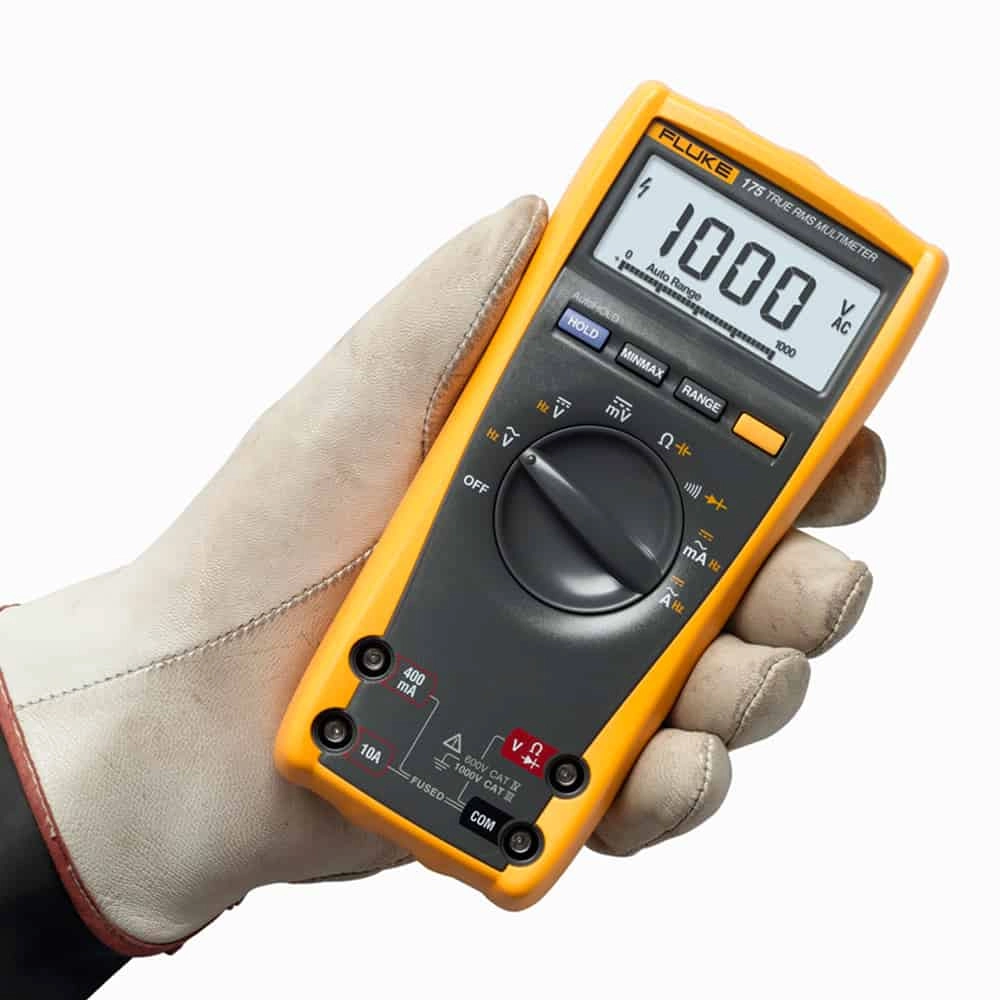

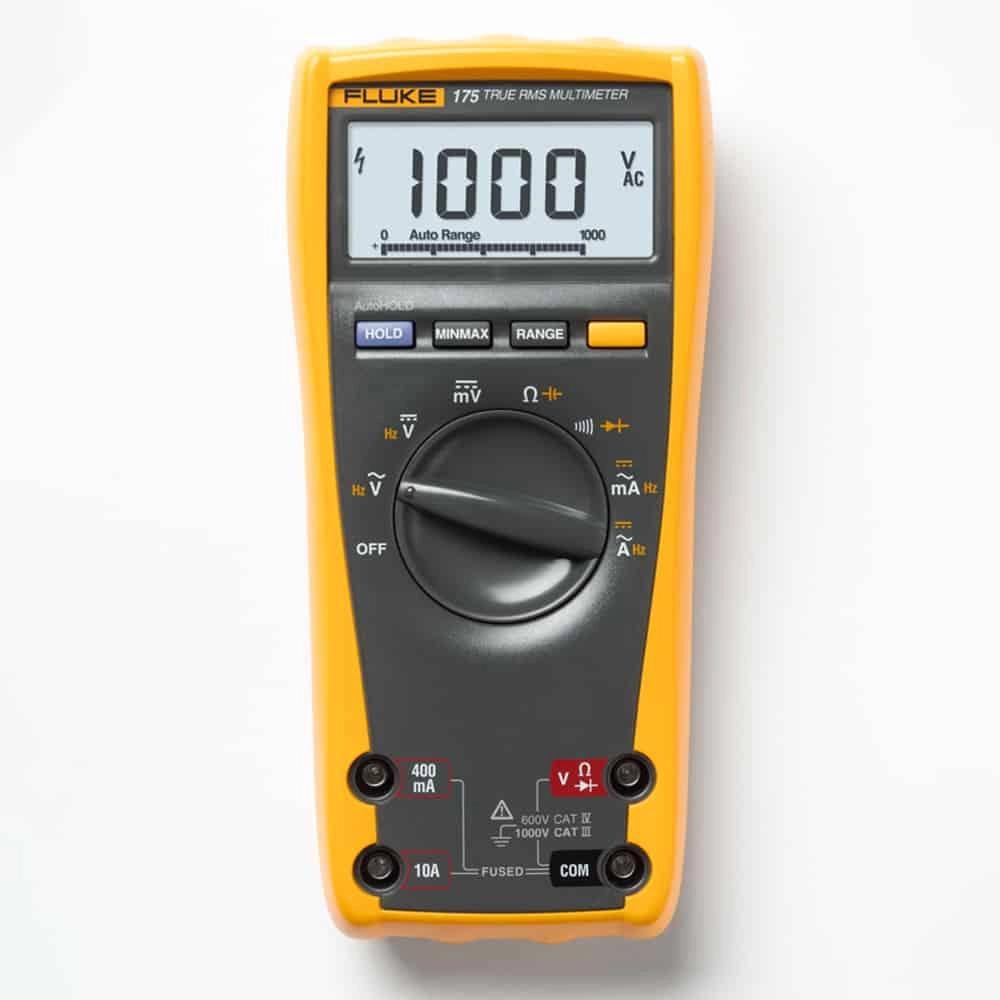

Fluke 175 True RMS Digital Multimeter, CAT IV 600V, 10A

Features

• True RMS voltage and current measurements
• 6000 count resolution
• Manual and automatic ranging
• Display Hold and Auto Hold
• Allows closed-case calibration through front panel
• Includes ergonomic case with integrated protective holster

Technical Information

• DC voltage1000V
• AC voltage1000V
• DC current10A
• AC current10A
• Resistance50MΩ
• Capacitance10000μF
• Frequency100kHz
• Safety RatingCAT III 1000V, CAT IV 600V
• Operating temperature-10°C to +50°C
• Storage temperature-30°C to +60°C
• Humidity (without condensation)0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C)
• Size43 x 90 x 185 mm
• Battery lifeAlkaline ~200 hours typical, without backlight

Items Included

• Installed 9V battery
• Test leads
• Users manual

Downloads

Datasheet
