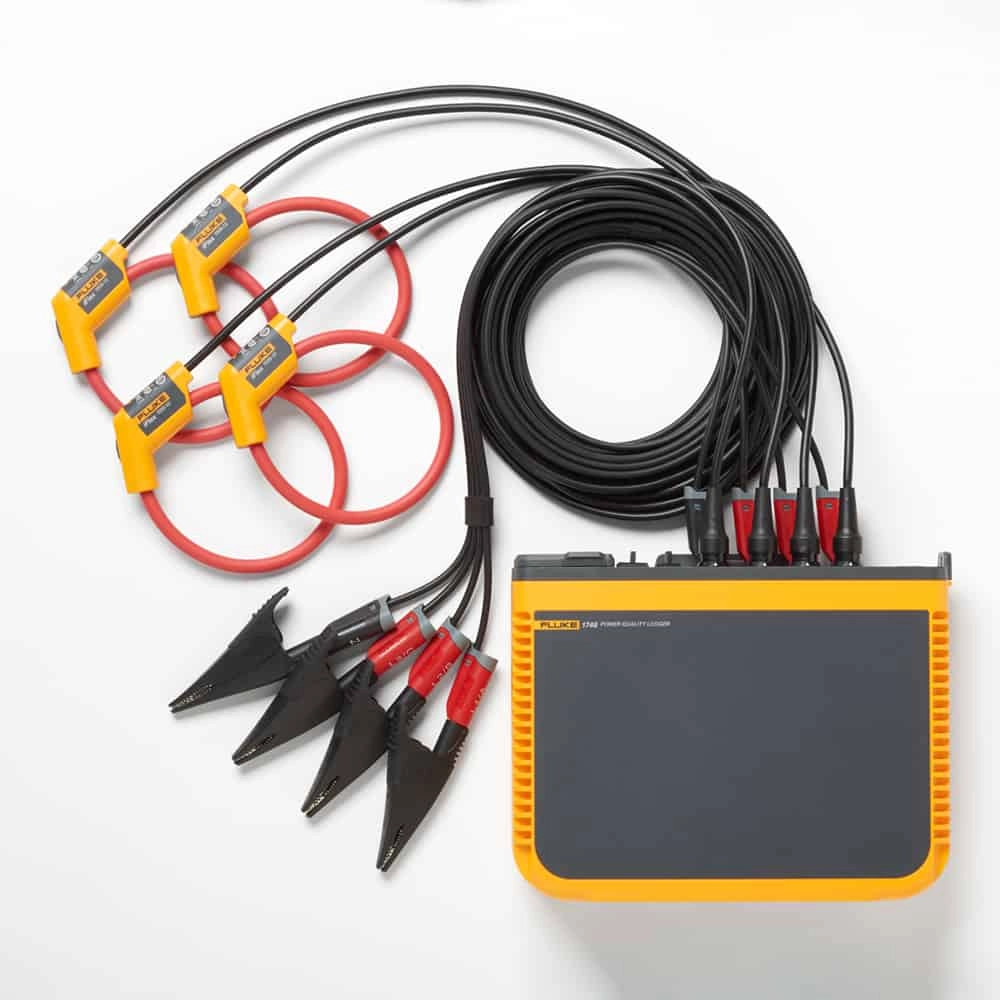

Fluke 1748/15/INTL Power Quality Logger with 1500A iFlex 60 cm, Intl

Features

• Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
• Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.'
• Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
• Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
• Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord
• Includes event waveform capture and RMS event profile, along with date, timestamp and severity information to help pinpoint potential root causes of power quality issues.

Technical Information

• Voltage range100 V to 500 V using safety plug input when powering from the measurement circuit 100 V to 240 V MA-C8 and using standard power cord (IEC 60320 C7)
• Power consumptionMaximum 50 VA (max. 15 VA when powered using MA-C8 adapter)
• Efficiency68.2% (in accordance with energy efficiency regulations)
• Maximum no-load consumption< 0.3 W only when powered using IEC 60320 input
• Mains power frequency50/60 Hz ±15%
• Input signal frequency50/60 Hz (42.5 to 69 Hz)
• Operating temperature-25 °C to +50 °C (-13 °F to 122 °F)1
• Storage temperature without battery-25 °C to +60 °C (-13 °F to 140 °F)
• Storage temperature with battery-20 °C to +50 °C (-4 °F to 122 °F)
• Operating altitude2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV)
• Dimensions23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)
