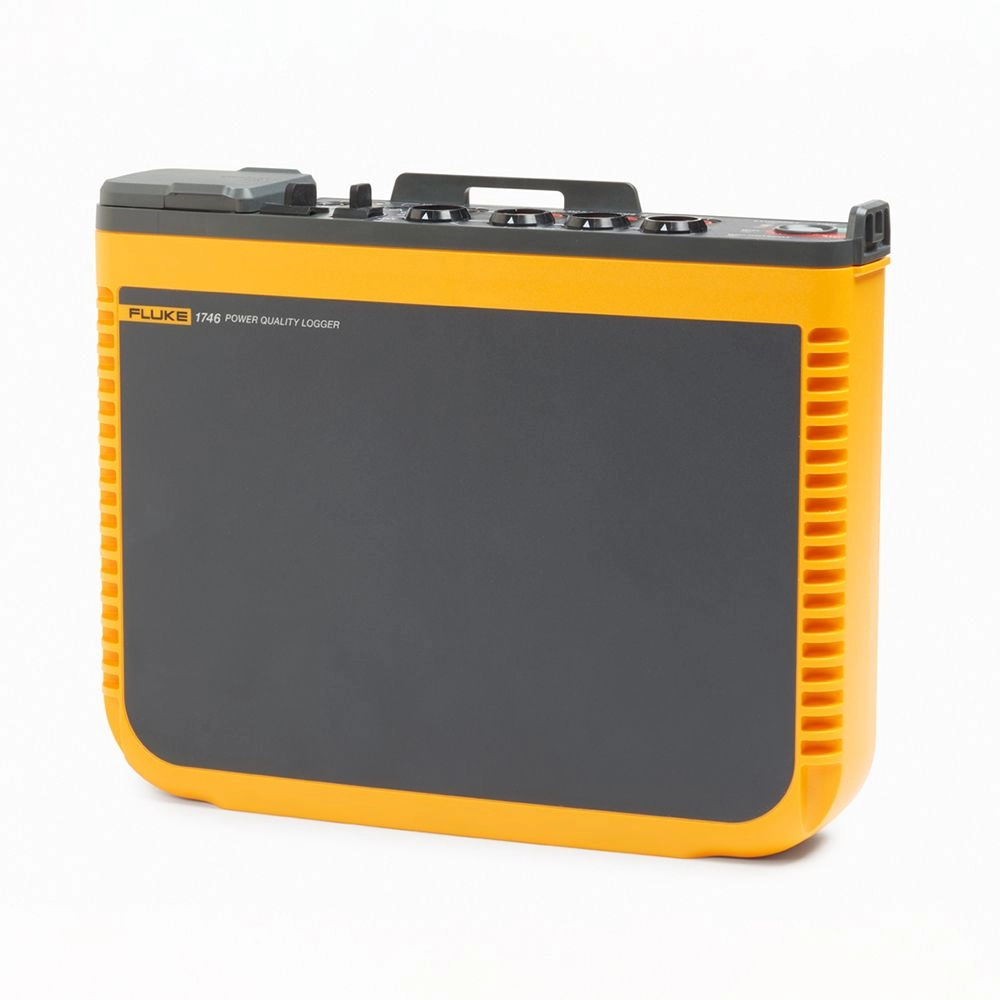

Fluke 1746/30/INTL Power Quality Logger with 3000A iFlex 60 cm, Intl

Features

• Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
• Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.'
• Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
• Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
• Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord

Technical Information

• Voltage range (Using safety plug)100 V to 500 V
• Voltage range (Using standard power cord)100 V to 240 V
• Power consumptionMaximum 50 VA
• Efficiency≥ 68.2%
• Maximum no-load consumption< 0.3 W
• Mains power frequency50/60 Hz ±15%
• BatteryLi-ion 3.7 V, 9.25 Wh (replaceable)
• Resolution16-bit synchronous sampling
• Sampling frequency10.24 kHz at 50/60 Hz, synchronized to mains frequency

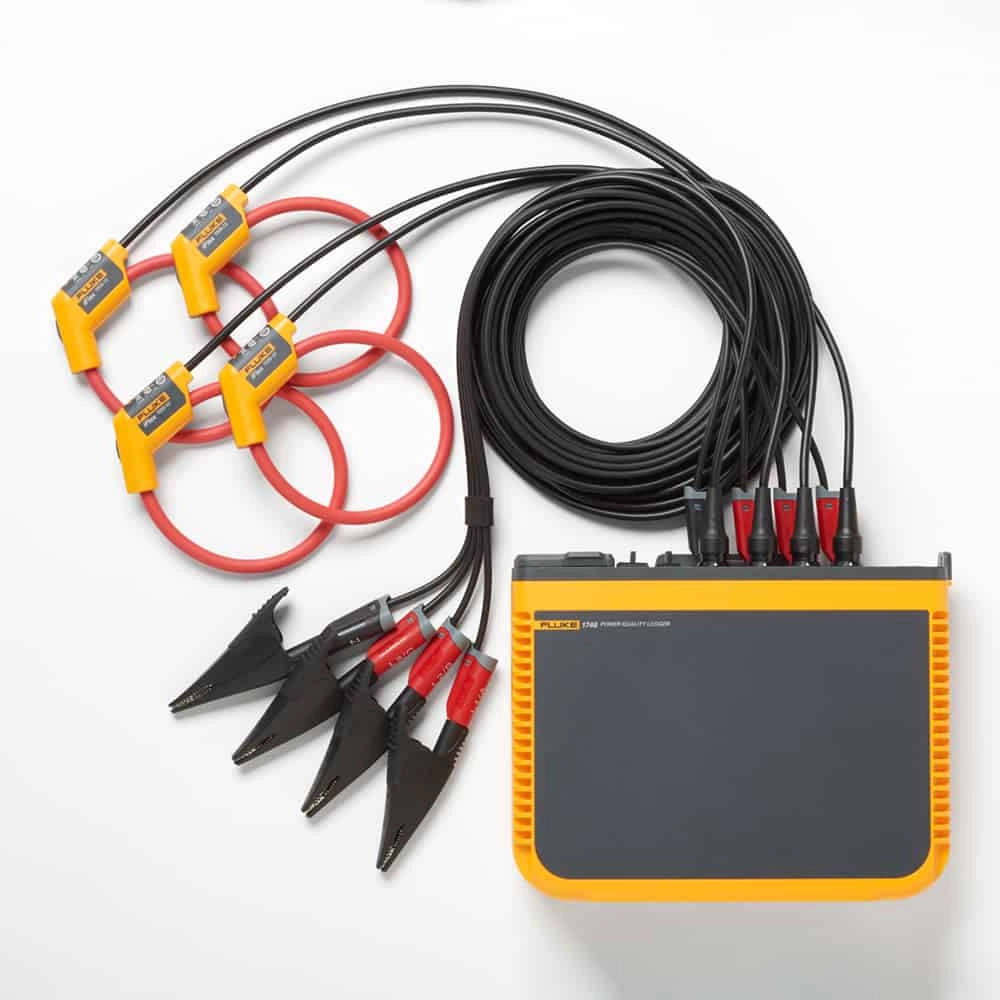

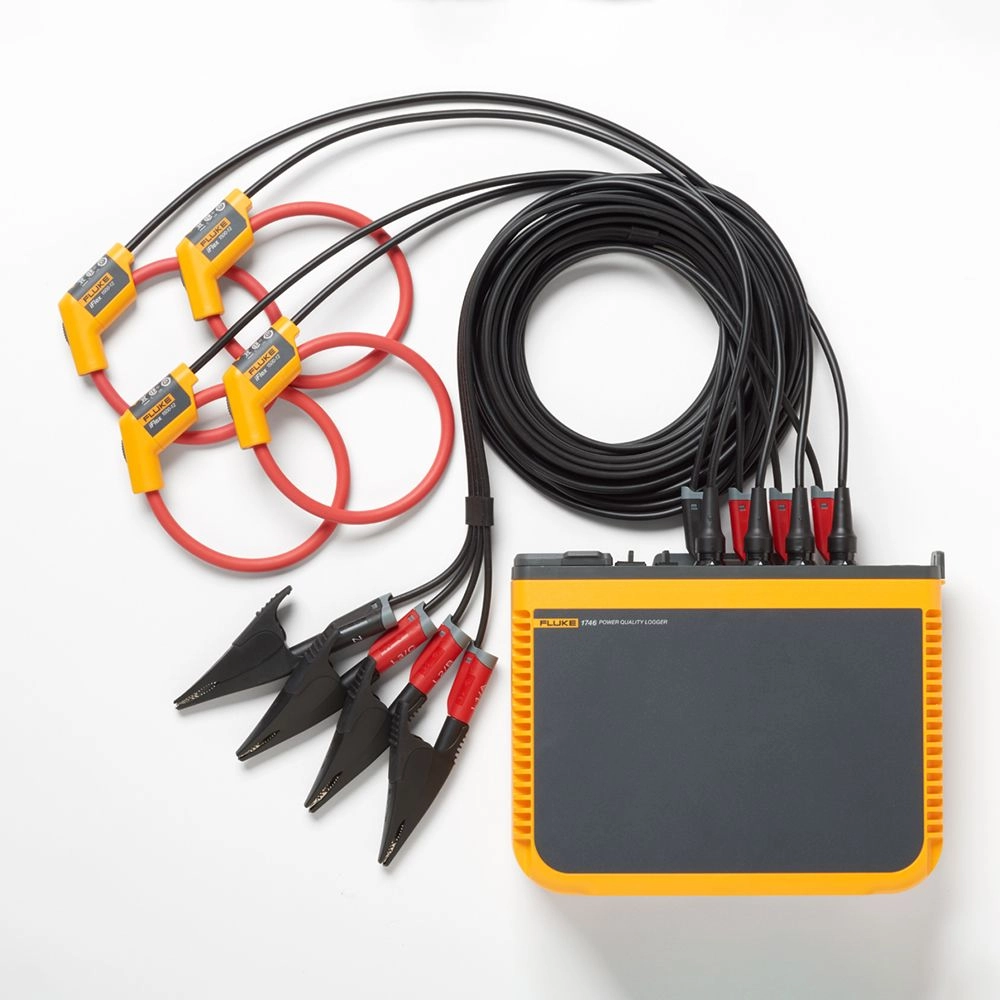

Items Included

• Fluke 1746 Logger
• Soft storage bag/case
• Voltage test lead (3-phase + N)
• Alligator clips (blue) (x2)
• Alligator clips (black) (x4)
• Set of cable markers
• Mains power cable
• Mains adapter MA-C8
• Set of 2 test leads (stack and non-stackable, blue, 7 in.)
• Set of 2 test leads (non-stackable, blue, 79 in.)
• USB Cable
• Magnet probes (x4)
• i17xx-flex3000IP 24 inch current probes (x4)
• WiFi/BLE-to-USB Adapter
