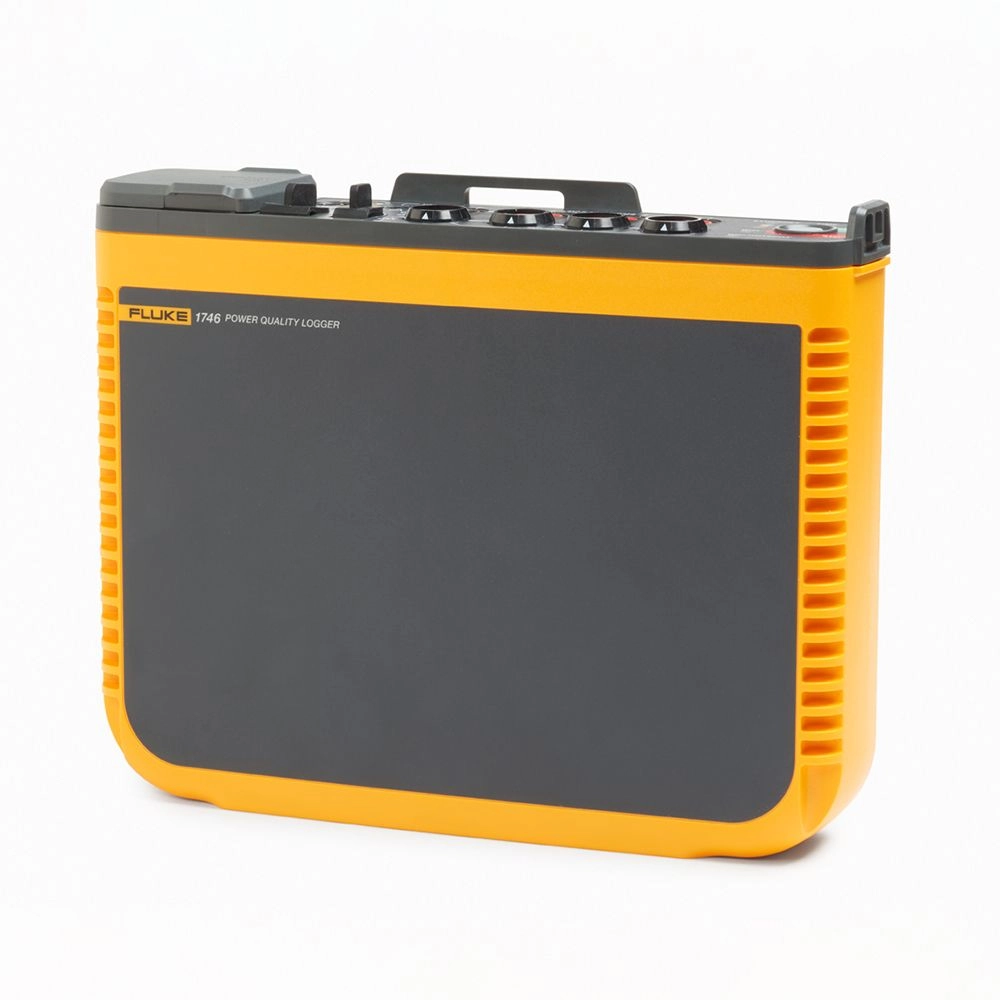

Fluke 1746/15/INTL Power Quality Logger With 60 cm 1500A iFlex, Intl

Features

• Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
• Meets the rigorous IEC 61000-4-30 Class A Edition 3 standard for ‘Testing and measurement techniques–Power quality measurement methods.'
• Create standardized reports according to commonly used standards like EN 50160, IEEE 519, GOST 33073 or export data in PQDIF or NeQual compatible format for use with third party software using the included Fluke Energy Analyze Plus Software.
• Measures harmonics and interharmonics for voltage and current, also includes unbalance, flicker and rapid voltage changes.
• Powers directly from the measured circuit with the widest available range for a power quality logger automatically going from 100 V to 500 V or from a wall line cord

Technical Information

• Voltage range100 V to 500 V using safety plug input when powering from the measurement circuit
• Power consumptionMaximum 50 VA (max. 15 VA when powered using MA-C8 adapter)
• Efficiency68.2% (in accordance with energy efficiency regulations)
• Mains power frequency50/60 Hz ±15%

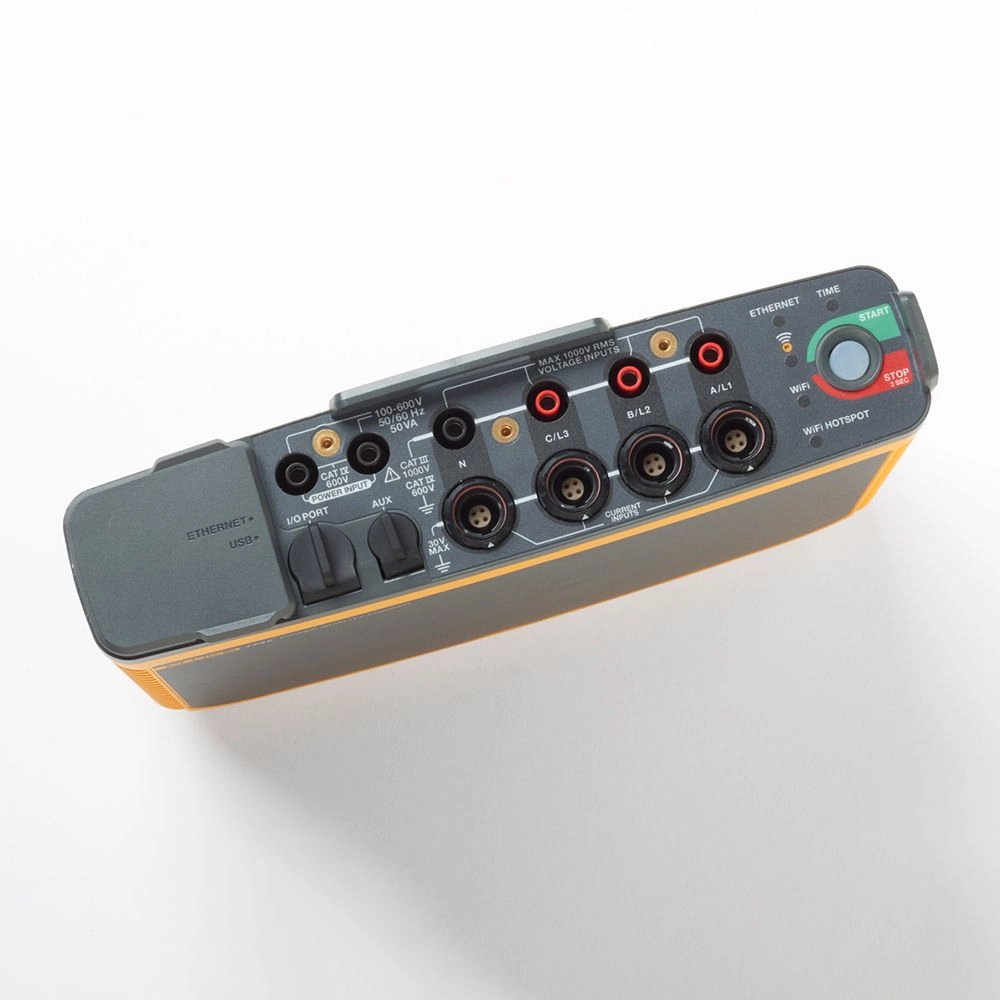

• Number of inputs4 (3 phases referenced to neutral)
• Maximum input voltage1000 Vrms, CF 1.7
• Bandwidth42.5 Hz to 3.5 kHz
• Operating temperature-25 °C to +50 °C (-13 °F to 122 °F)1
• Storage temperature without battery-25 °C to +60 °C (-13 °F to 140 °F)
• Storage temperature with battery-20 °C to +50 °C (-4 °F to 122 °F)
• Dimensions23.0 cm x 18.0 cm x 5.4 cm (9.1 in x 7.1 in x 2.1 in)

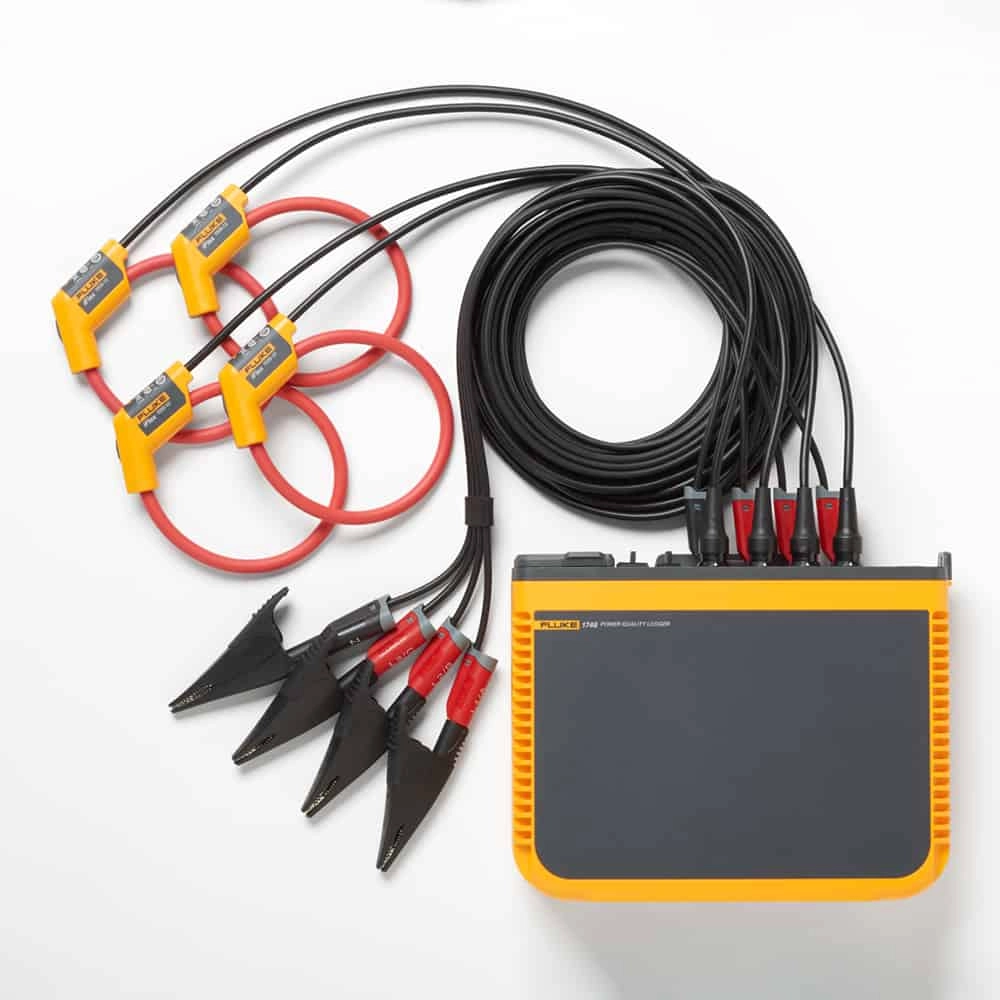

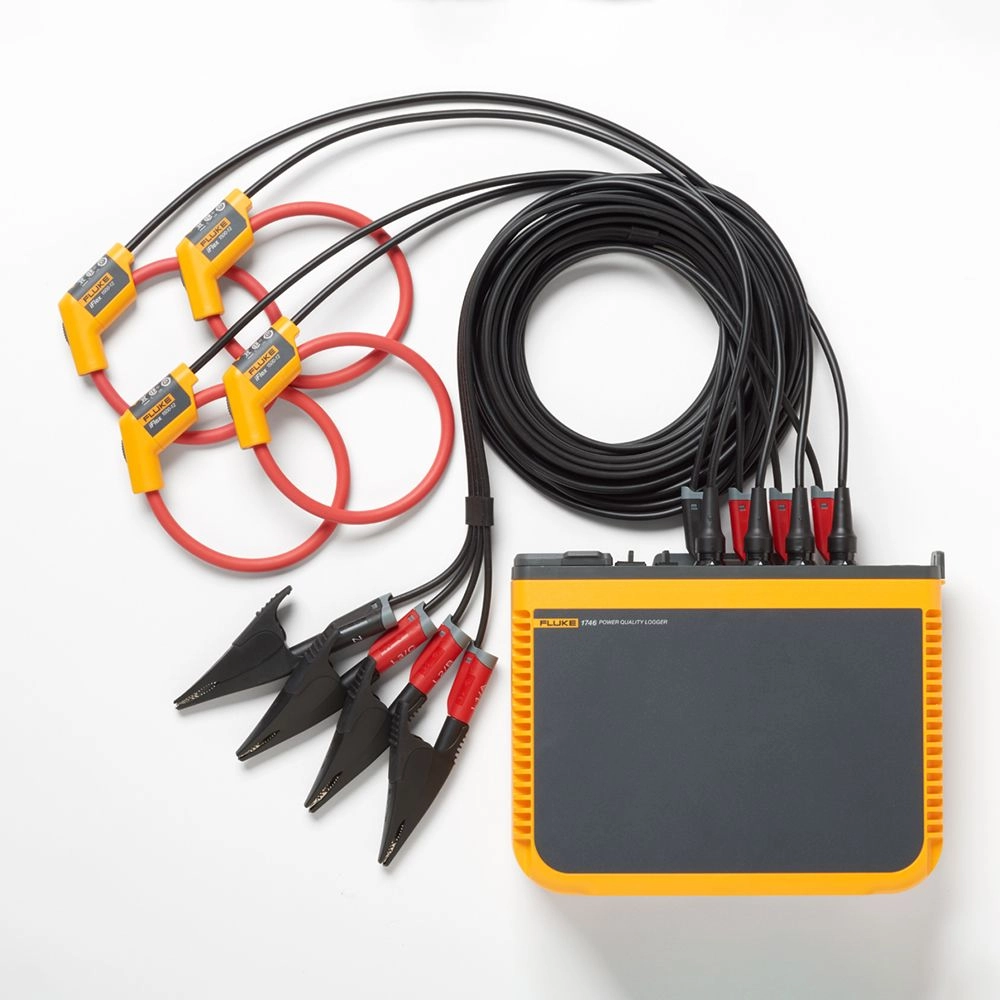

Items Included

• Fluke 1746 Logger
• Soft storage bag/case
• Voltage test lead (3-phase + N)
• Alligator clips (blue) (x2)
• Alligator clips (black) (x4)
• Set of cable markers
• Mains power cable
• Mains adapter MA-C8
• Set of 2 test leads (stack and non-stackable, blue, 7 in.)
• Set of 2 test leads (non-stackable, blue, 79 in.)
• USB Cable

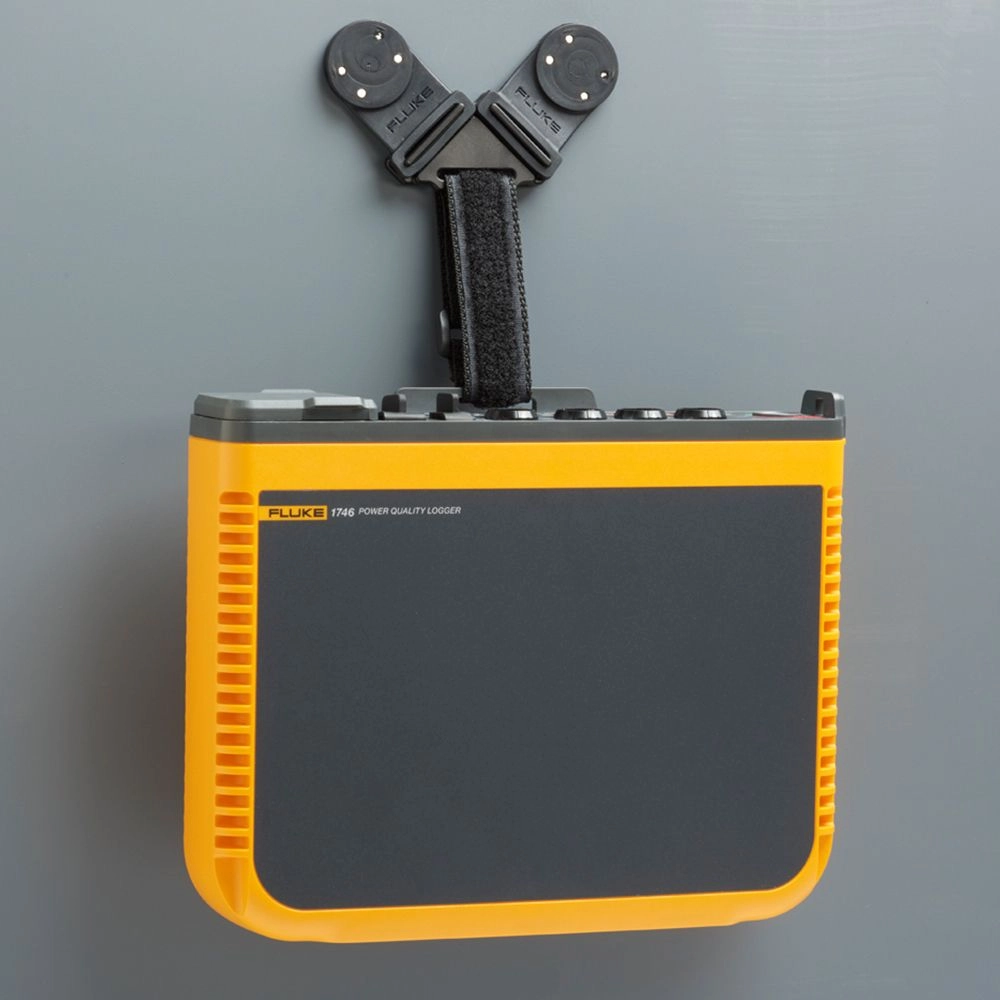

• Magnet probes (x4)
• i17xx-flex1500IP 24 inch current probes (x4)
• WiFi/BLE-to-USB Adapter
